Description

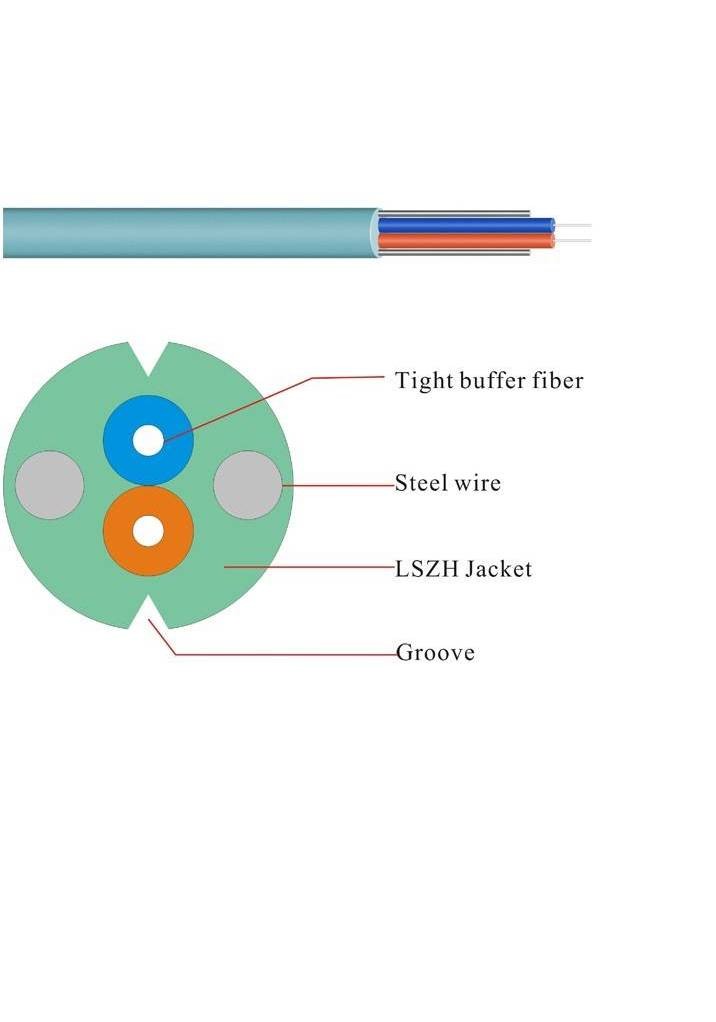

QYY- GJXJH indoor fiber optic cable LSZH
Features：
. Unique bend intensive fiber makes for more widely bandwidth and stronger data transmitting
. Paralle; steel strength member for better strength tensile and protecting the fiber
. Simple cable design,light weight and useful.
. special tube filling compound ensure a critical protection of fiber.
. Single steel wire or stranded steel wires together with the strength member , ensure good tensile properties of the fiber cable;
. Unique groove design, easy stripping, good for junction, installation and protection
. LSZH cable jacket of environmental friendly
Parameters：
|
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
|
Attenuation |
@850nm |
|
|
≤3.5B/km |
≤3.5B/km |
|
@1300nm |
|
|
≤1.5B/km |
≤1.5B/km |
|
|
@1310nm |
≤0.45/km |
|
|
|
|
|
@1550nm |
≤0.30/km |
≤0.23/km |
|
|
|
|
Bandwidth |
@850 |
|
|
≥200MHZ·km |
≥200MHZ·km |
|
@1300 |
|
|
≥500MHZ·km |
≥500MHZ·km |
|
|
Numerial Aperture |
|
|
|
0.200±0.015NA |
0.275±0.015NA |
|
Cable Cut-off Wavelength |
|
≤1260nm |
≤1480nm |
|
|
|
Fiber Count |
Cable Diameter |
Cable Weight |
Tensile Strength Long/Short Term N |
Crush Resistance |
Bending Radius |
|
2 |
3.0 |
16 |
100/200 |
100/300 |
15D/30D |
