Description

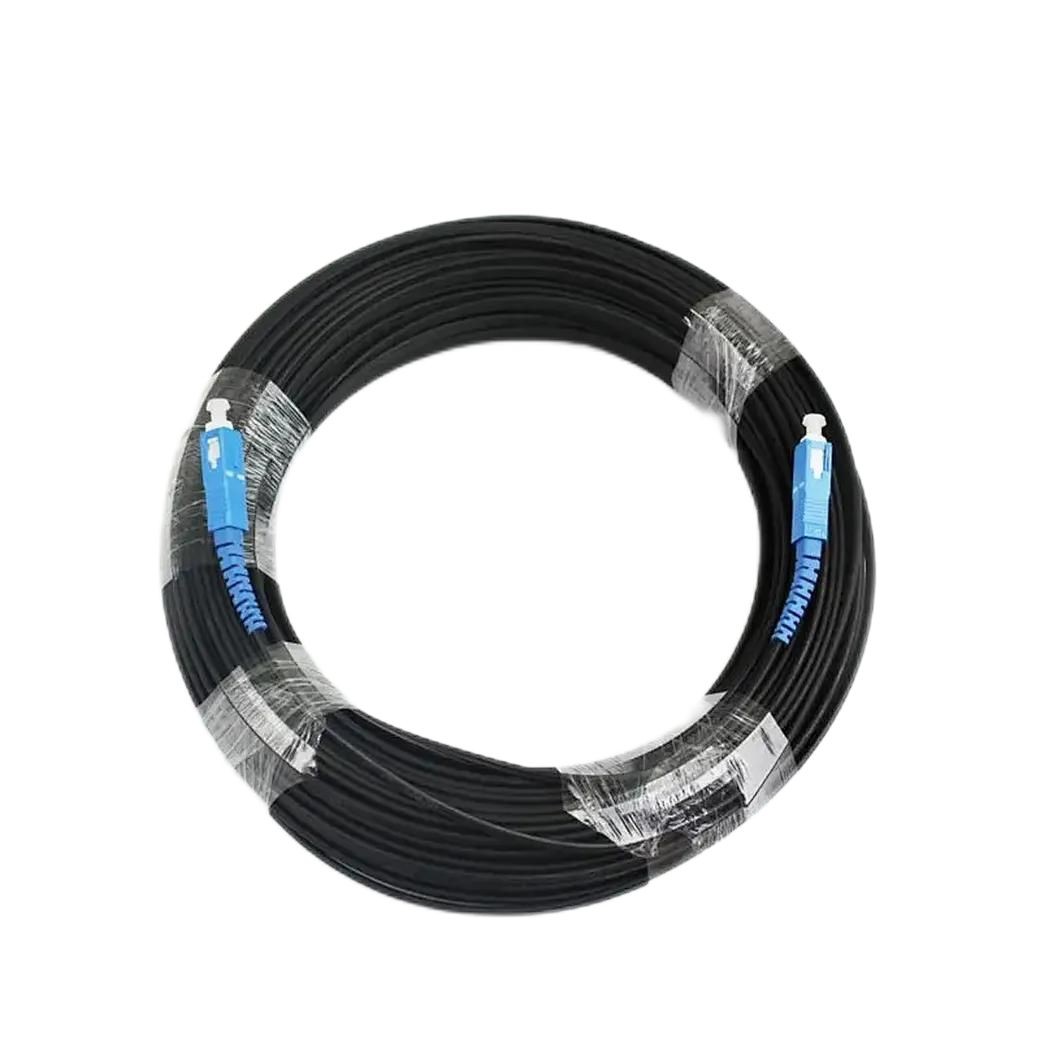

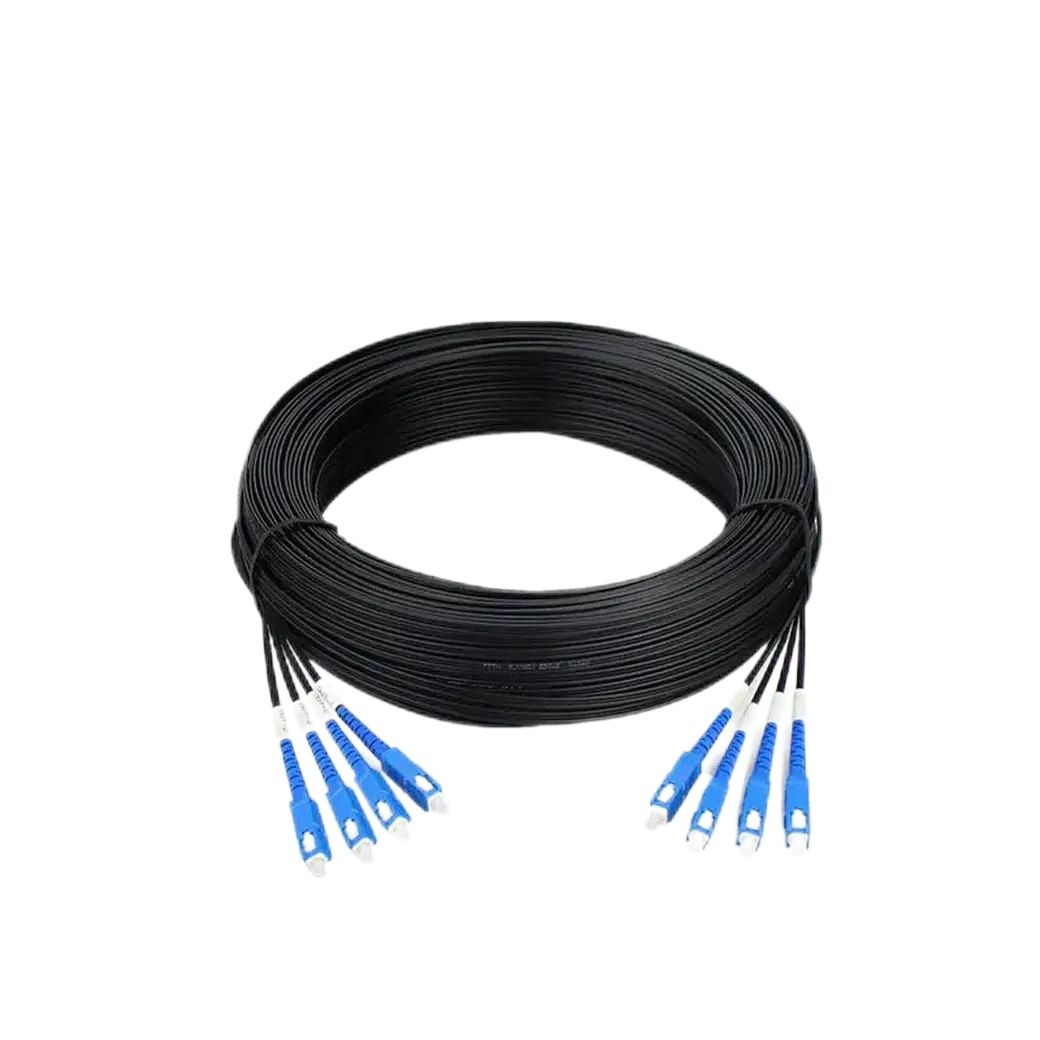

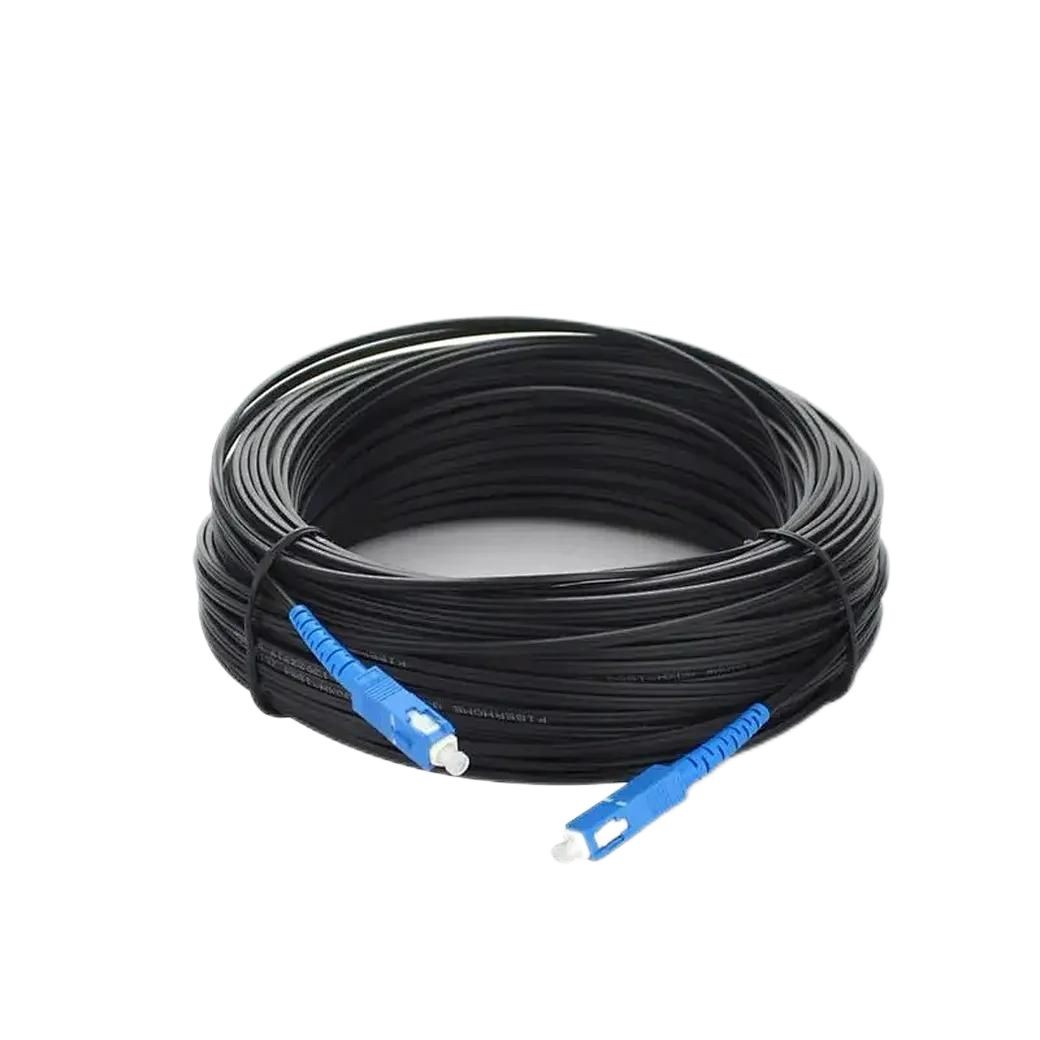

QYY- G652D G657A FTTH Drop Cable Patch Cord 1m 2m 3m
Feature：
. Low insertion loss
. High return loss
. Excellent Repeatability, exchangeability, wearability and stability.
. Environmentally Stable
Parameters：
Type
Standard,Master
Style
LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC
Fiber
Cable
Polishing Manner
UPC,SPC,APC (8°& 6°)
Insertion Loss
Repeatability
±0.1dB
Operating temperature
-400C to 850C
Singlemode/Multimode
50/125, 62.5/125 (Multimode) OM2&OM1
50/125, 10G (Multimode) OM3
Simplex, Duplex
Φ3.0mm, Φ2.0mm, Φ0.9mm
PVC or LSZH
≤ 0.1dB (For Singlemode Master)
≤ 0.25dB (For Singlemode Standard)
≤ 0.25dB (For Multimode)
Tested by JDS RM 3750
Return Loss
(Singlemode)
UPC ≥ 50dB
SPC ≥ 55dB
APC ≥ 60dB (typ.65dB)
Tested by JDS RM3750
Geometry Requirement
( Singlemode)
Ferrule Endface Radius
7mm ≤ R ≤ 12mm (For APC)
10mm ≤ R ≤ 25mm (For Standard)
Apex Offset ≤ 30 μm (For Master)
Apex Offset ≤ 50 μm (For Standard)
Undercut -50nm ≤ U ≤ 50nm
Tested by DORC ZX-1
Applications：
. FTTH, LAN, PON & Optical CATV, Local ring net
. Optical fiber communication system
. Optical fiber test equipment
. Optical fiber sensor
. Industry and military application
