Description

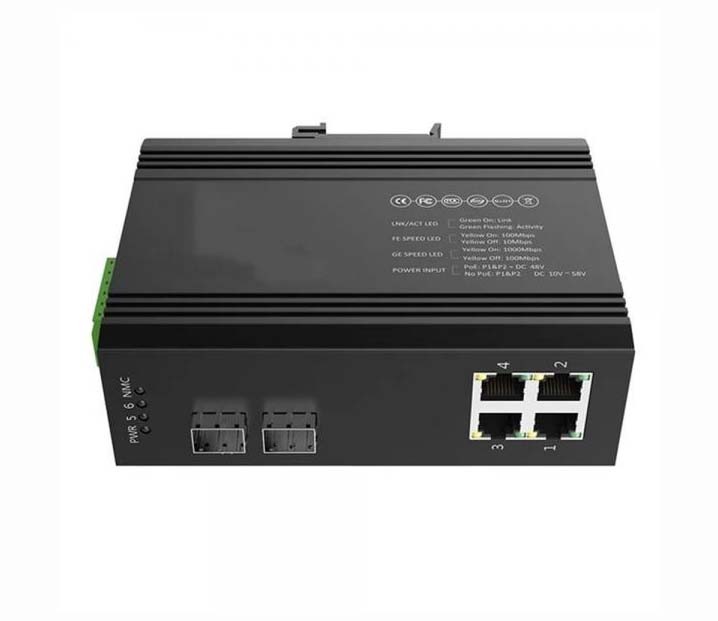

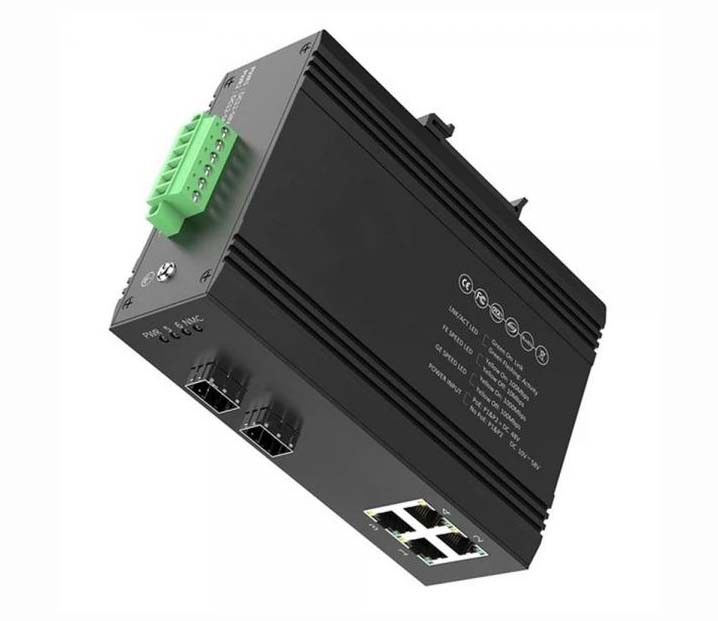

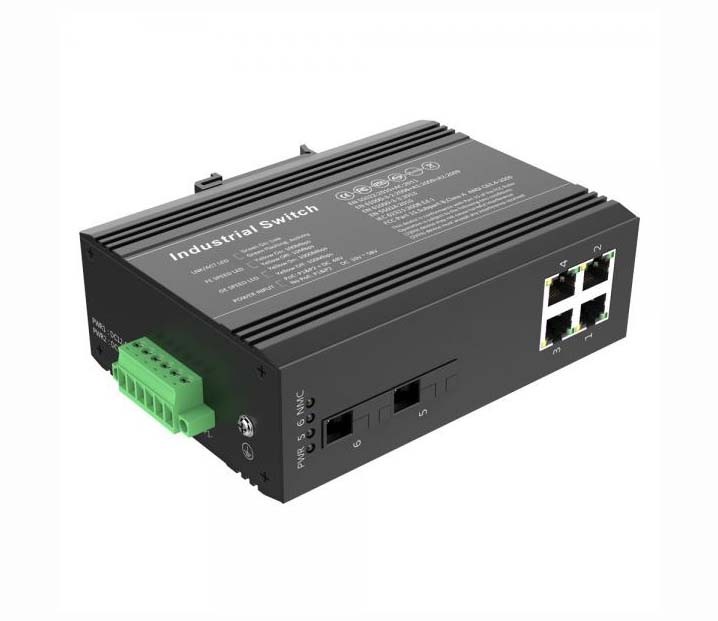

QYY-4RJ45 Small Industrial Fiber Ethernet Media Converter
Feature:
1.Input Voltage: DC10~58V (Redundant Dual)
2.Operating Temperature: -40℃ ~ +85℃
3.Shell: IP40 protection, fanless design
4.Anti-static: 8KV-15KV
5.MTBF: 100000 Hours
Specification：
Fixed Port: 2*1000 Base-X, 4*10/100/1000 Base-T
Management Port: Unsupported
Power Interface: Phoenix terminal, redundant dual
LED Indicators: PWR,Link/ACT LED
Layer 2 Switching
Switching Capacity : 20G
Packet Forwarding Rate : 14.88Mpps
MAC Address Table : 16K
VLAN : Unsupported
Buffer : 2M
Forwarding Delay : <5us
Port Feature : Cross straight adaptive
Traffic Control : Support
Jumbo Frame : Support 10KBytes
EMC&Ingress Protection
Surge Protection Of Power : IEC 61000-4-5 Level 3 (4KV/2KV)(8/20us)
Surge Protection Of Ethernet Port : IEC 61000-4-5 Level 3 (4KV/2KV)(10/700us)
EMI : CLASS A
ESD : IEC 61000-4-2 Level 4 (8K/15K)
Free Fall : 0.5m
Environmental Limits
Operating Temperature: -40℃-85℃
Storage Temperature: -40℃-85℃
Ambient Relative Humidity: 5%-95% (non-condensing)
Thermal Methods: Fanless, natural cooling
MTBF: 100,000 Hours
Application：
1.Extend Ethernet Network Distances
2.It uses a 10/100BASE-T to 10BASE-FL speed setting (back-to-back) to extend the distance between two 10/100BASE-T devices up to 100 km. Use single-mode fiber without repeaters.
3.Extending Fast Ethernet network distances
4.It uses the 100/1000BASE-TX to 100/1000BASE-FX setting to extend the distance between any two 100/1000BASE-TX devices up to 100 km. Use single mode fiber. Or connect directly to a 100/1000BASE-FX compatible port on any device to provide a 100/1000BASE-TX port interface.
