Description

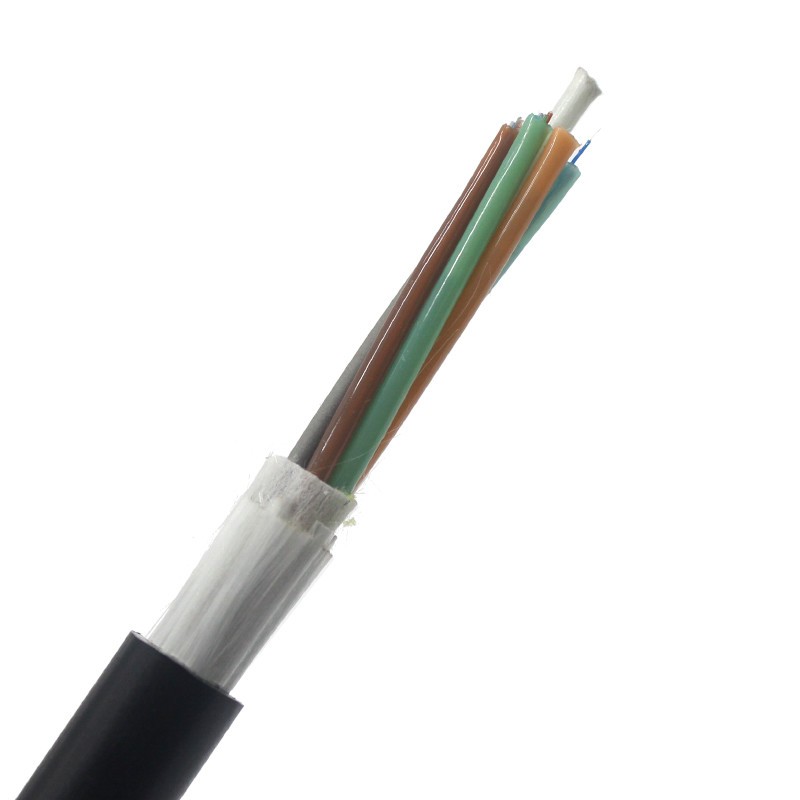

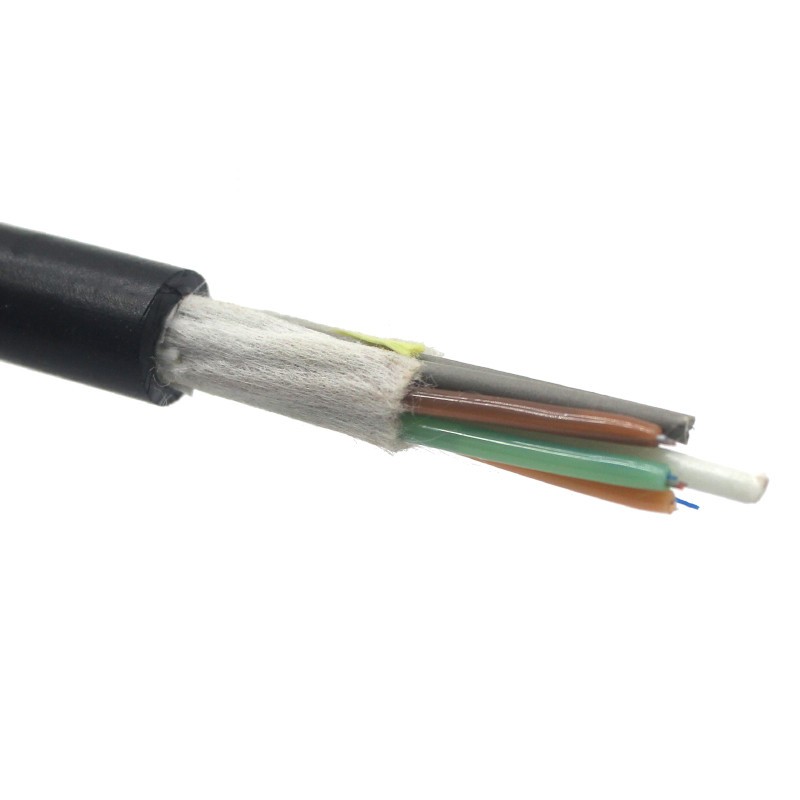

QYY- ADSS G652D Fiber Optic Cable Outdoor 12 24 32 48 72 96 144 Core
Features：
. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication
transmission property
. Two parallel steel wire/FRP strength members ensure good performance of crush
resistance to protect fiber
. Simple structure, light weight and high practicability
. Novel flute design, easily strip and splice, simplify the installation and maintenance
. Low smoke, zero halogen and flame retardant sheath
Application：
. Long distance and local area network(LAN) communication
. Aerial & conduit/duct application
. The dedicate design of aramid quantity and stranding process can satisfy the demand on
various spans
Parameters：
| Fiber Count | 2-144 core |

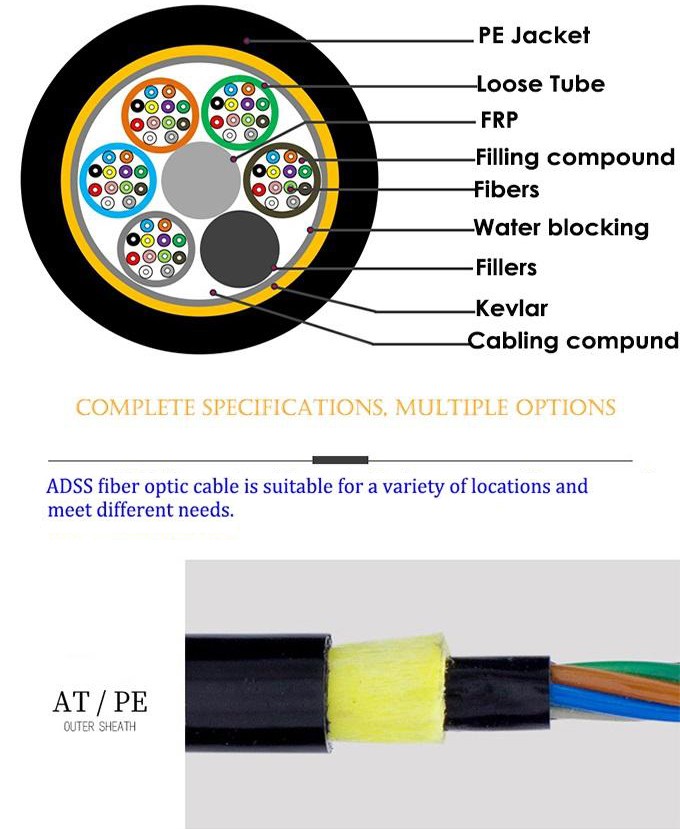

| Construction | Loose tube |
| Fiber Type | Single Mode |
| OuterJacketMateral | Single PE jacket |
| Jacket Color | Black |
| Cable Diameter | 9.5mm±0.5mm |
| Weight | 90KG/KM |
| Central Strength Mem | FRP |
| Application | Aerial and Duct |
| Bending Radius | 10D/20D(mm) |
| Sample status | free sample in stock |
