QYY- MOT50-Multi-function OTDR

Wavelength (nm) Optional：1310/1550

Dynamic range(dB)2 Optional：28/26/24

Pulse width (ns) ：5,10,20,30,50,80,160,300,500,800,1000,2000,4000,6000,10000,20000

Testing range ：≤100 Km

QYY- MOT50-Multi-function OTDR

feature：

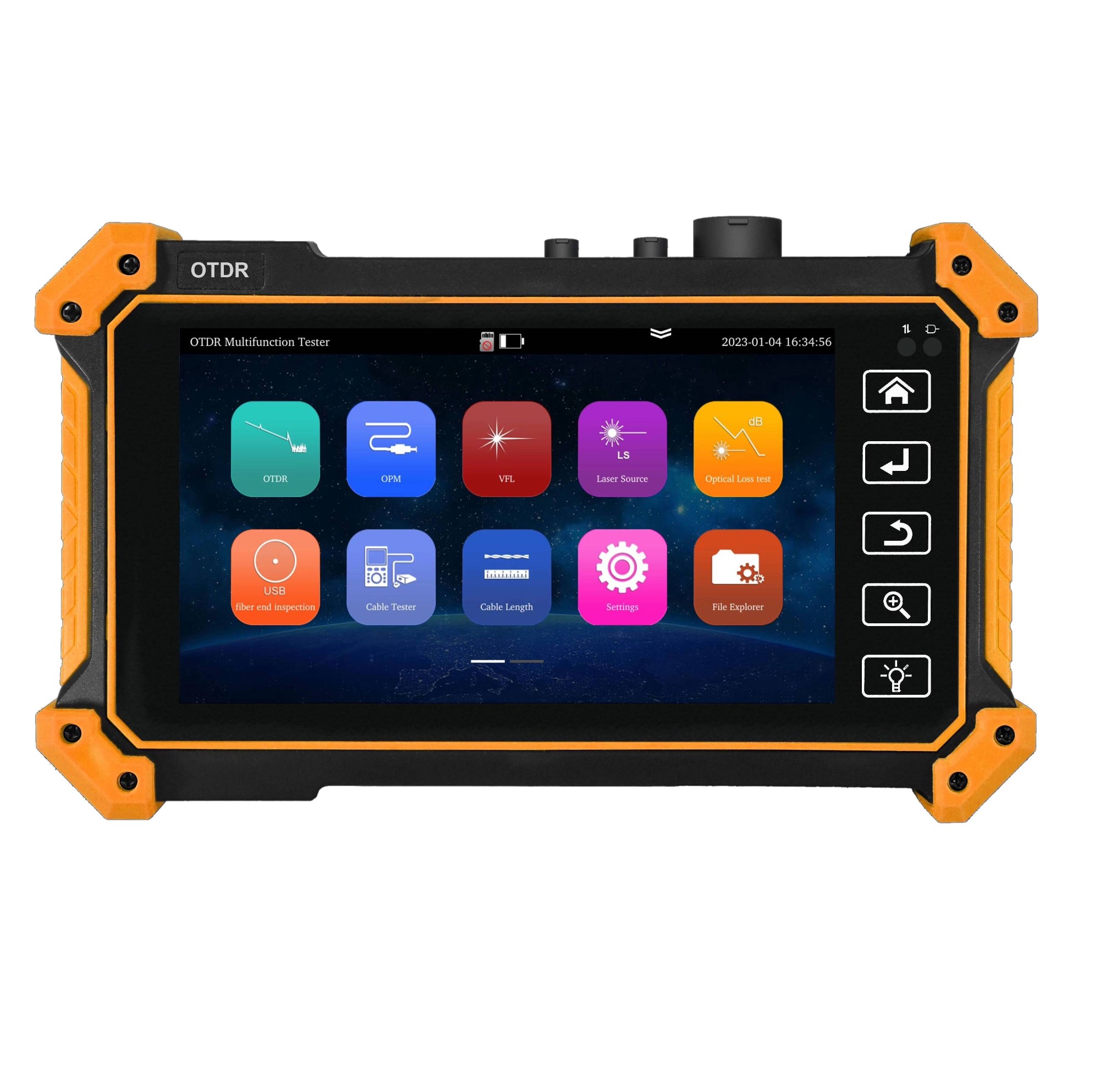

1. 5.55 inch OLED touch screen, 1280x720 resolution

2. OTDR Auto testing, event map, easy to use

3. Stable laser source, loss test, OPM and VFL

4. Report saved as SOR, PDF format etc

5. UTP cable test, cable plug detection

6. Network cable length measurement, up to 3km

7. RJ45 TDR cable test * (Optional)

8. PING test, PPPOE, IP scan, port flashing etc network test * (Optional)

Specifications：

Model	QYY-MOT-50 / MOT-51
Size & Display	5.55 inch OLED touch screen, 1280x720 resolution
Power output	5V 1A power output, as power bank.
UTP cable test	Test UTP cable connection status and display on the screen. Read the number on the screen. Detect the near-end, mid-end and far-end fault point of RJ45 cable connector, also can test shield cable
length measurement	Network cable length measurement, up to 3km
Optical power meter	Wavelength:1625nm,1550nm,1490nm,1310nm,1300nm,850nm,measurement range ,-70 ～+6dBm, for optical power testing and Fiber link loss relative measurement
Visual fault locator	10mW visual fault locator with 650nm wavelength, emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, test range 8KM
Stable laser source
Output wavelength	1310/1550	1550
Output power	-5dBm~0dBm adjustable
Frequency	270Hz/330Hz/1kHz/2kHz
Stability	CW，土0.2dB/15min (Test after boot for 15min)
Power
External power supply	Type-C 5V（2A）
Battery	Built-in 3.7V Lithium ion battery, 4000mAh.
Rechargeable	After charging 3 hours, normal working time 6 hours
Parameter
Operation setting	language: English, Chinese
Auto off	5-30 (mins)
Working environment
Working Temperature	-10℃---+50℃
Working Humidity	30%-90%
Dimension/Weight	183mm x 110mm x 36.5mm /0.45kg
