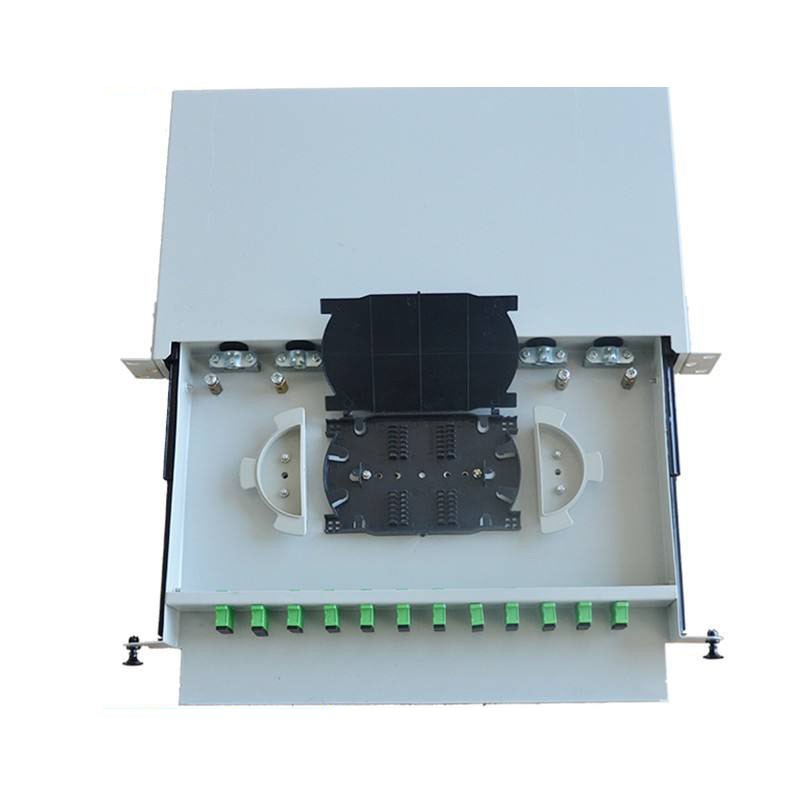

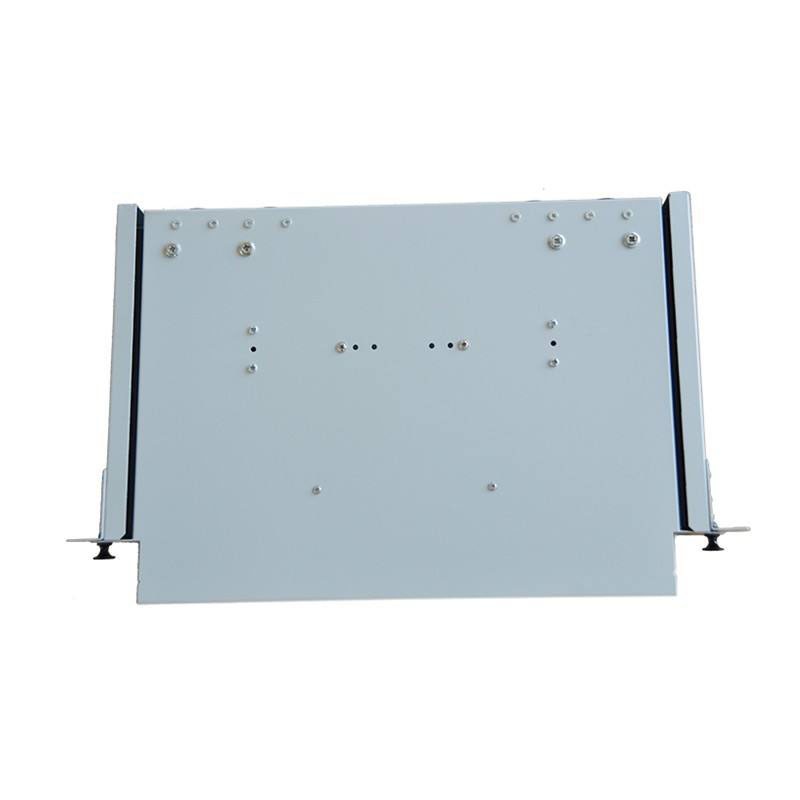

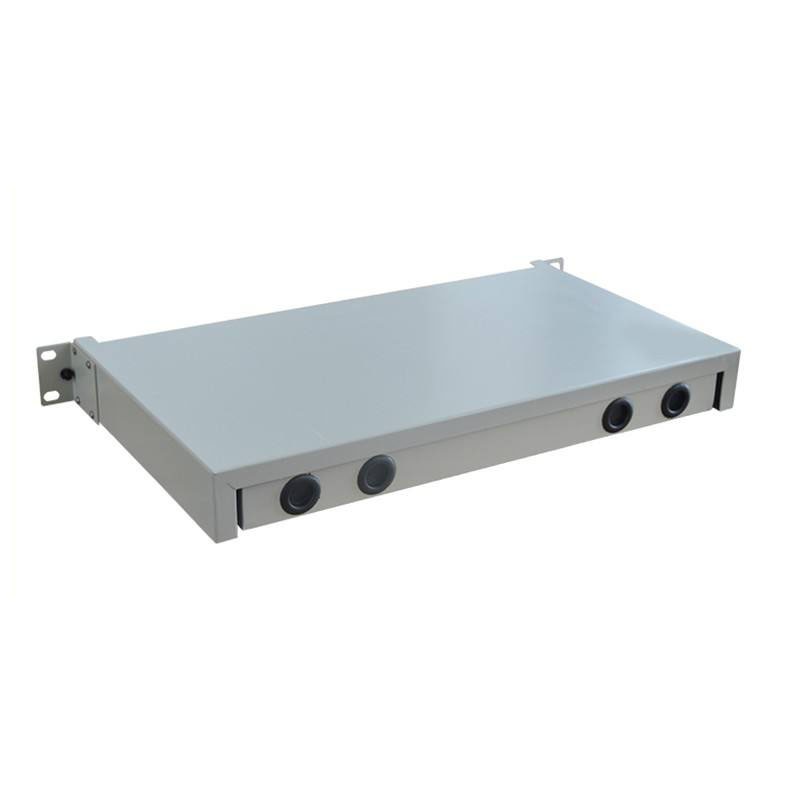

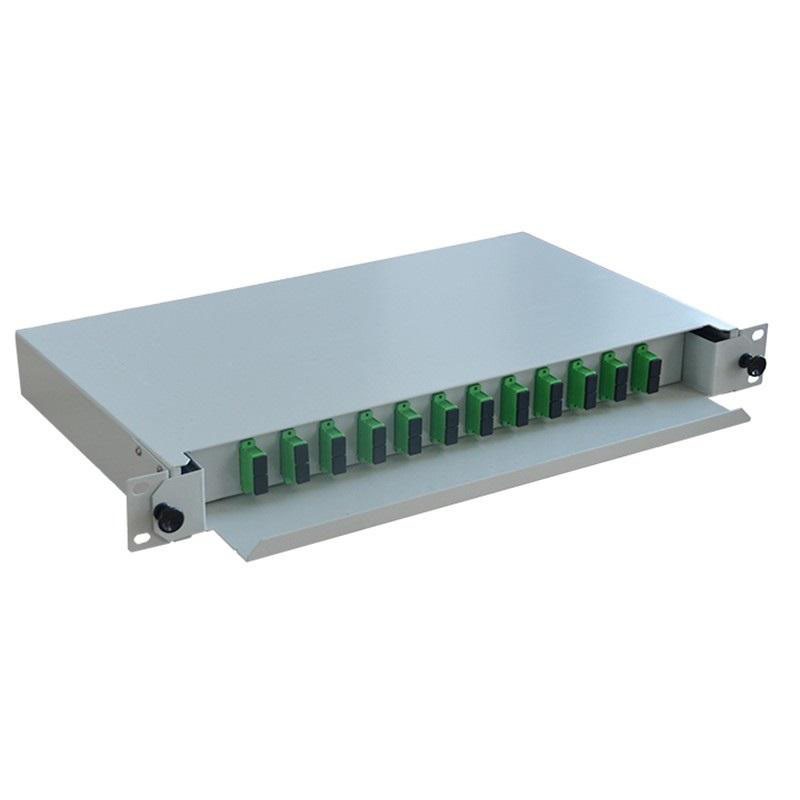

QYY- 12 Ports ODF 1U Fiber Optical Patch Panel for Sc Adapter

Connector type : LC/SC/ST/FC

No. of Fiber： 12 Core

Connector type：LC/FC/SC,simplex, duplex etc

Size：260*140*40 mm

QYY- 12 Ports ODF 1U Fiber Optical Patch Panel for Sc Adapter

Features:

. Made by High-quality cold-rolled steel

. Matt electrostatic spraying technology, strong adhesion , easy to fall off , beautiful and durable

. 1 or 2 cable entry and 1 to 48 cable exits

. Both cable entry and fiber outlet are made of oil-resistant nitrile rubber seal

. Superimposed structure fiber splice tray

. Max capacity reach to 4-96 port,4 fiber in port

. Available adapter port:ST,FC,SC,LC,MU,MTRJ

. With various panels to fit different adaptor interface

Specifications:

Use	FTTH	Size	26014040 mm
Model Number	12 port	Available adapter	LC/SC/ST/FC
Connector type	LC/FC/SC,simplex, duplex etc	Application	Optical Distributrion Frame (ODF),
Ports option	8 / 12/ 24 .......	Material	Galvanized Steel Sheet or cold rolled steel sheet or aluminium sheet
ODF type	Wall mounted	Height	1U

Item	Specification
Capacity	1-48D
Curvature Radius	≥30mm
Additional Loss	No loss of the optic cabe in the splice tray
Working Tempreture	-40°C to +60°C
Impact Strength	750N

Laterial Pressure	500N
