Description

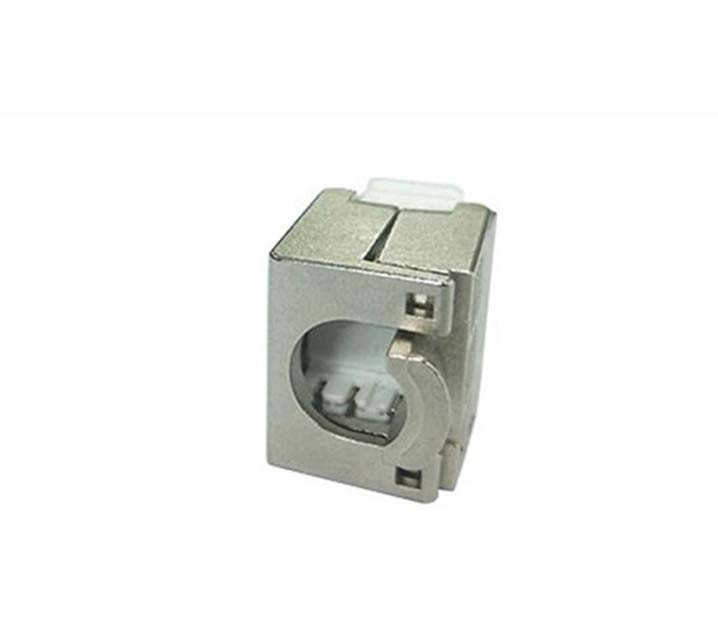

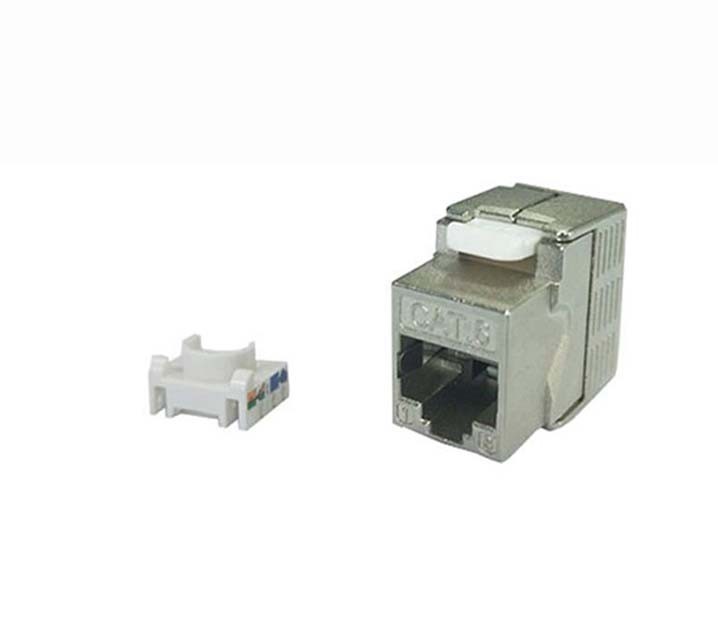

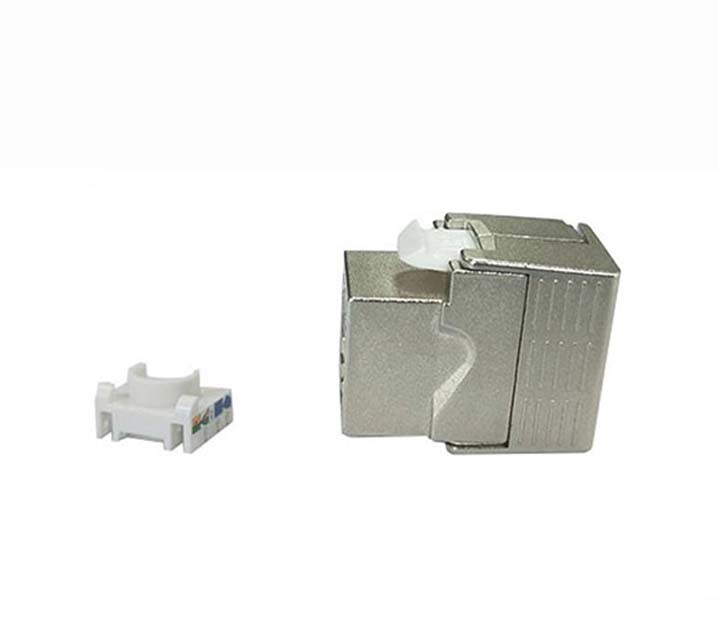

QYY-Shielded STP Zinc Alloy RJ45 Keystone Coupler
|
Mechanical: |
|
1.Shell material: PC UL94V-0
|
|
Surroundings: |
|
1.Cat3 Cat5e Cat6 Ladder Jack White
2.Storage temperature: -40 to +85°C
3.Operating temperature: 0 to 70°C
4.Complies with TIA/EIA 568B Class 5e
5.For use with modular plugs that comply with FCC Part 68 and Subpart F
|
| Electrinic | Voltage Rating :125 VAC RMS | |
| Current Rating : 1.5AMP | ||
| Contact Resistance:110 Milliohs MAX. | ||
| Insulation Resistance:1 000 megohms MIN 500 VDC | ||
| Dielectric Strength :750 VAC RMS 60Hz ,1 MIN | ||
| Environment | Storge: -40~ 85°c | |
| Operation: 0~70°c | ||
| Machanical | Housing Material: PBT-UL90V-0 | |
| Panel Fram: Carbon Steel, Powder Coating in black color | ||
| Contact Material: PC-UL90V-0 | ||
| Contact: Phosphor Bronze with Nickel Plating | ||
| RJ45 Jack:IFE:750 times MIN. | ||
| IDC Life :200 times MIN. | ||
| Wire:AWG 24-26 | ||
| Tia Cat.5e Perm Link Test: Worst Pair NEXT Margin ≥3dB | ||
