  • QYY-  SC UPC-SC UPC Single Mode 9/125 Duplex Fiber Optic Patch Cord
  • QYY-  SC UPC-SC UPC Single Mode 9/125 Duplex Fiber Optic Patch Cord
  • QYY-  SC UPC-SC UPC Single Mode 9/125 Duplex Fiber Optic Patch Cord
QYY-  SC UPC-SC UPC Single Mode 9/125 Duplex Fiber Optic Patch Cord QYY-  SC UPC-SC UPC Single Mode 9/125 Duplex Fiber Optic Patch Cord QYY-  SC UPC-SC UPC Single Mode 9/125 Duplex Fiber Optic Patch Cord

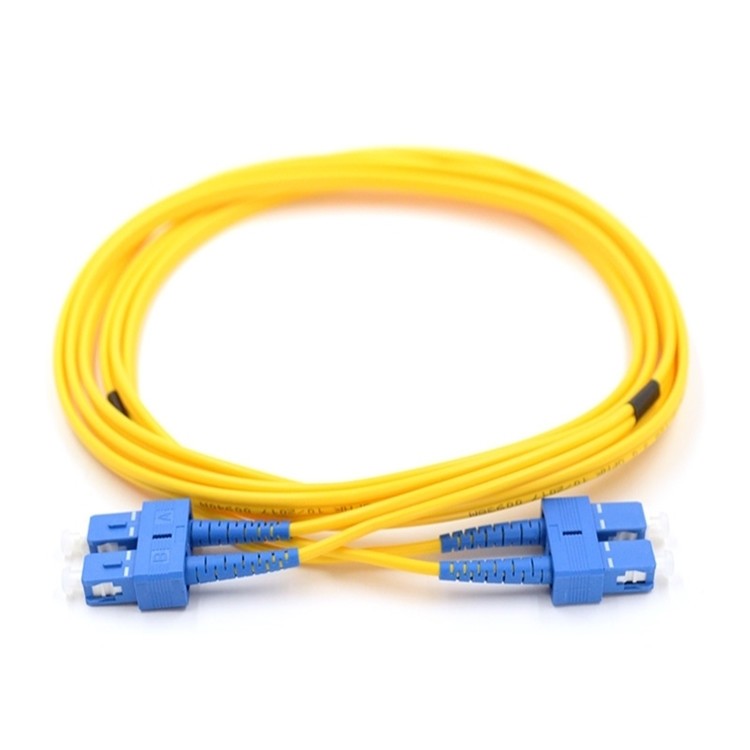

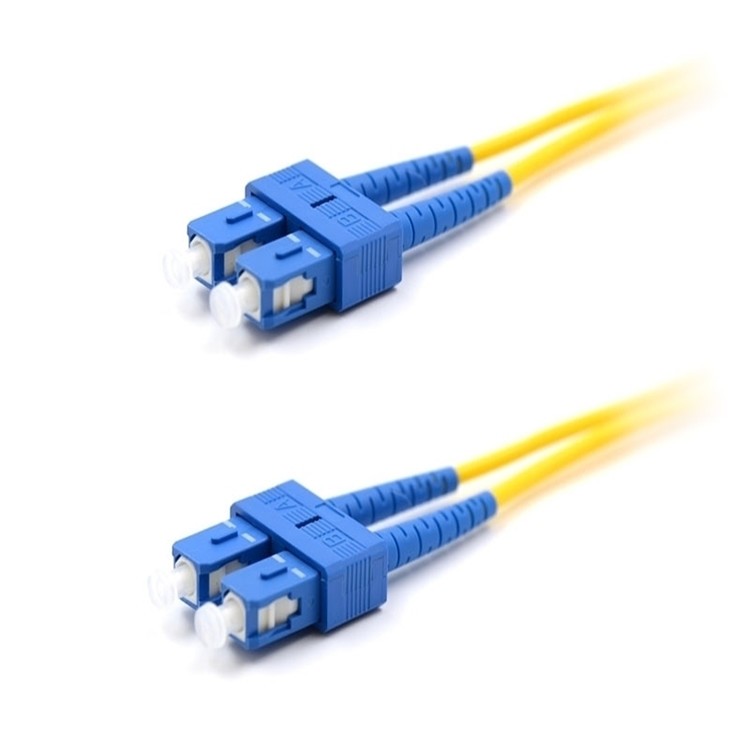

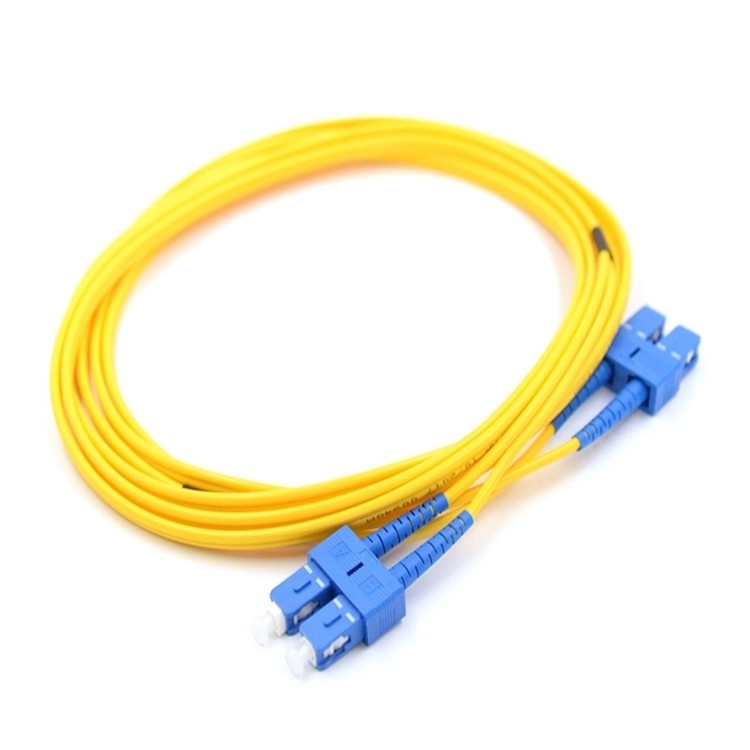

QYY- SC UPC-SC UPC Single Mode 9/125 Duplex Fiber Optic Patch Cord

  • Product Name:SC UPC-SC UPC Single Mode 9/125 Duplex Fiber Optic Patch Cord
  • Fiber Grade:SM G652D
  • Connector Type:SC -SC
  • Cable Jacket Diameter:3.0mm
  • Fiber Optic Patch Cord  , Dual core multimode jumper  , single core single-mode jumper,ftthfttx
    Inquiry Send Email

    Description

    QYY- SC UPC-SC UPC Single Mode 9/125 Duplex Fiber Optic Patch Cord


    Feature:

    . Screw-thread coupling mechanism

    . Ceramic ferrules connectors
    . Low insertion loss, high return loss
    . Excellent mechanical endurance
    . High credibility and stability
    . Good in repeatability and exchangeability
    . 100% Insertion, Return Loss, End Face and Interference inspection




    Specification:

    Product Name
    SC SC Fiber Optic Patch Cord
    Fiber Grade
    SM G652D/G657A1
    Connector Type
    SC to SC
    Wavelength
    1310/1550nm
    Fiber Count
    Duplex
    Cable Jacket Diameter
    3.0mm
    Cable Jacket Material
    LSZH
    Ferrule
    UPC
    Cable Length
    0.5 M or customized
    Insertion Loss
    ≤0.3dB
    Return Loss
    ≥50dB
    Minimum Bend Radius
    10mm
    Operation temperature
    -40℃~ 85℃


    Application:

    . Telecommunication

    . CATV, FTTH, LAN
    . Fiber oiptic sensors
    . Optical transmission system
    . Test equipment
