Description

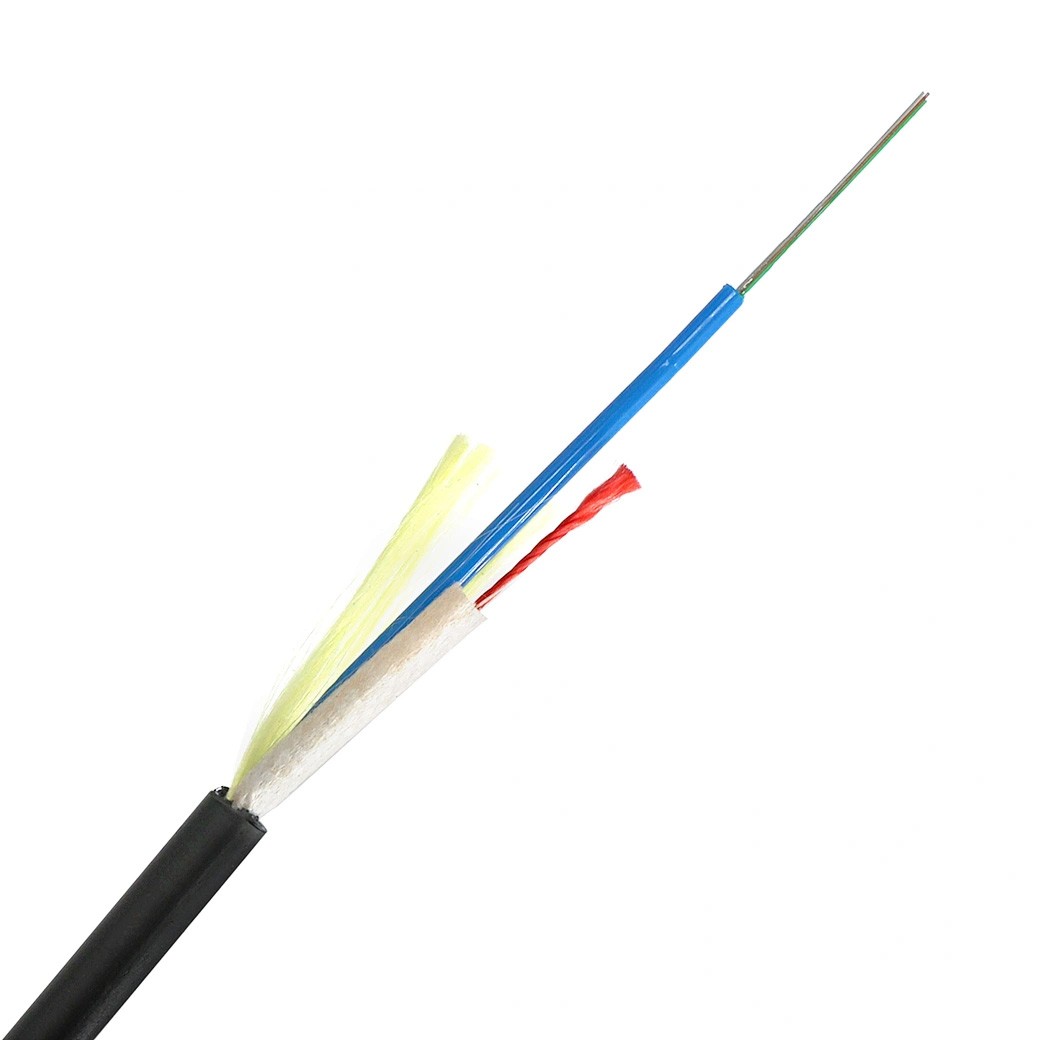

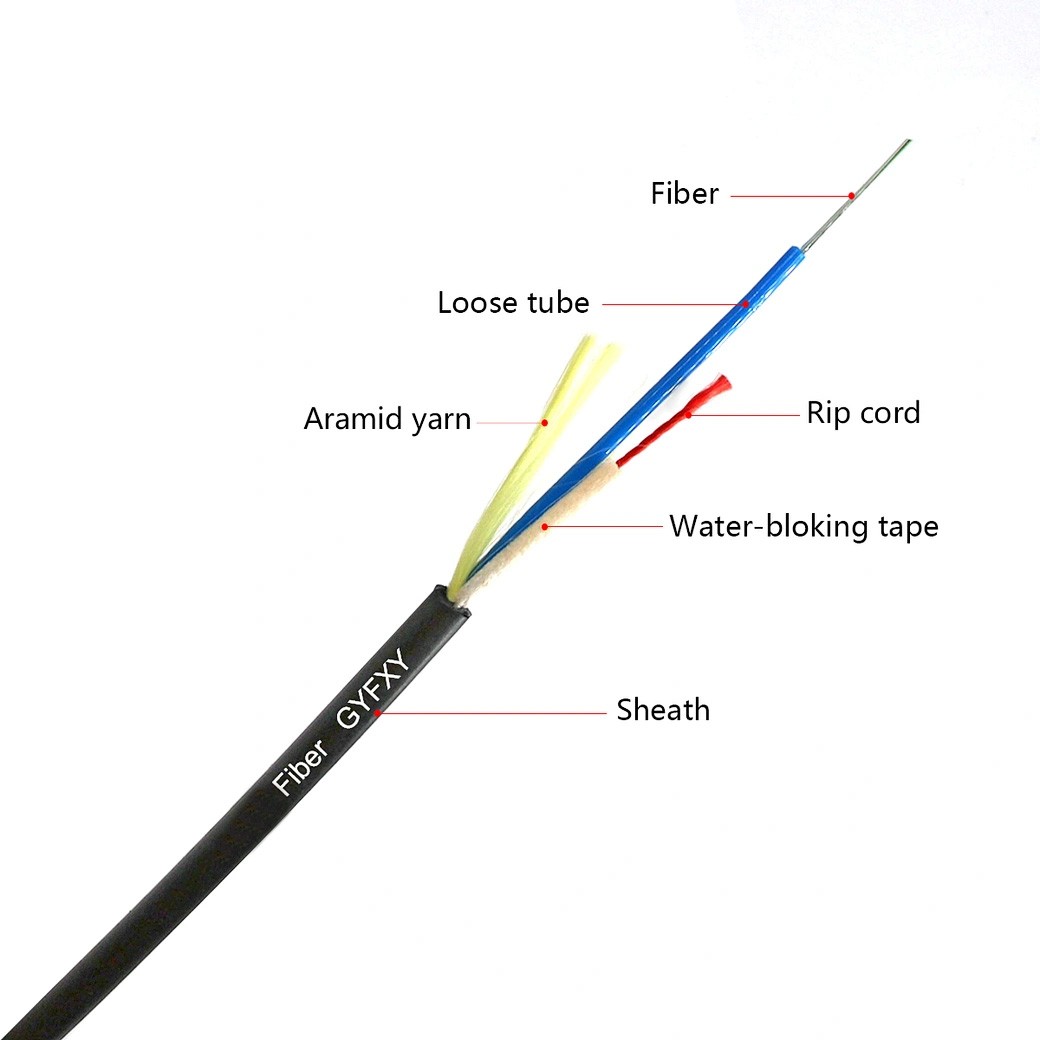

QYY- Fiber Optic Cable GYFXY G652D Single Mode Glass Yarn
Features：
. Excellent mechanical property and temperature performance.
. Loose tube material have good hydrolysis resistance and higher intensity.
. Two parallel FRP ensure tensile strength.
. Good crush resistangce and flexibility.
. PE sheath protects cable from ultraviolet radiation.
. Small diameter, light weight and friendly installation.
Optical Fiber Loose Tube Cable Optical Characteristics：
Item
G.652
G.655
50/125um
62.5/125um
Attenuation
@850nm
≤3.0dB/km
≤3.2dB/km
@1300nm
≤1.0dB/km
≤1.2dB/km
@1310nm
≤0.36dB/km
≤0.40dB/km
@1550nm
≤0.22dB/km
≤0.23dB/km
Bandwidth
@850nm
≥500MHZ.km
≥200MHZ.km
@1300nm
≥1000MHZ.km
≥600MHZ.km
Numerical aperture
0.200±0.015NA
0.275±0.015NA
Cable cut-off wavelength
≤1260mm
≤1450mm

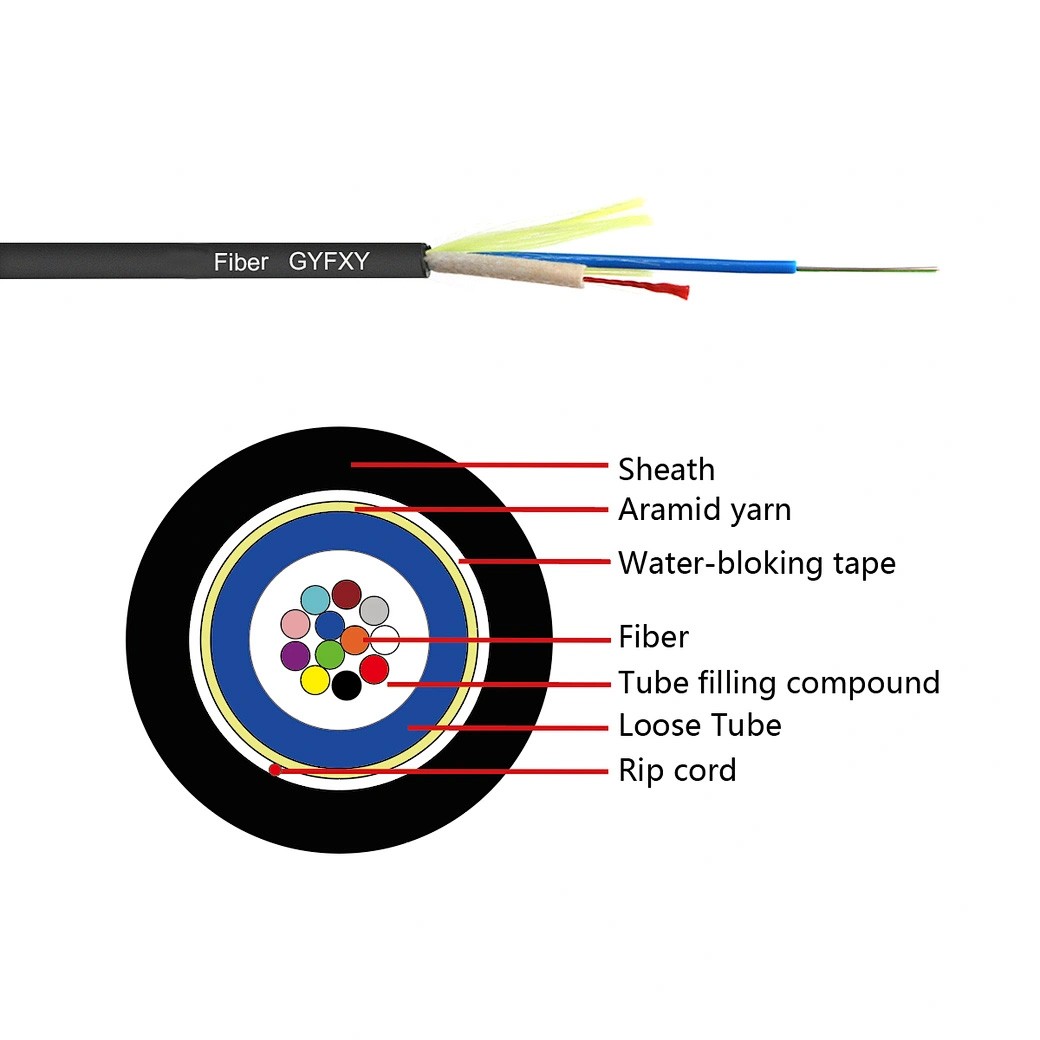

Structural Parameters：
|
Cable Type |
Fiber Count |
Diameter (mm) |
Weight (kg/km) |
Tensile strength Long/Short term (N) |
Crush resistance Long/Short term (N/100mm) |
Bending radius Static/Dynamic (mm) |
|
GYFXY-2~24 |
2~24 |
8.0 |
50 |
100/1000 |
300/1000 |
10D/20D |
Operating temperature / -40~+70℃ Storage temperature / -40~+70℃
Application：
. Aerial
