Description

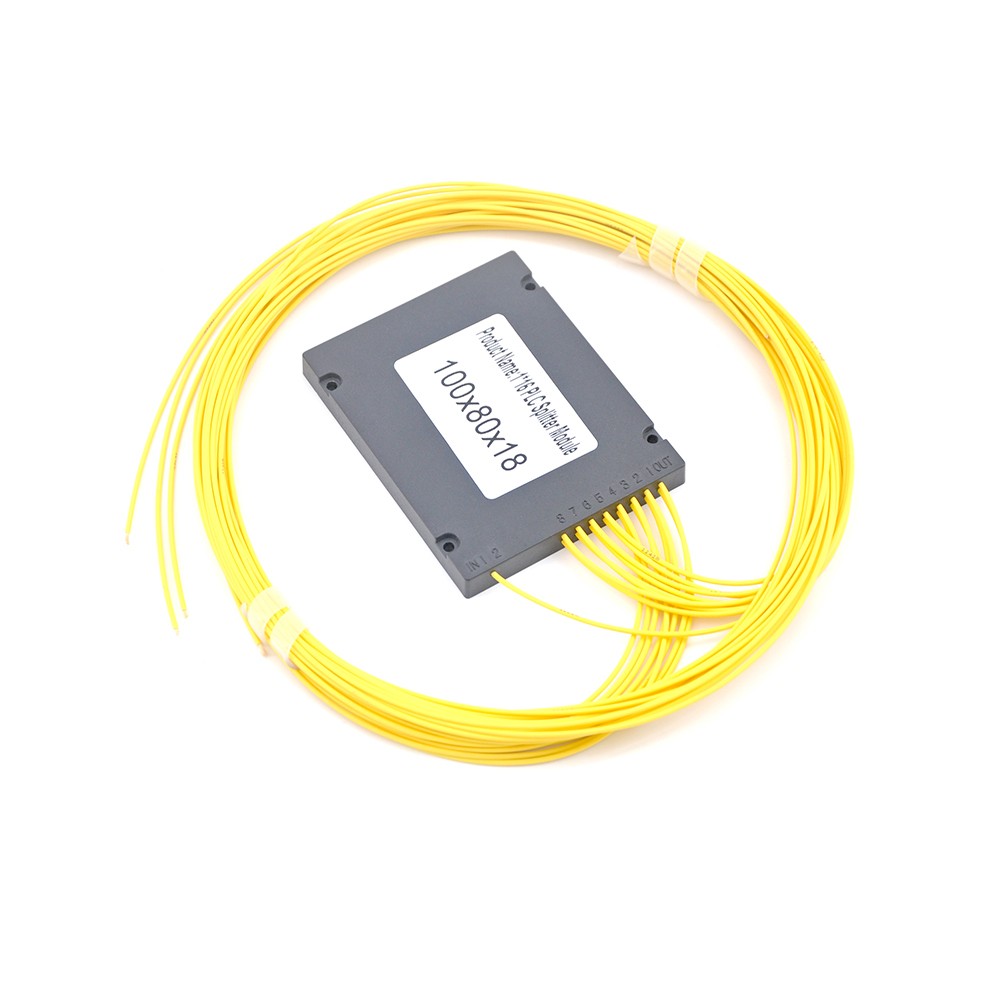

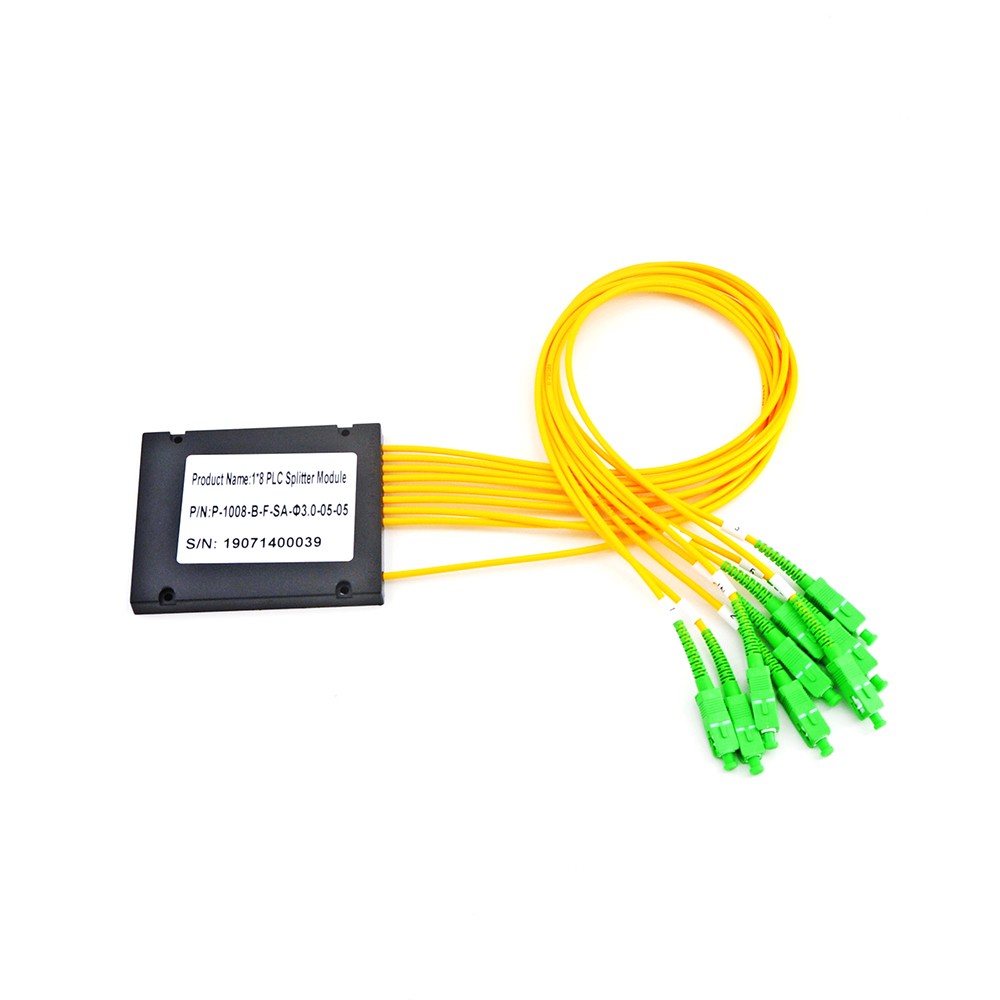

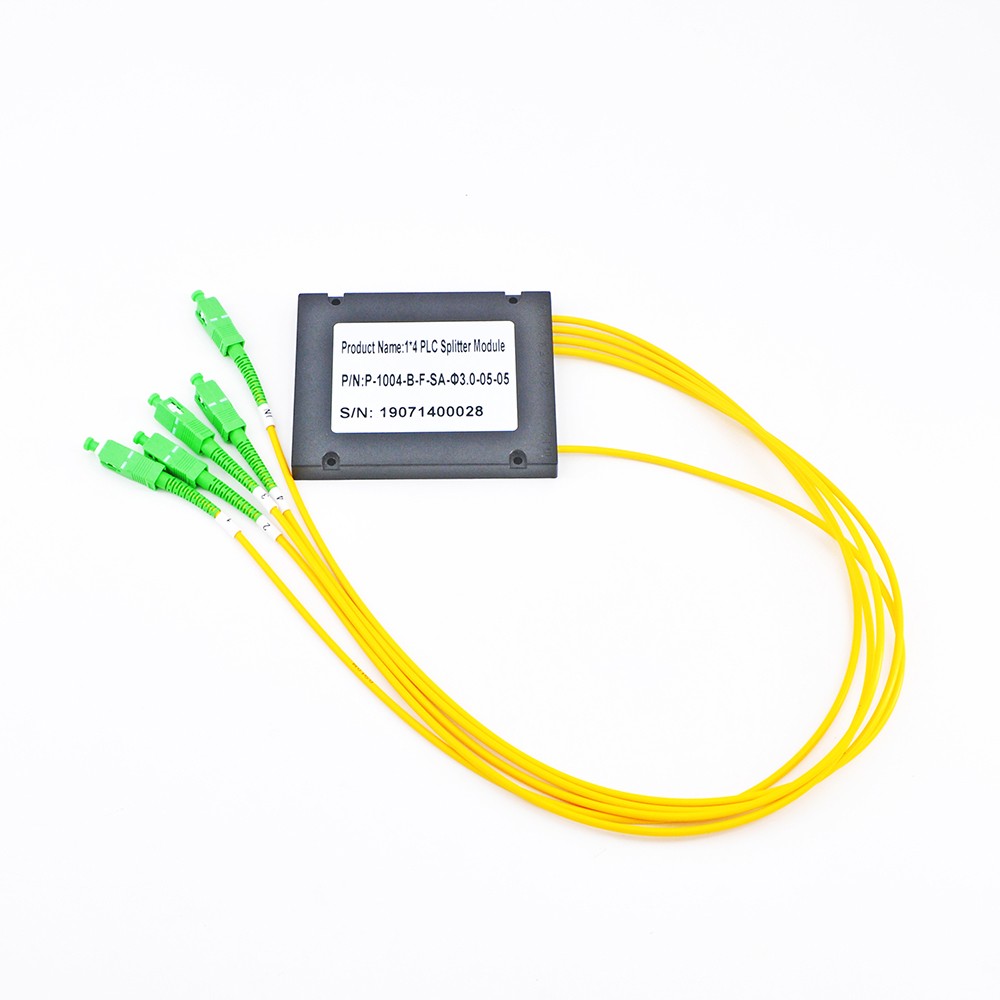

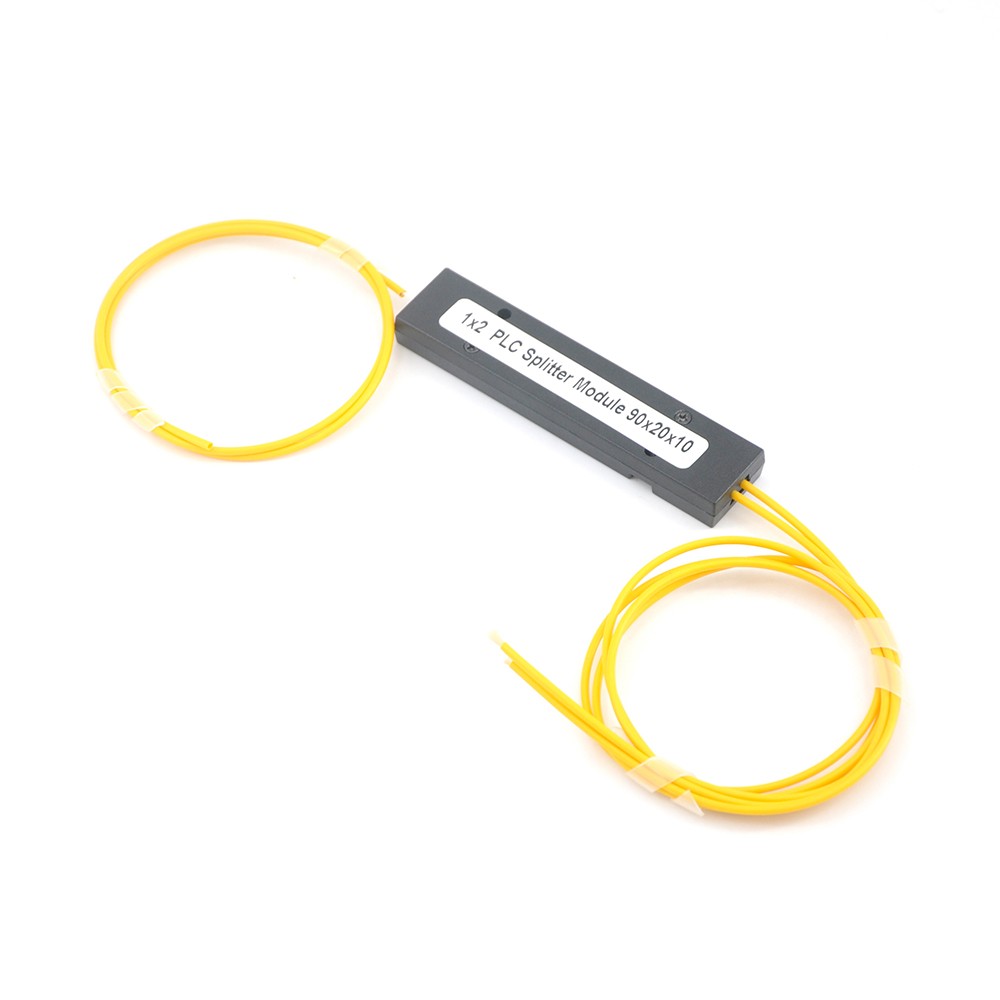

QYY- ABS-Box-PLC-Splitter
Features:
. Low Insertion loss and Low PDL
. Uniform power splitting High reliability
. Excellent environmental stability
. Compact size and various package
Specifications:
Item
1x2
1x3
1x4
1x6
1x8
1x12
Operating Wavelength（nm）
1260-1650
Fiber Type
G657A1 or as customers' order
Connector
SC/FC/LC
Ferrule section
UPC/APC
Insertion loss（dB）
≤4.1
≤6.4
≤7.4
≤9.3
≤10.5
≤12.8
Loss uniformity（dB）
≤0.4
≤0.4
≤0.6
≤1.6
≤0.8
≤1.2
Return Loss（dB）
≥55
≥55
≥55
≥55
≥55
≥55
Polarization Dependent Loss（dB）
≤0.2
≤0.2
≤0.2
≤0.2
≤0.2
≤0.25
Directivity（dB）
≥55
≥55
≥55
≥55
≥55
≥55
Temperature correlation loss
-40～85℃（dB）
≤0.5
≤0.5
≤0.5
≤1.5
≤0.5
≤0.5
Working Temperature(℃)
-40～85
Storage Temperature（℃）
-40～85
| Item | 1x16 | 1x24 | 1x32 | 1x48 | 1x64 | 1x128 |
| Operating Wavelength（nm） | 1260-1650 | |||||
| Connector | SC/FC/LC | |||||
| Ferrule section | UPC/APC | |||||
| Fiber Type | G657A1 or as customers' order | |||||
| Insertion loss（dB） | ≤13.8 | ≤15.8 | ≤16.8 | ≤18.7 | ≤20.5 | ≤24.1 |
| Loss uniformity（dB） | ≤1.2 | ≤1.5 | ≤1.5 | ≤2.0 | ≤2.0 | ≤2.5 |
| Return Loss（dB） | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 |
| Polarization Dependent Loss（dB） | ≤0.25 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.4 | ≤0.4 |
| Directivity（dB） | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 |
|
Temperature correlation loss -40～85℃（dB） |
≤0.5 | ≤0.5 | ≤0.5 | ≤1.5 | ≤0.5 | ≤0.5 |
| Working Temperature(℃) | -40～85 | |||||
| Storage Temperature（℃） | -40～85 | |||||
| Item | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 | 2x128 |
| Operating Wavelength（nm） | 1260-1650 | ||||||
| Fiber Type | G657A1 or as customers' order | ||||||
| Connector | SC/FC/LC | ||||||
| Ferrule section | UPC/APC | ||||||
| Insertion loss（dB） | ≤4.5 | ≤7.9 | ≤10.8 | ≤14.1 | ≤17.3 | ≤21.1 | ≤24.8 |
| Loss uniformity（dB） | ≤0.9 | ≤1.1 | ≤1.2 | ≤1.5 | ≤1.8 | ≤2.2 | ≤2.5 |
| Return Loss（dB） | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 |
| Polarization Dependent Loss（dB） | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.4 | ≤0.4 |
| Directivity（dB） | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 |
|
Temperature correlation loss -40～85℃（dB） |
≤0.5 | ≤0.5 | ≤0.5 | ≤1.5 | ≤0.5 | ≤0.5 | ≤0.5 |
| Working Temperature(℃) | -40～85 | ||||||
| Storage Temperature（℃） | -40～85 | ||||||
