Description

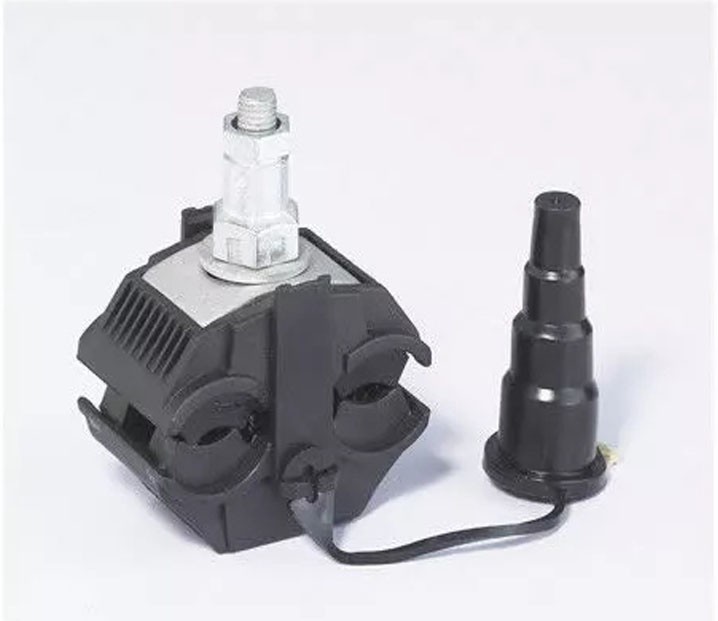

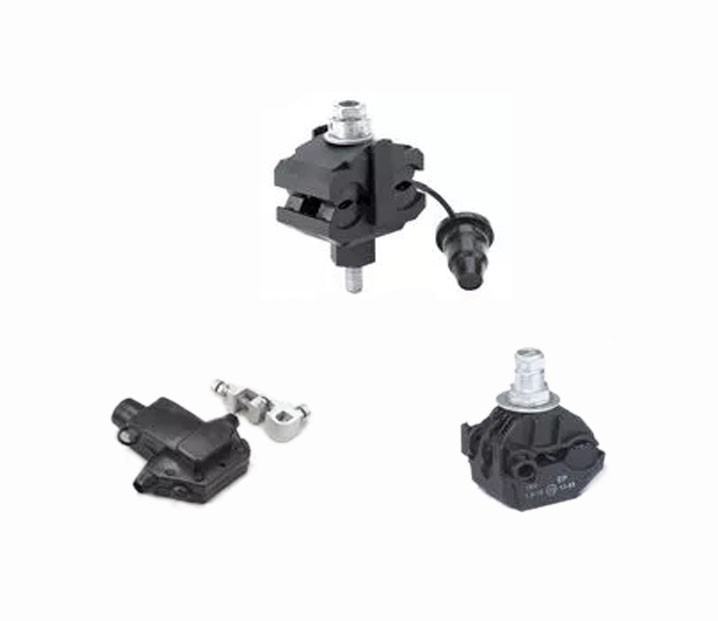

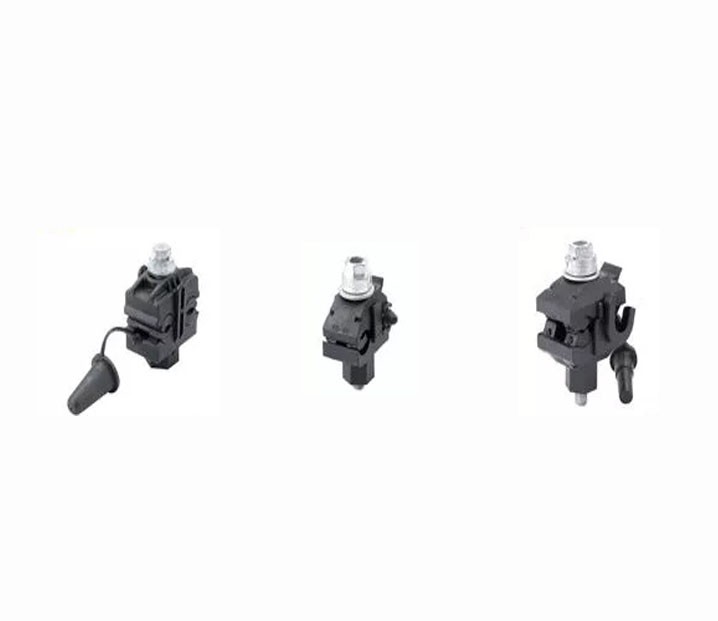

QYY- Insulation Piercing Connectors
Specification：
1.Mechanical tests on connector
2.Mechanical test on cables
3.Voltage test under water (6 kV for 1 min)
4.Electrical aging test
5.Environmental test (climatic and corrosion)
Feature:
1.Range taking - Equipped with shear head to ensure a reliable tightening torque
2.Accepts copper conductor - Operating temperature -55°C to +55°C
3.Waterproof - Installation temperature -20°C to +55°C
4.Captive end flexible end caps - Can be installed on energized main if tap is not under load
5.All the components are un-loosable It is not recommended to re-use IPC when removed.
| Item No. | Main wire section | Branch wire section | Bolt |
| ZCEP | 10-95 | 1.5-10 | 1 |
| ZC2-95 | 16-95 | 4-35 | 1 |
| ZC2-150 | 50-150 | 6-35 | 1 |
| ZC3-95 | 16-95 | 16-95 | 1 |
| ZC3-150 | 35-150 | 35-150 | 1 |
