Description

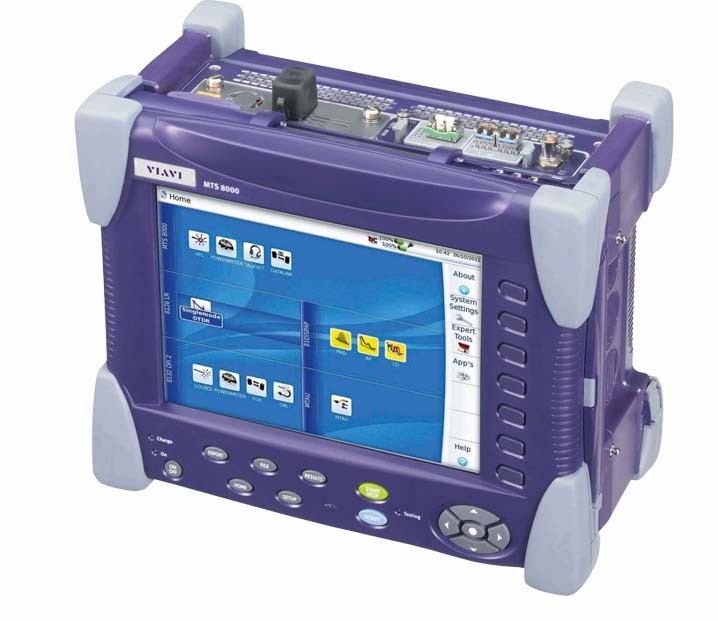

QYY-MTS-8000 platform
Features:
1.Compact for use in the field;
2.Portable platform, 5.4 Kg, with battery pack and OSA module;
3.10.4` high resolution transflective color display with touchscreen option;
4.Fast data transfer via USB, Ethernet ports;
5.PC-installed post-processing and report generation software: OFS-100 (FiberTrace) and OFS-200 (FiberCable).
6.Analysis of the entire band from 1250 to 1650 nm;
7.Scanning speed, less than 5 seconds;
8.Ready for 40/100G networks;
10.High performance OSNR>45dB@25GHz, with CRZ modulation analysis;
11.Ease of use;
12.Simple GUI;
13.Internal calibration of the wavelength, no need for factory recalibration throughout the lifetime of the instrument;
14.Remote access via Ethernet port.
Main features：
1.Integrated touch screen
2.View fiber information in real time
3.Auto Center
4.auto focus
5.Auto Pan/Scroll
6.Built-in fiber end face analysis function
7.Audible8.User-selectable acceptance profiles
8.Results can be stored on device or exported
9.Connects to PC and mobile devices via WiFi and USB
10.Battery life lasts all day
11.Built-in acceptance criteria for industry standards (IEC-61300-3-35)
Application:
1.Fiber connector inspection and comprehensive fiber characterization supporting OTDR, insertion loss, optical return loss testing, CD, PMD and AP
2.Test and troubleshoot WDM systems and ROADM networks using spectral and correlation analyzers.
3.Test and troubleshoot converged Ethernet/IP networks from 10 Mbps to 100 Gpbs interfaces, with packet capture and analysis
4.Layer 1-3 Ethernet/IP SLA testing using ITU-T Y.1564-based automation-enhanced RFC 2544/SAMComplete.
5.Successfully test TDM/PDH to SONET/SDH in OC-3/STM-1 to OC-192/STM-64 including service interruption testing and capture path overhead (POH) using trigger adjustments
6.Test PMD of live traffic and in-band OSNR of DWDM/ROADM systems using an online PMD test tool
7.Supports installation and maintenance of OTN networks up to 11.1 Gbps with a complete 100 Gpbs client.
8.Supports 1/2/4/8/10 Gpbs FC for installation and maintenance of SAN and low latency circuits
Advantage：
1.Future-proof and stay ahead of the technology curve: from traditional fiber and BERT testing to advanced high-speed ROADM testing and 40G/100G service activation, maintenance and troubleshooting
2.Scales with your network: mix and match 40+ applications and hundreds of test configurations to meet your exact needs
3.Reduce test and post-processing time: enhanced processing capabilities, built-in pass/fail functionality, and
Automated test scripts drive best practices and close-out reports in PDF format
4.Connect anywhere: 3G, WiFi, Bluetooth, USB and Ethernet.
5.Remote guidance and support for field technicians with Smart Access Anywhere (SAA)
