Description

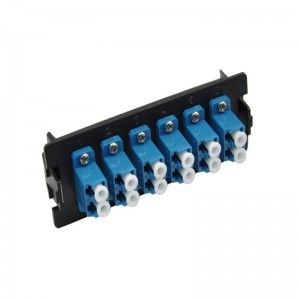

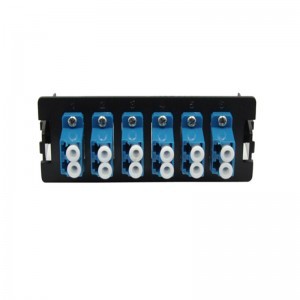

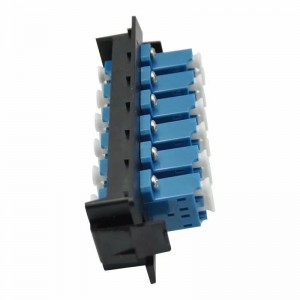

QYY- 6x LC UPC Duplex Adapter Ceramic Sleeve /12 Fibers Single Mode
Features:
. Connections: 12 Fibers
. Connection Type: 6x Single Mode LC Duplex 9/125
. Adapter Color: Blue
. Dimensions: 30mm*95mm
. Offered in LC, SC, FC,ST, MTP, and Blank Styles
. Clear Numbering for Quick Fiber Identification
. Use Zirconia Ceramic Split Sleeves for Higher Performance
. Tool-less snap in installation for easier moves, adds and changes
. For laser optimized multimode and Single Mode applications
Application：
. Local Area Network
. FTTH and FTTx
Specification:
|
No.of Adapter/Port |
6 |
Fiber Count |
12 Fibers |
| Adapter Type | LC Duplex | Fiber Mode | OS2 9/125μm |
| Material of Sleeve | Zirconia Ceramic | Material of Plate | ABS Plastic |
| Insertion Loss | ≤0.2dB (0.1dB Typ.) | Durability | 500 mating cycles |
| Dimensions (HxW) | 95MM*30MM | Application | Matching for (1U,2U,4U) Enclosures |
