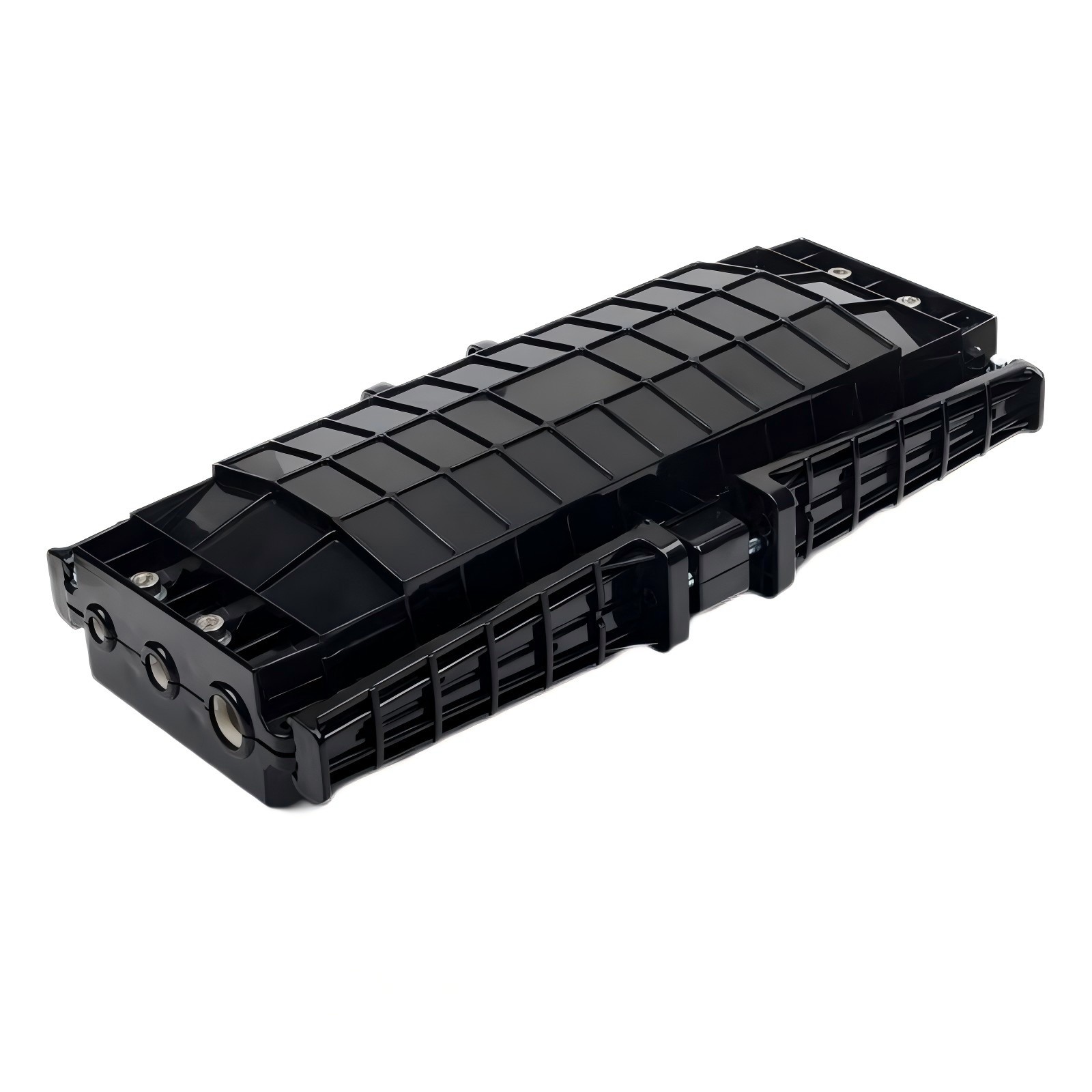

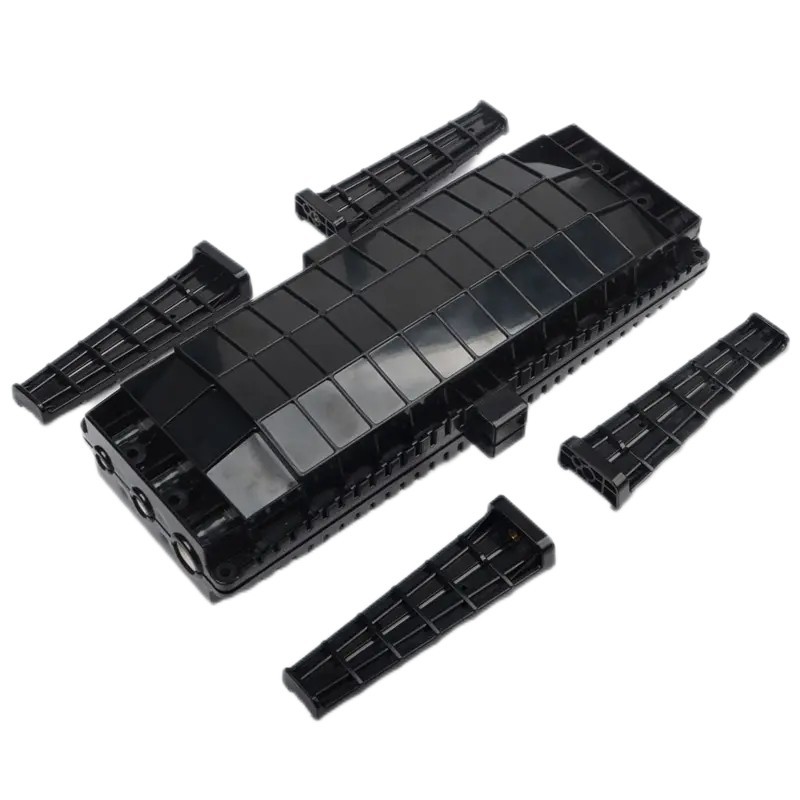

QYY- 96 Cores Fiber Optical Joint Closure Box

Material：ABS

Installation Type：Horizontal

Size (mm) ：450*220*110 mm

Ports：3 inlet port /3 out port φ23/15/11.5 mm

QYY- 96 Cores Fiber Optical Joint Closure Box

Feature：

. Suitable for ordinary fiber and ribbon fiber.

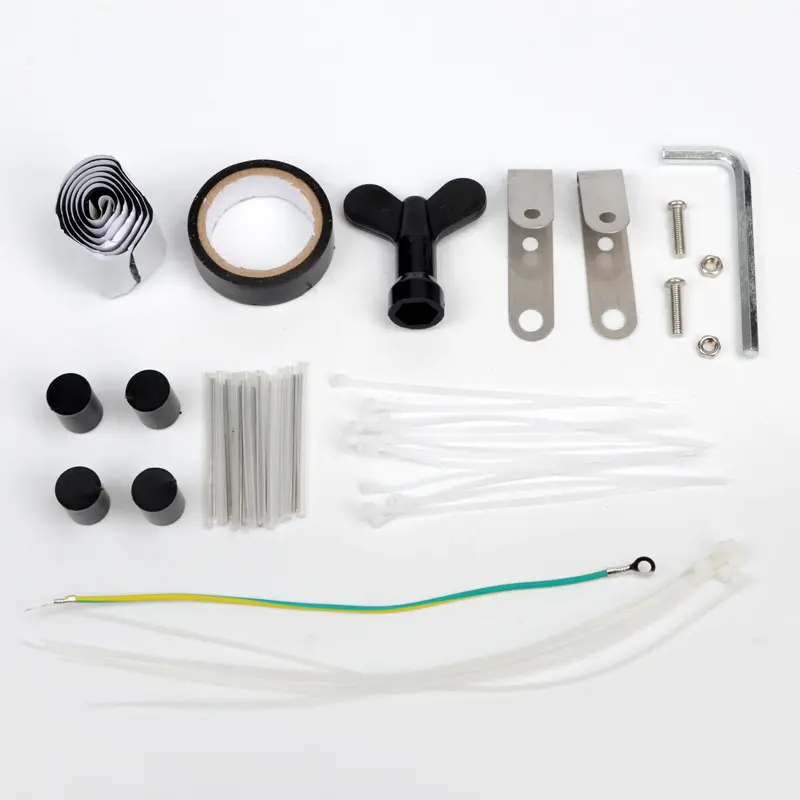

. Fully kitted with all parts for convenient operation.

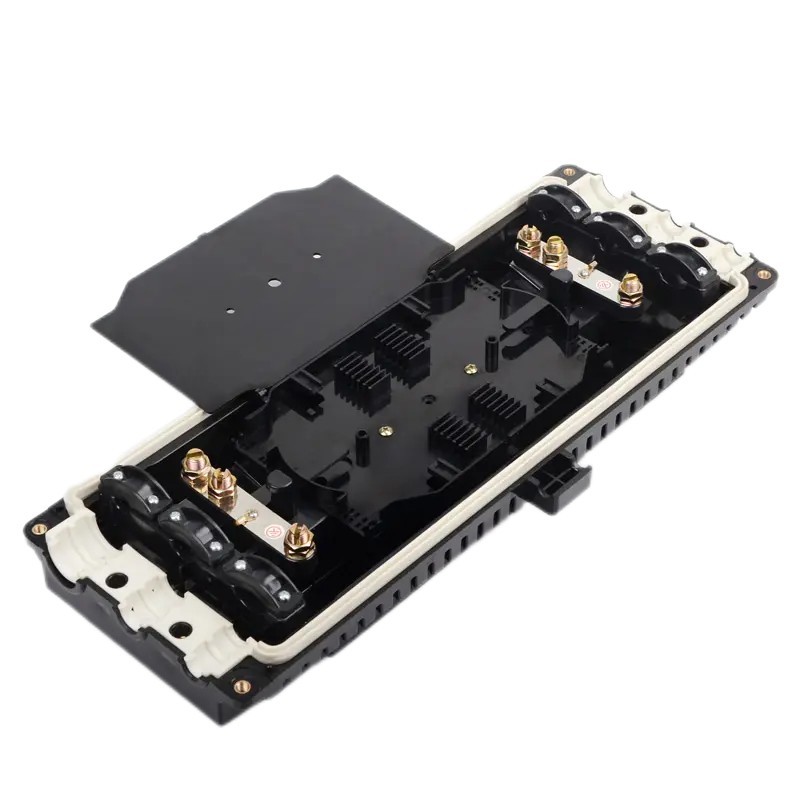

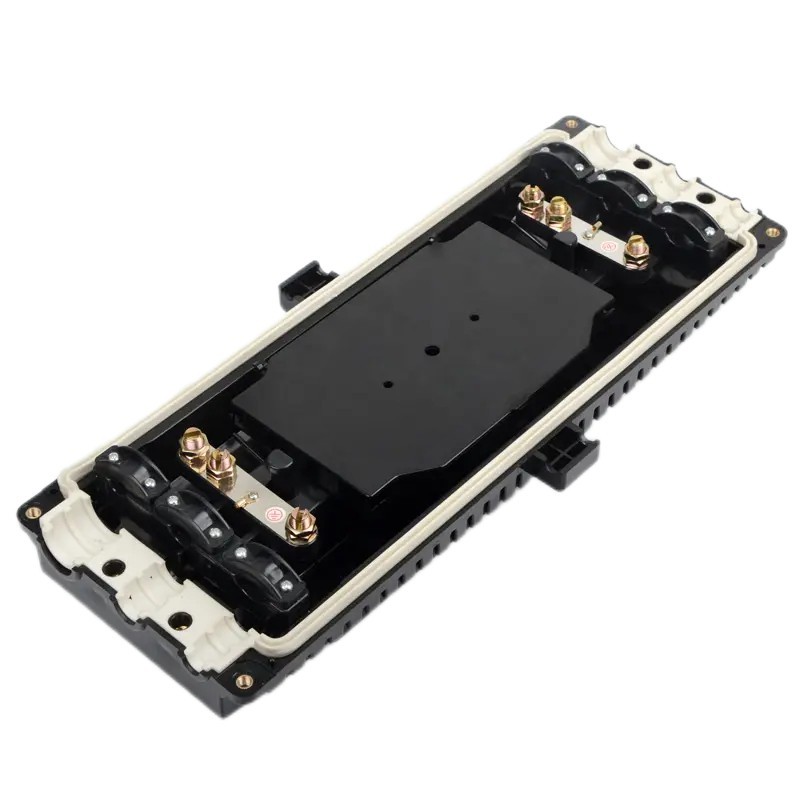

. Overlap structure in splicing tray for easy installation.

. Fiber-bending radium guaranteed more than 40mm.

. Easy to install and re-entry with a common can wrench.

. Excellent Anti-removable Screw Opening Type to protect fiber and splice ensuring durability.

. Stand up to severe condition of moisture,vibration and extreme temperatures.

Specifications：

Product name	Fiber Optic Joint Closure	IP Rate	IP68
Product Model	QYY-96B	Product size	450220110 mm
		Packing Size	480240115 mm
Ports	3 inlet port /3 out port	Packing Quantity	6 pcs / carton
	φ23/15/11.5 mm		504736mm 18.5kg
Max Core	24F/tray, max capacity 96F(4 trays)	Material	ABS
Installation Type	Horizontal	G. weight	2.7kg
Key Features:	1.Suitable for ordinary fiber and ribbon fiber.
	2.Fully kitted with all parts for convenient operation.
	3.Overlap structure in splicing tray for easy installation.
	4.Fiber-bending radium guaranteed more than 40mm.
	5.Easy to install and re-entry with a common can wrench.
	6.Excellent Anti-removable Screw Opening Type to protect fiber and splice ensuring durability.
	7.Stand up to severe condition of moisture,vibration and extreme temperatures.
