Description

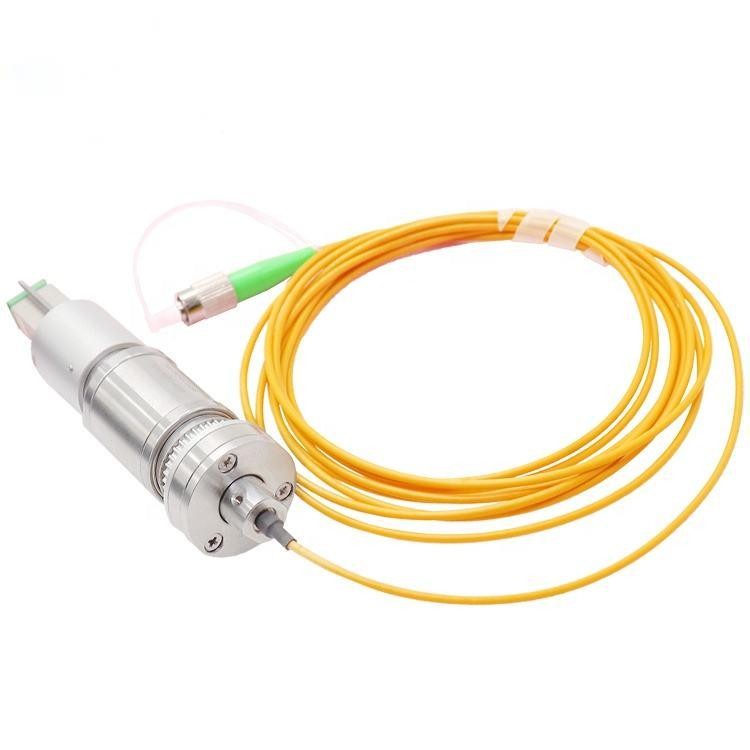

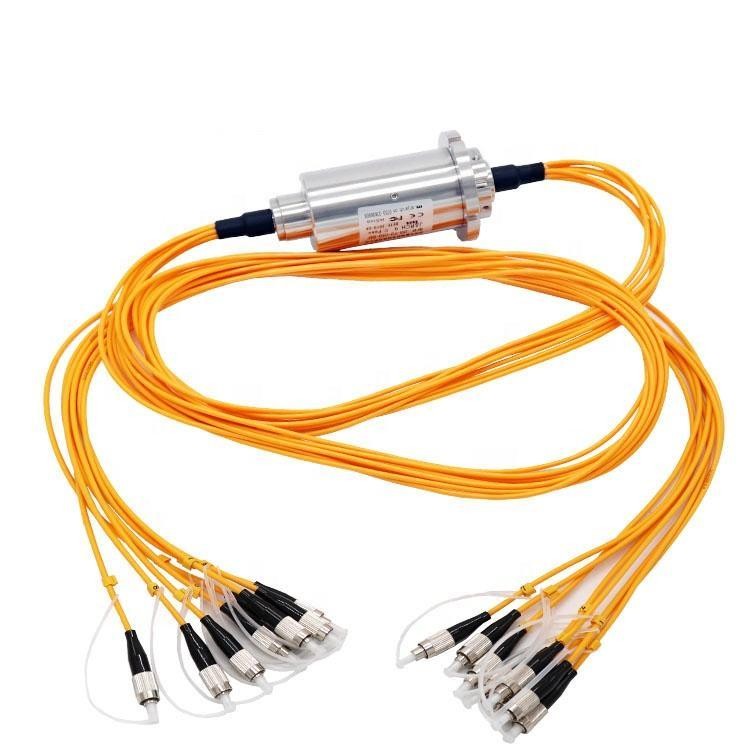

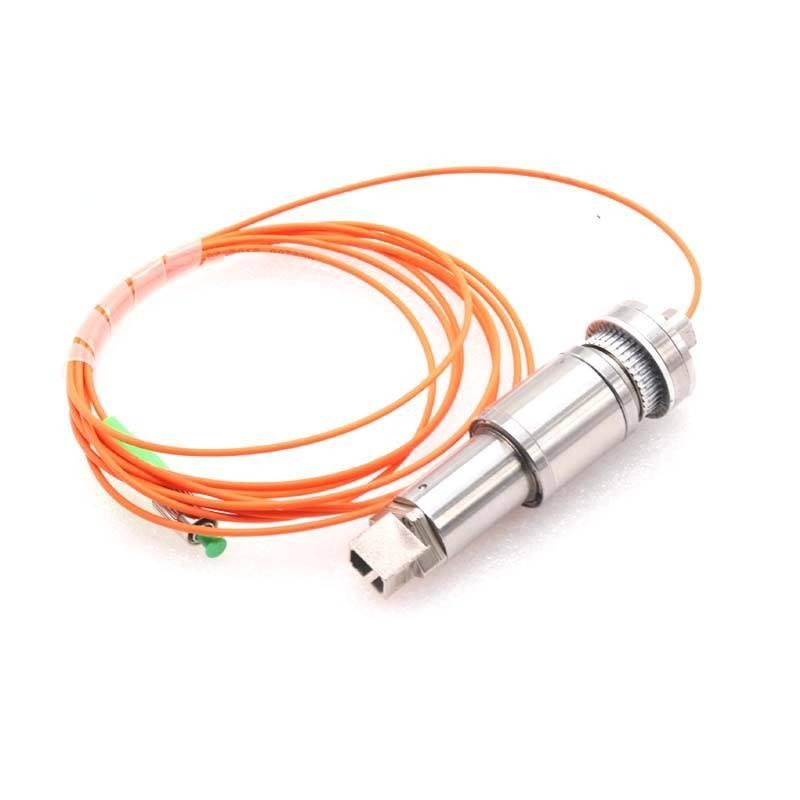

QYY- Fiber Optic Slip Ring Of OCT System
Specifications：
Wavelength range
1310-1550nm
Insertion loss
≤1.0dB
Insertion loss ripple
<+/-0.25 dB
Return loss (SM)
≥40 dB
Maximum speed
12000 rpm
Pulling strength
10 N
Start up torque
<0.01 Nm
Estimated life cycle
200-400 million revolutions
Optical power handling
23 dBm
Working temperature
-40°C to 85 °C
Storage temperature
-50°C to 85 C°C
Package style
Pigtails on both ends
Housing material
Stainless steel
Fiber types
Single w/3 mm jacket (Kevlar/PVC)
Connector types
FC, SC, ST,
Dimensions
25.4mm dia.
Weight
150 g
IP rating
IP54
Vibration
MIL-STD-167-1A
Mechanical shock
MIL-STD-810G
Features：
. Using light signal transmission, no electromagnetic leakage.
. Good sealing.
. Resistance to electromagnetic interference
. No contact transmission, no wear and tear.
. Long life, can be up to 10 million RPM.
. No friction, can be used in inflammable and explosive environment.
. Can be used in extreme natural environment.
. High magnetic current interference, also can work normally.
. Apply to single mode or multi mode photoelectric rotary connection
. Transmit signal via fiber optic,no disclose,no EMI
. Convenient to integrate power slip ring
Application：
. Radar system
. Medical equipment
. Military equipment
. Optional
. Fiber channel number
. Connector type
. Fiber type
. Fiber length
