Description

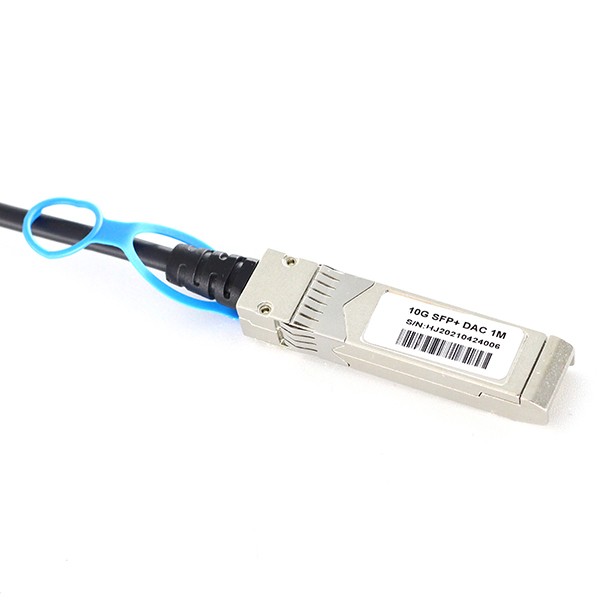

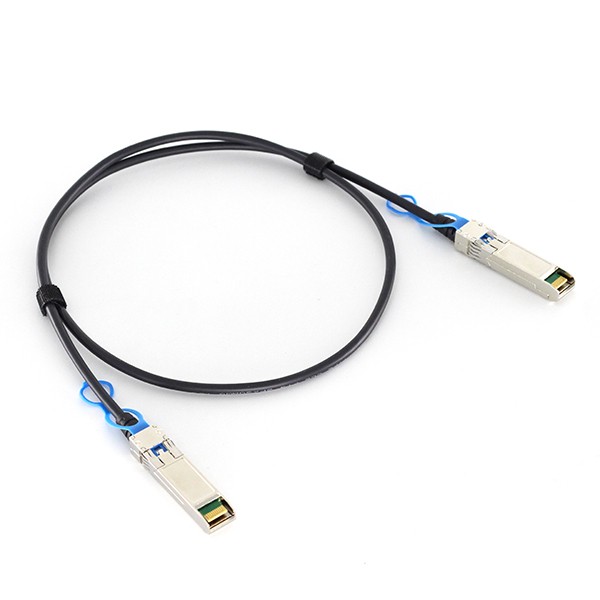

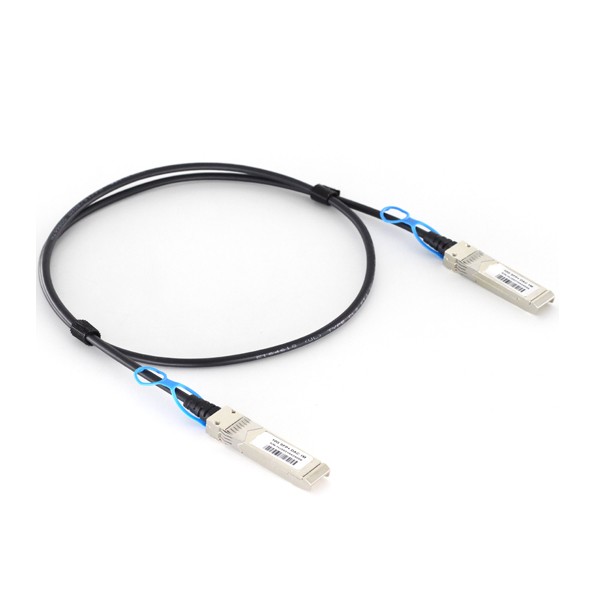

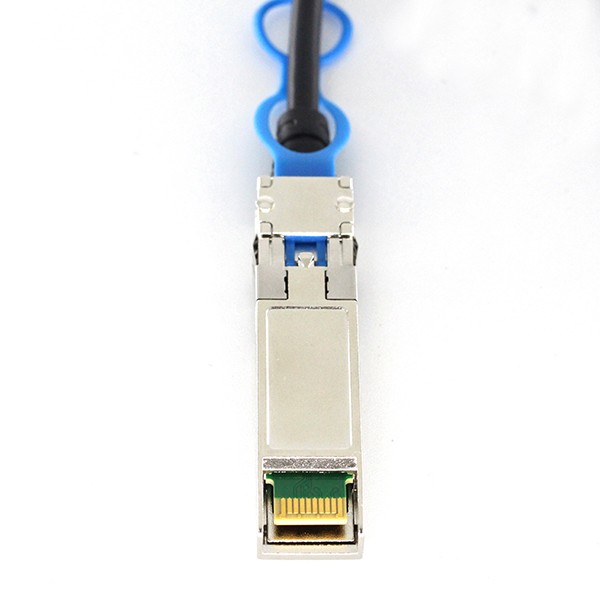

QYY- 10G SFP+ Direct Attach Cable
Features:
. Compliant with SFF- 8665
. Compliant with SFF-8431, 8432 and 8472.
. Up to 10.3125Gbps data rate per channel
. Up to 7m transmission
. Operating temperature:-40℃ to +80℃
. Single 3.3V power supply
. RoHS compliant
Compatible brands :
Parameter
Symbol
Min.
Typ
Max.
Units
Notes
Differential Impedance
Zd
90
100
110
Ω
Differential Input Return Loss
SDDXX
<-12+2* SQRT (f) with f in GHz
dB
0.01~4.1GHz
<-6.3+13*Log10/(f/5.5) with f in GHz
dB
4.1~11.1GHz
Common Mode Output Return Loss
SCCXX
< -7+1.6*f with f in GHz
dB
0.01~2.5GHz
-3
dB
2.5~11.1GHz
Difference Waveform Distortion Penalty
dWDPc
6.75
dB
VMA Loss
L
4.4
dB
VMA Loss to Crosstalk Ratio
VCR
32.5
dB
Applications:
. 10G Ethernet
