Description

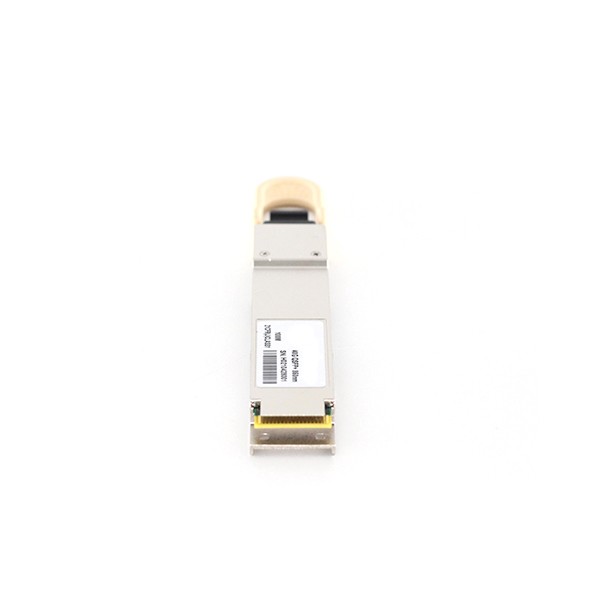

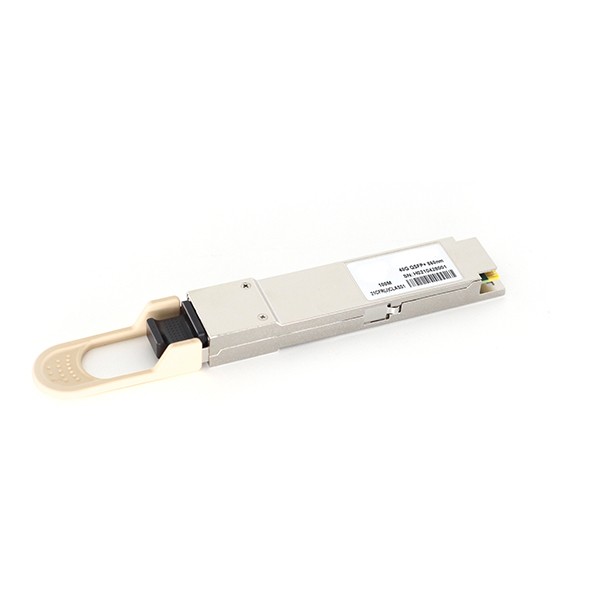

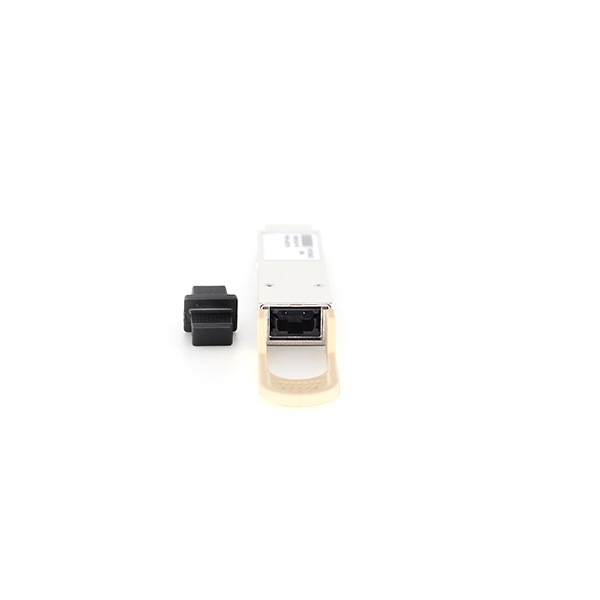

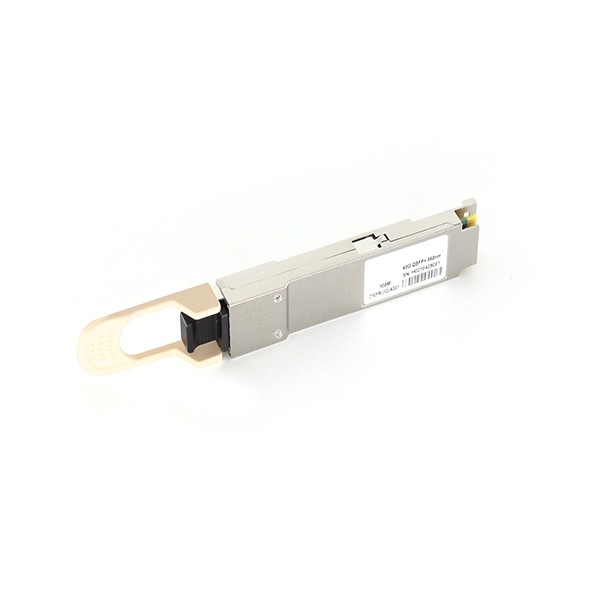

QYY- SFP-40G-SR4 Compatible QSFP+ 850nm Module
Features:
. 4 independent full-duplex channels
. Up to 11.2Gb/s data rate per channel
. High Reliability 850nm VCSEL technology
. MTP/MPO optical connector
. QSFP+ MSA compliant
. Electrically hot-pluggable
. Up to 100m transmission on OM3 multi-mode fiber or 150m links on OM4 multimode fiber
. RoHS compliant and lead-free
. Digital diagnostic capabilities
. Single +3.3V power supply
. Maximum power consumption 1.5W
. All-metal housing for superior EMI performance
. Case operating temperature
. Commercial: 0 ~ +70℃
. Industrial: -40 ~ +85℃
Compatible brands :
| QYY 40G QSFP+ SR4 Optical transceiver Module Compatible with the following brand and more | |
| QYY QSFP-40G-SR4 | Alcatel-Lucent QSFP-40G-SR |
| Arista Networks SFP-40G-SR4 | Palo Alto Networks PAN-40G-QSFP-SR4 |
| Juniper Networks SFPP-40GBASE-SR4 | D-Link DEM-QX01Q-SR4 |
| Dell Networking 430-4593 | F5 Networks F5-UPG-QSFP+ |
| Mellanox MC2210411-SR4 | Fortinet FG-trAN-QSFP+SR |
| ZTE QSFP-40GE-M150 | Gigamon QSF-502 |
| Extreme Networks 40GB-SR4-QSFP | Check Point CPAC-tr-40SR-SSM160-QSFP |
| Brocade 40G-QSFP-SR4 | APRESIA H-SR4-QSFP+ |
| HW QSFP-40G-SR4 | Allied Telesis QSFPSR4 |
| H3C QSFP-40G-SR4-MM850 | Chelsio SM40G-SR |
| Intel E40GQSFPSR | Edge-Core ET6401-SR4 |
| Ciena QSFP-SR4 | Ixia QMM850-PLUS |
| IBM Lenovo 00D9865 | MikroTik Q+85DMTP150D |
| Avago AFBR-79EQPZ | MRV QSFP-40G-SX |
| Avaya AA1404005-E6 | Quanta QSFP-SR4-40G |
Applications:
. 40G Ethernet
. Data Center
. Back to Back
. InfiniBand QDR
