Description

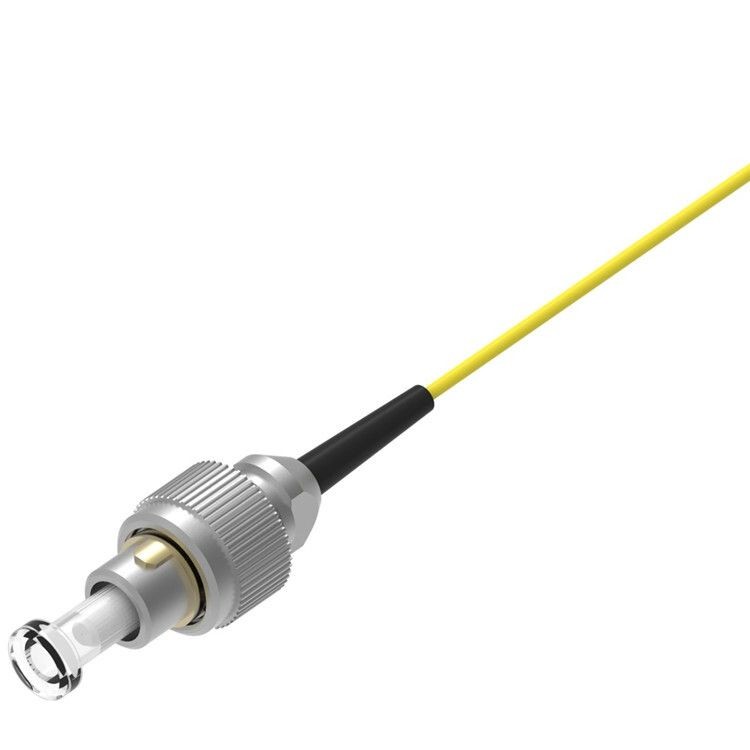

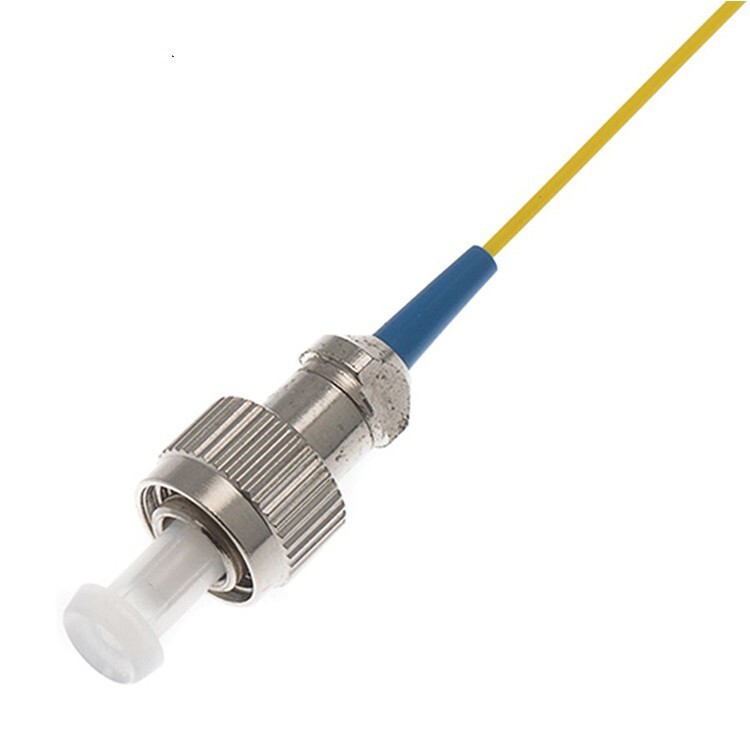

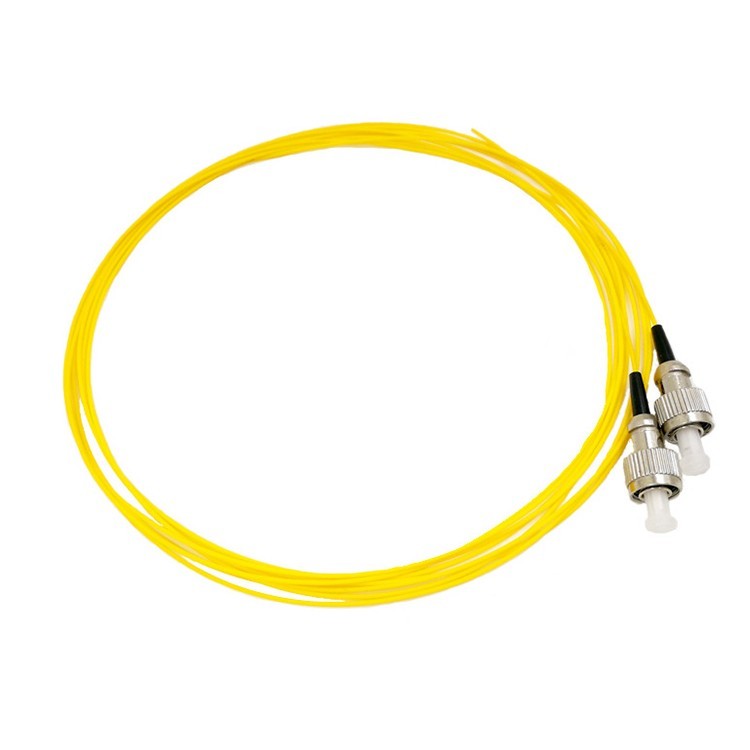

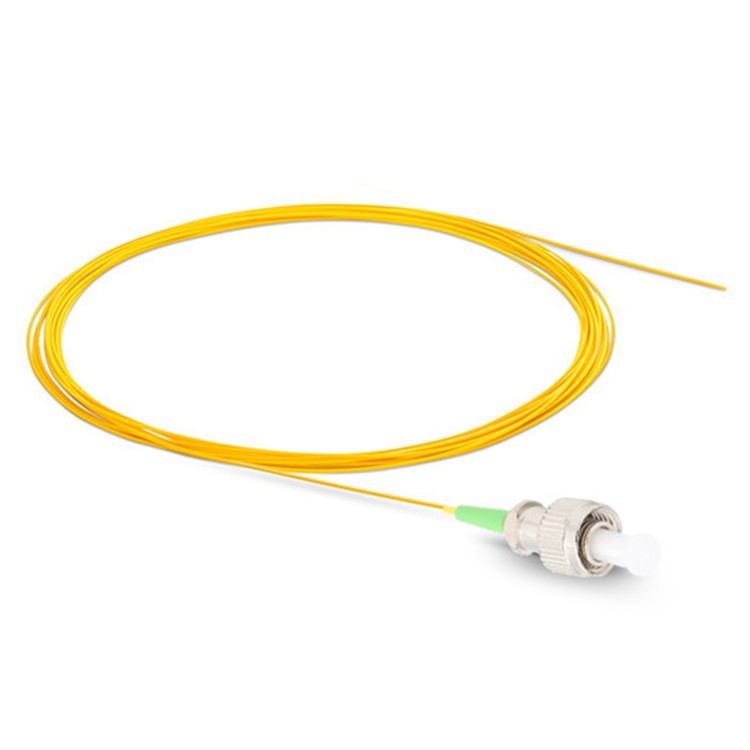

QYY- FC UPC OS2 Single Mode Simplex Tight Buffer 1 Meter Fiber Optic Pigtail
Features:
. Low insertion loss and back reflection loss
. Ferrule end surface pre-domed
. Excellent mechanical endurance
. Good in repeatability
. Good in exchange
. Green Production, CE, RoHS Standard
Application：
. Telecommunications
. CATV, LAN, MAN, WAN, Test &Measurement
. Military industry
. Medical
Specifications:
|
Parameter |
Single mode |
Multi mode |
|
Insertion loss |
≤0.3dB, typical ≤0.2dB |
≤0.30dB |
|
Return loss |
≥45dB(PC) |
≥35dB |
|
≥50dB(UPC) |
||
|
≥60dB(APC) |
||
|
Durability |
≤0.2dB typical change,1000 matings |
|
|
Repeat ability |
≤0.10dB |
|
|
Fiber Type |
Corning fiber 9um |
|
|
Operation temperature |
-40 ~ +75 |
|
|
Storage temperature |
-40 ~ +85 |
|
|
Operating wavelength |
1310/1550nm |
|
