Description

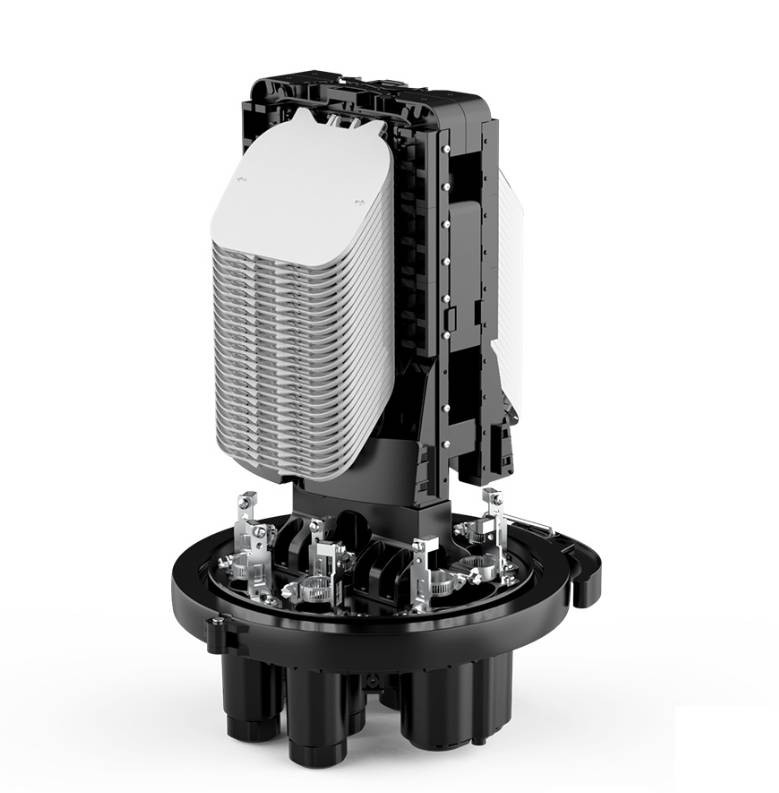

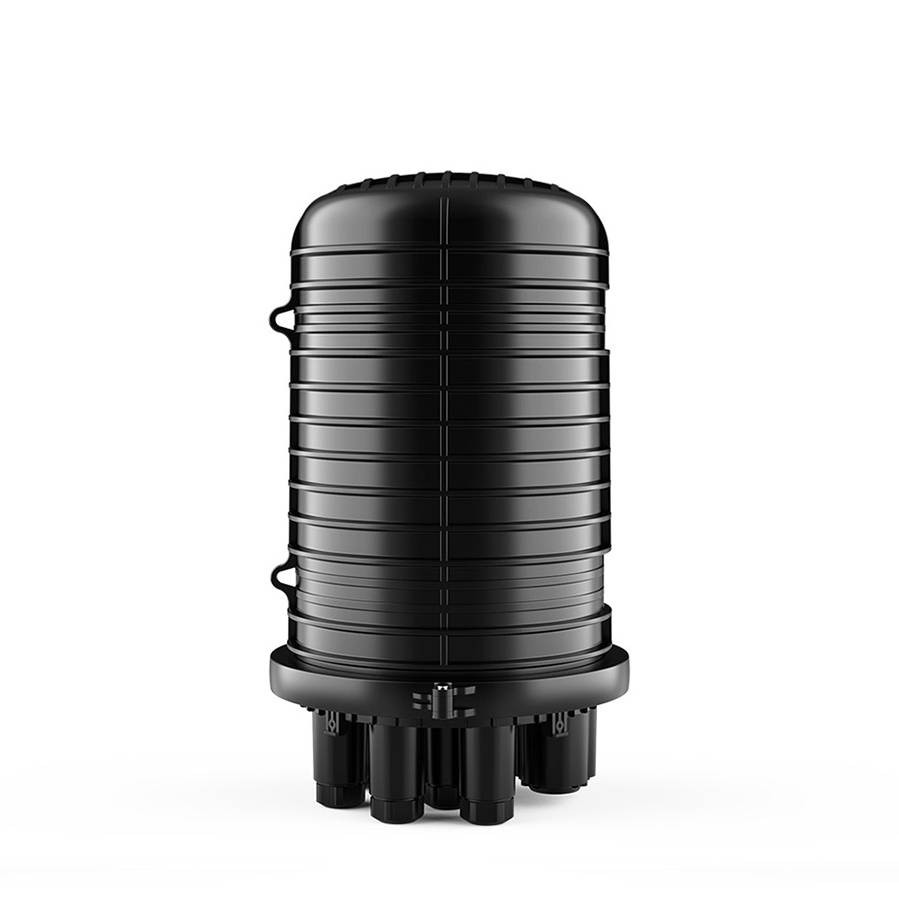

QYY- 576 Cores Fiber Optical Joint Closure Box
Features：
. The optical cable junction box adopts an innovative round cap structure design.
. The box cover and the box bottom are locked and sealed with a clamp, and the optical cable enters and exits at one end.
. The main function is to provide non-cuttable straight-through + fork and joint + fork and branch joint protection for various optical cables in the optical transmission link.
. It can play the role of straight-through, fork, splitting and wiring.
Specifications：
| Maximum external dimensions | 280mm(D)×478mm |
| Maximum capacity | 576 core |
| Capacity of each splice tray | 6 cores/piece 12 cores/piece 24 cores/piece |
| Maximum number of splice trays | 48 pictures |
| The number of inlet and outlet pipes of the optical cable | 9 pcs |
|
Different optical cable diameter ranges |
Ø8 ~ Ø22mm |
|
Protection level |
IP68 |
|
Impact strength |
IK10 |
|
Material |
Shell: modified PC/Splice tray: PC+ABS/Metal parts: stainless steel |
Application：
. Suitable for installation and use in overhead, pole line
. wall, manhole, pipeline, etc.
