  • QYY-Optical Fiber Node with AGC
  • QYY-Optical Fiber Node with AGC
  • QYY-Optical Fiber Node with AGC
QYY-Optical Fiber Node with AGC QYY-Optical Fiber Node with AGC QYY-Optical Fiber Node with AGC

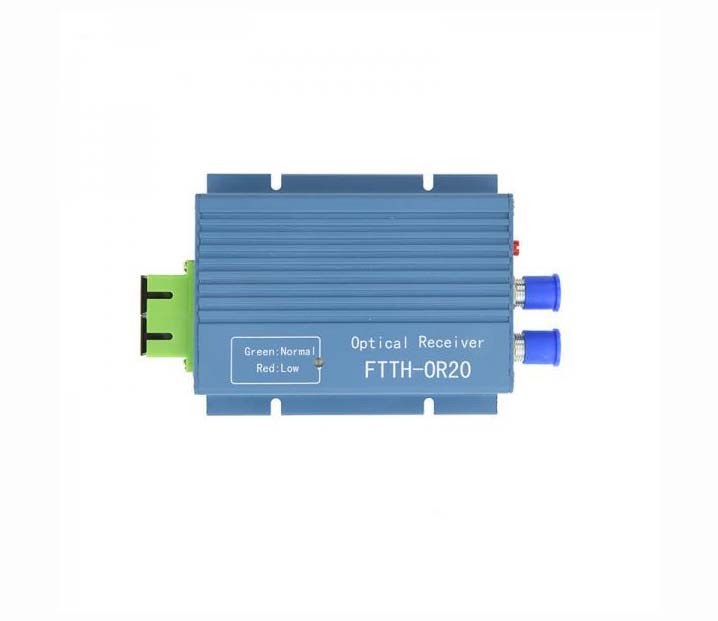

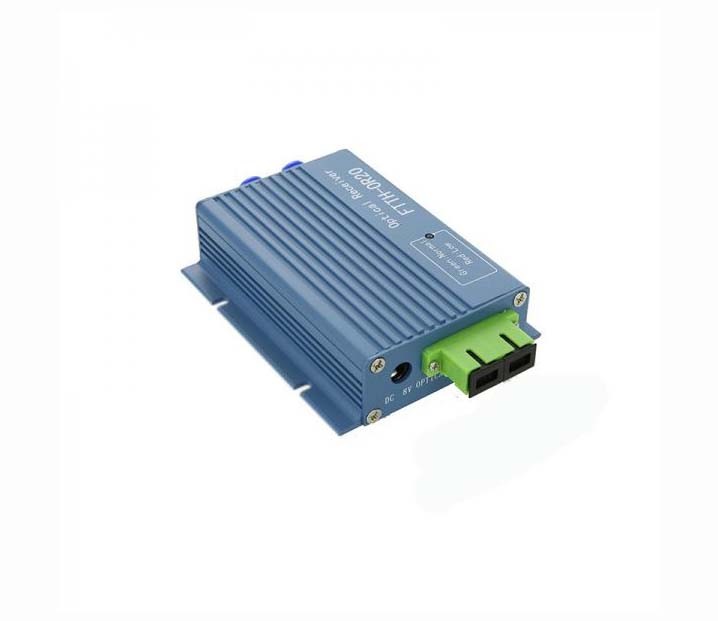

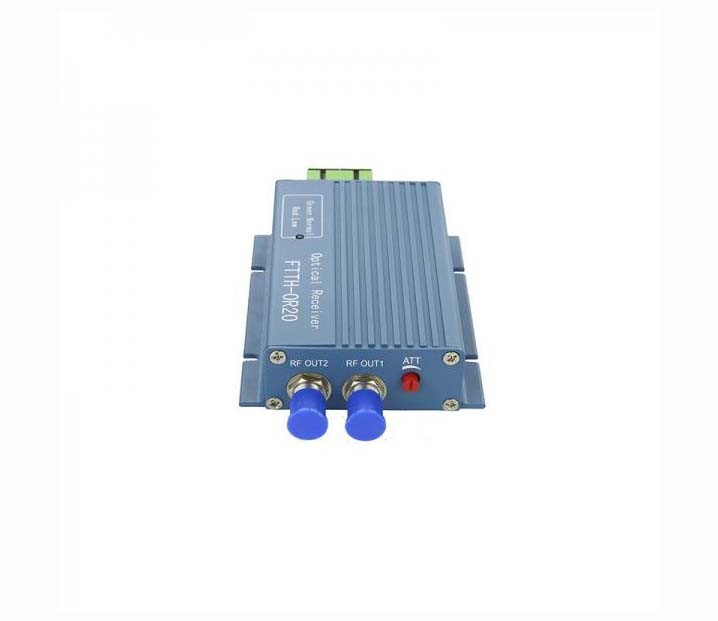

QYY-Optical Fiber Node with AGC

  • Model Number:Fiber Optic Receiver
  • RF Frequency :40~1006MHz
  • Wavelength:1310/1490/1550nm
  • Connector Type:SC FC
  • Inquiry Send Email

    Description

    QYY-Optical Fiber Node with AGC

    Features:

    1.Adopts WDM technology, single fiber to the home(1490/1310/1550nm) triple-play application can be realized.
    2.AGC control to guarantee relative stable RF input in different RF in. FTTH Optical Node FTTH Optical Node
    3.Small housing suitable for home use.
    4.12V~15VDC power supply. FTTH Optical Node
    5.Good parameter, but low power consumption


    Specification:

    Input optical power 0dBm~-10dBm(Analog signal) AGC Control range 0dBm~-9dBm
    &0dBm~-18dBm(Digital signal) CTB(note) ≥65dB
    optical reflection loss >45 dB CSO(note) ≥62dB
    Optical connector form FC/APC or SC/APC or FC/PC or SC/PC Host voltage DC5V
    Frequency Range 45~1006MHz Adapter voltage AC90V ~145V&AC145V ~ 265V or custom
    In-band flatness ±1dB@45~1006MHz Infeed voltage DC5V
    RF output reflection ≥16dB@ 47~550MH ; ≥14dB@1006MHz Operating temperature -20℃ ~+55℃
    Gain adjustment range 0-18dB power <1W
    Output level (78~80)dBuV(AGC:@-9~+0dBm,Pin=0dBm) Product net size 129×79×26mm
    Output port number 1or 2 10 pack sizes 313×245×83mm
    RF output impedance 75Ω FCL package size (100pcs) 500×440×345mm
    Carrier to Noise Ratio (Note) ≥51dB Product net weight 0.17kg

    Application:

    1.Typical solutions: FTTH, FTTB, PON+EOC
    2.Typical CATV, IPTV
    3.CATV FTTH
