Description

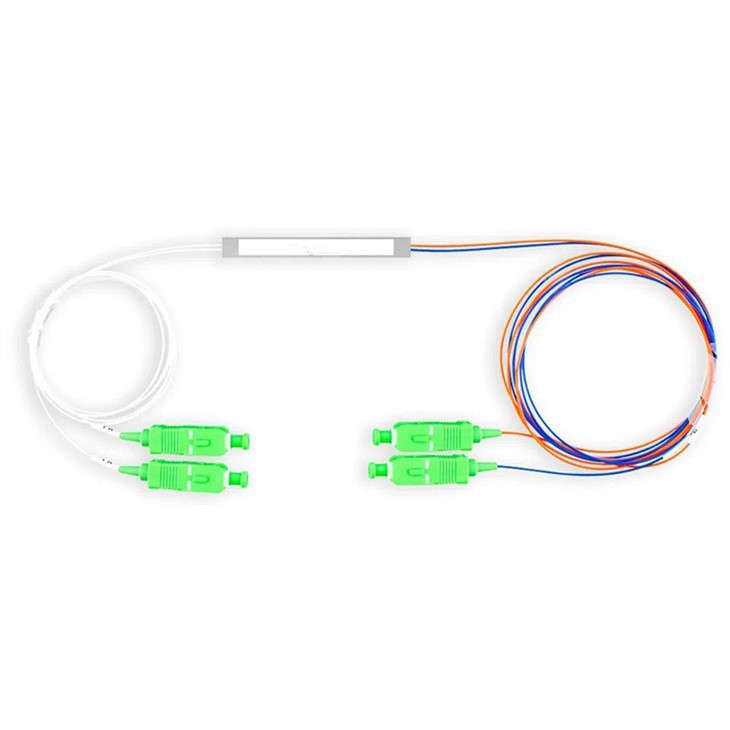

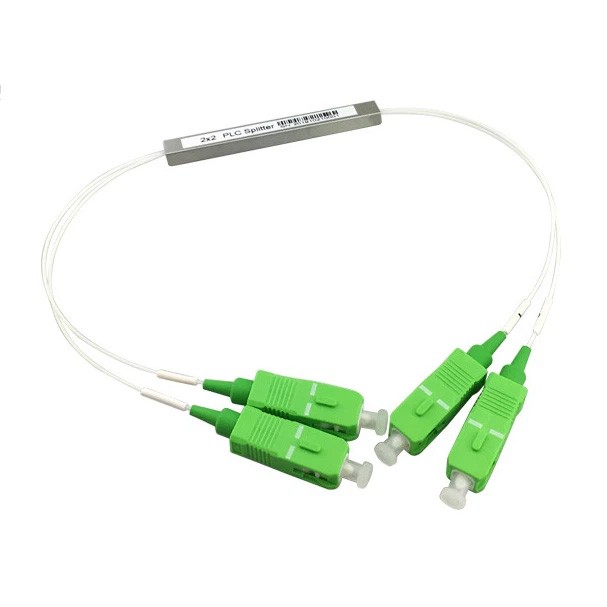

QYY- 2x2 Mini PLC Splitter
Features：
. Compact Size – The 2x2 Mini PLC Splitter is designed to be small and compact, making it easy to install in limited spaces.
. Customizable – The device is easy to customize to meet different customer requirements, including fiber type, connector type, and packaging.
. Cost-effective – The splitter is cost-effective, which makes it a viable option for various fiber optic network installations.
. High-Quality Build – The device is made of high-quality materials that make it durable, reliable, and long-lasting.
. Easy to Install – The splitter is easy to install and requires no special tools or equipment.
. Reliable Signal Distribution – The splitter provides a reliable means of distributing signals among multiple devices without signal loss.
Specifications:
|
Parameter |
Unit |
Specification (P Grade) |
||||||||||
|
Operation Wavelength |
nm |
1260～1650 |
||||||||||
|
Channel Number |
|
1X2 |
1x3 |
1X4 |
1x6 |
1X8 |
1x12 |
1X16 |
1x24 |
1X32 |
1X64 |
1x128 |
|
Insertion Loss(Max) |
dB |
4.3 |
6.2 |
7.2 |
9.8 |
10.5 |
12.5 |
13.6 |
16.５ |
17.2 |
21.0 |
25.5 |
|
Uniformity (Max.) |
dB |
0.5 |
0.6 |
0. 6 |
0.8 |
1.0 |
1.0 |
1.4 |
1.5 |
1.6 |
2.0 |
2.5 |
|
Polarization Dependent Loss |
dB |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
0.8 |
|
Return Loss |
dB |
≥55 |
||||||||||
|
Directivity |
dB |
≥55 |
||||||||||
|
Parameter |
Unit |
Specification (P Grade) |
||||||
|
Operation Wavelength |
nm |
1260～1650 |
||||||
|
Channel Number |
|
2X2 |
2X4 |
2X8 |
2X16 |
2X32 |
2X64 |
2x128 |
|
Insertion Loss (Max.) |
dB |
4.5 |
7.5 |
11.2 |
14.6 |
17.5 |
21.5 |
25.8 |
|
Uniformity (Max.) |
dB |
0.8 |
1.0 |
1.2 |
1.5 |
1.8 |
2.5 |
3.0 |
|
Polarization Dependent Loss |
dB |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
1.0 |
|
Return Loss |
dB |
≥55/50 |
||||||
|
Directivity |
dB |
≥55 |
||||||
Note: UPC Connectors: IL add 0.2 dB, APC Connectors: IL add 0.3 dB.
Application：
. FTTx Networks – The splitter is used in Fiber to the X (FTTx) networks to distribute optical signals from the central office to multiple subscribers.
. Data Centers – The splitter can be used in data centers to distribute signals among different switches and servers.
. CCTV Systems – The splitter can be used in Closed Circuit Television (CCTV) systems to distribute signals among different cameras.
. Telecommunication Services – The splitter is used in telecommunication services to distribute signals among different connections.
