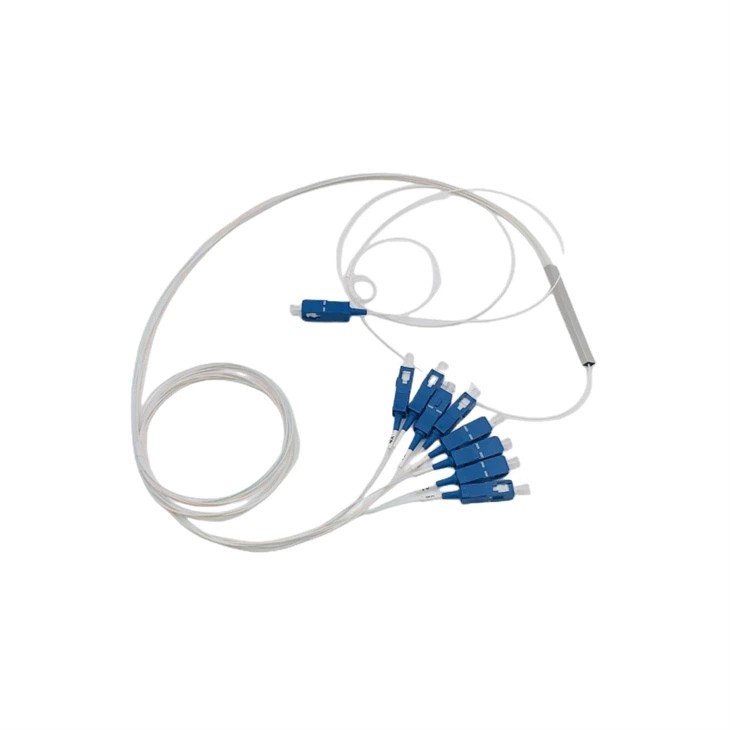

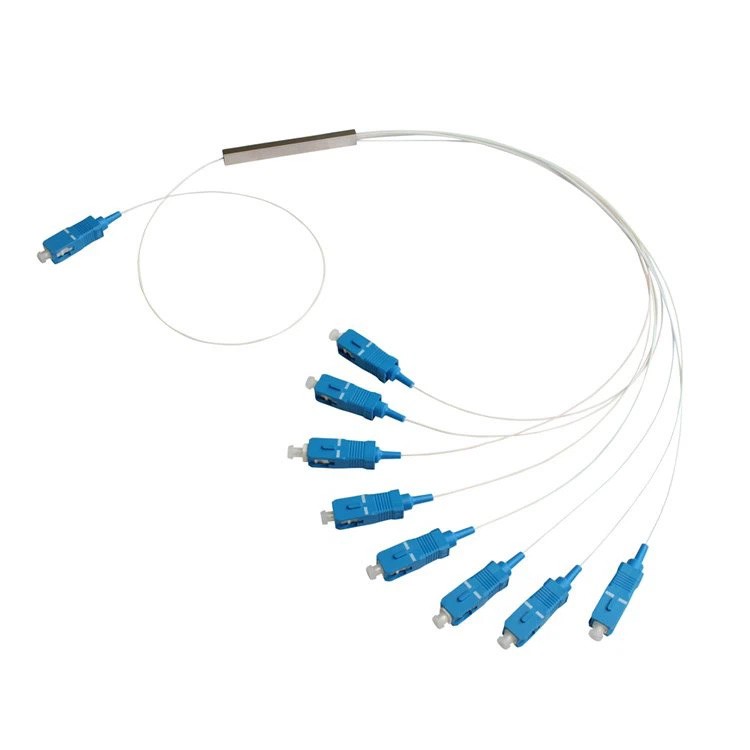

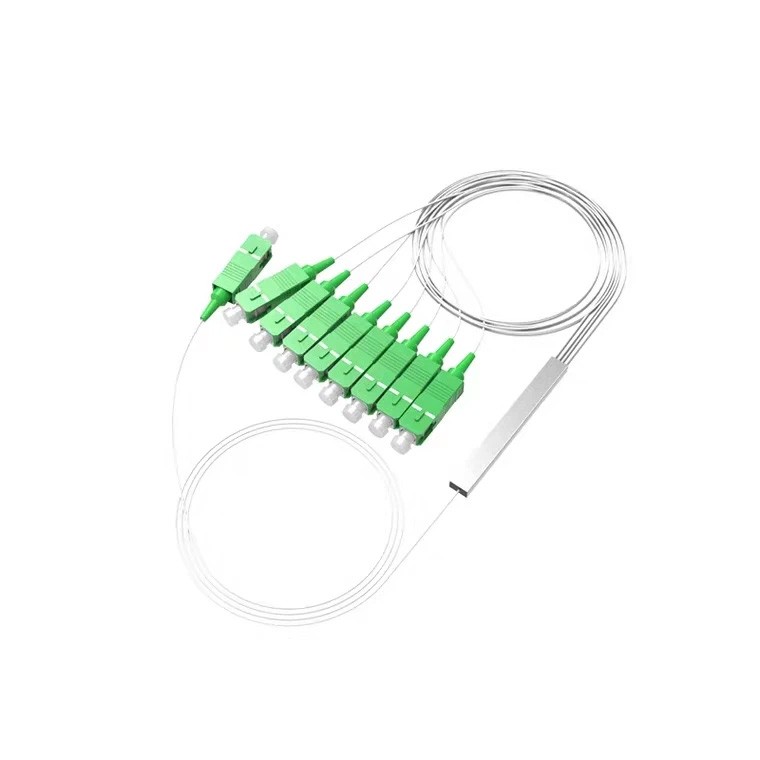

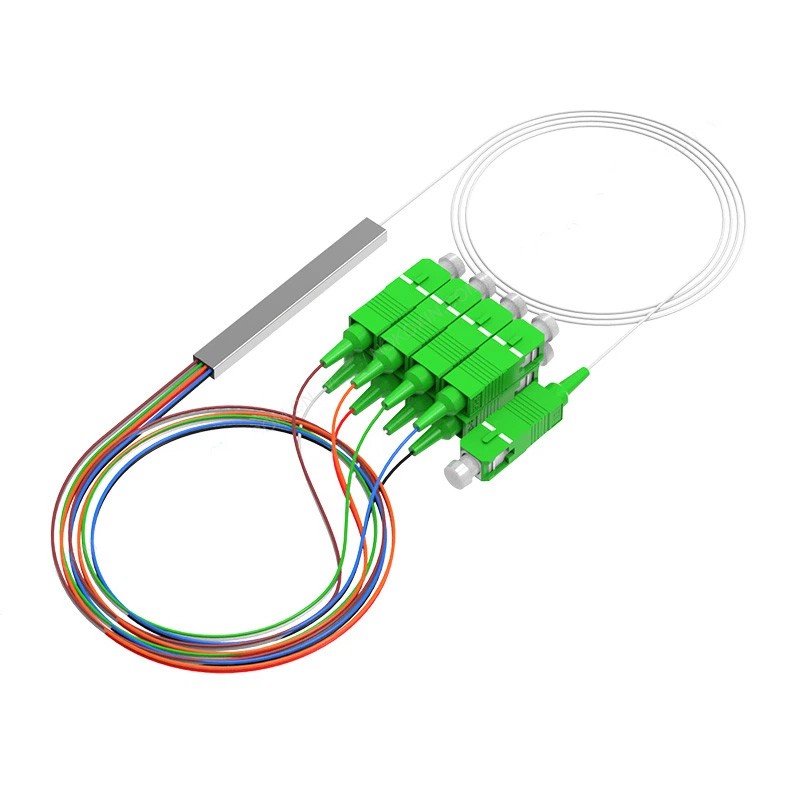

QYY- 1x8 Mini PLC Splitter

Name：1x8 Mini PLC Splitter

Operation Wavelength(nm)： 1260～1650

Return Loss(dB)：≥55/50

Directivity(dB)：≥55

Description

QYY- 1x8 Mini PLC Splitter

Features：

. Low Insertion loss and Low PDL

. Good channel-to-channel uniformity

. Wide Operating Wavelength: From 1260nm to 1650nm

. Wide Operating Temperature: From -40℃ to 85℃

. High Reliability and Stability

. Stability Telecordia GR-1221 and GR-1209

Specifications:

Parameter	Unit	Specification (P Grade)
Operation Wavelength	nm	1260～1650
Channel Number		1X2	1x3	1X4	1x6	1X8	1x12	1X16	1x24	1X32	1X64	1x128
Insertion Loss(Max)	dB	4.3	6.2	7.2	9.8	10.5	12.5	13.6	16.５	17.2	21.0	25.5
Uniformity (Max.)	dB	0.5	0.6	0. 6	0.8	1.0	1.0	1.4	1.5	1.6	2.0	2.5
Polarization Dependent Loss	dB	0.2	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.5	0.8
Return Loss	dB	≥55
Directivity	dB	≥55

Parameter	Unit	Specification (P Grade)
Operation Wavelength	nm	1260～1650
Channel Number		2X2	2X4	2X8	2X16	2X32	2X64	2x128
Insertion Loss (Max.)	dB	4.5	7.5	11.2	14.6	17.5	21.5	25.8
Uniformity (Max.)	dB	0.8	1.0	1.2	1.5	1.8	2.5	3.0
Polarization Dependent Loss	dB	0.2	0.3	0.3	0.3	0.3	0.5	1.0
Return Loss	dB	≥55/50
Directivity	dB	≥55

Note: UPC Connectors: IL add 0.2 dB, APC Connectors: IL add 0.3 dB.

Application：

. Telecommunication Networks: This splitter is ideal for fiber-to-the-home (FTTH) and fiber-to-the-building (FTTB) applications.

. CATV Networks: The splitter is compatible with a range of communication equipment used in cable television networks,

making it an ideal choice for this industry.

. Data Centers: The splitter supports data transmission at high speeds and supports a variety of protocols, making it ideal for data center communication.
