Description

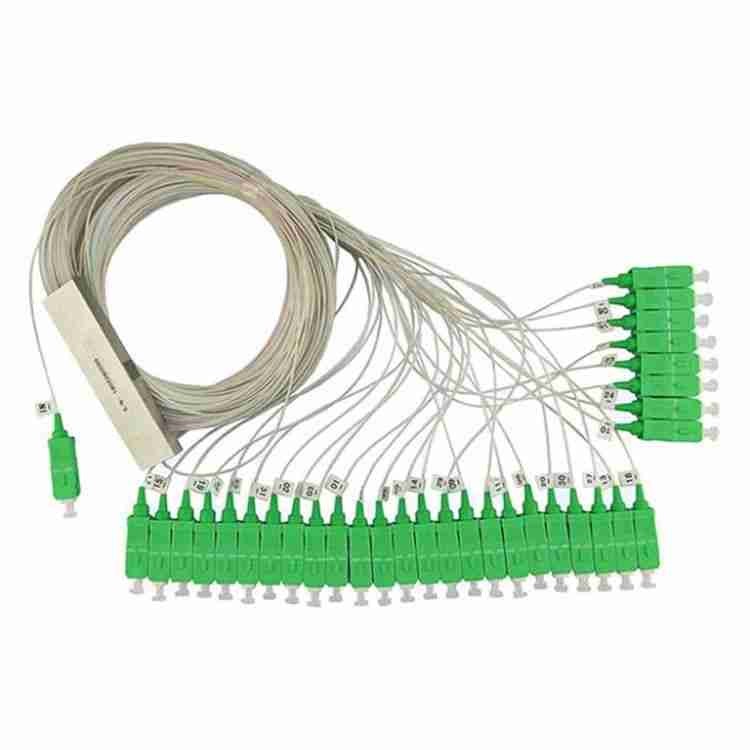

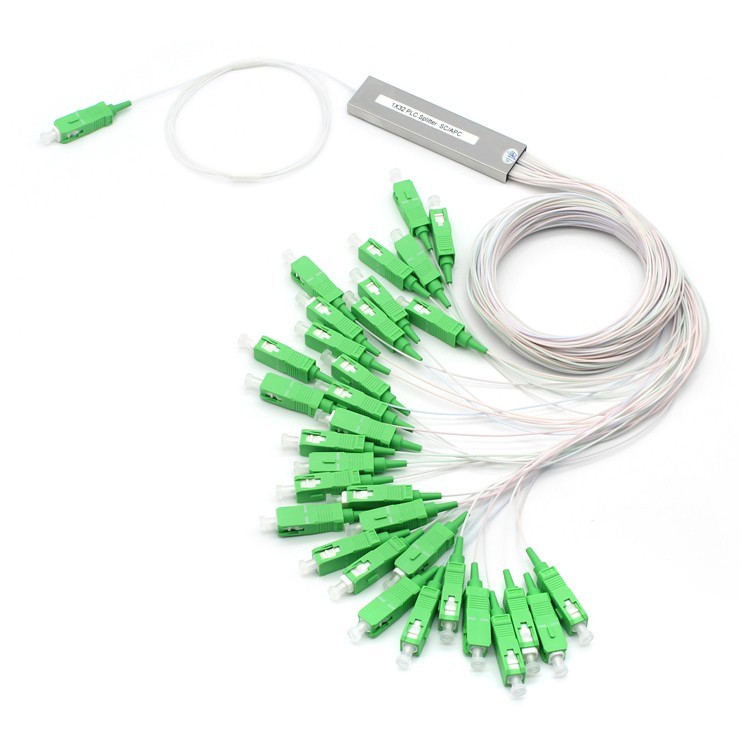

QYY- 1x32 SC APC PLC Mini Optical Splitter
Features:
1. High Quality PLC design features a protective metal casing around the fibers
2. PLC splitting mechanism divides input signal into equal parts across all output fibers
3. 900µm loose tube fiber for easy stripping, splicing, or terminating
4. Also available pre-terminated with LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, and ST/UPC.
Specifications:
Product Name
Mini PLC Splitter 1X2
Type
Mini PLC
Ferrule Polish End-face
PC,UPC,APC
Fiber Type
LC,FC,SC,ST
Application
gepon,ftth ,fttx
Insertion Loss
4-22dB
Fiber Length
1m ,1.5m, 2m or customized
Sleeve Diameter
2.0mm,3.0mm,0.9mm
Package
bare, module, rack mount,ABS case
Wavelength
1310/1490/1550nm
Product Keywords
-40~85℃Splitter 1x2 SC APC,Optical Splitter 1x2 SC APC,250um Splitter 1x2 SC APC
Application:
. Fiber to The Home (FTTH)
. Passive optical networks (PON)
. Local Area Networks (LAN)
. Cable Television (CATV)
. Test Equipment
