Description

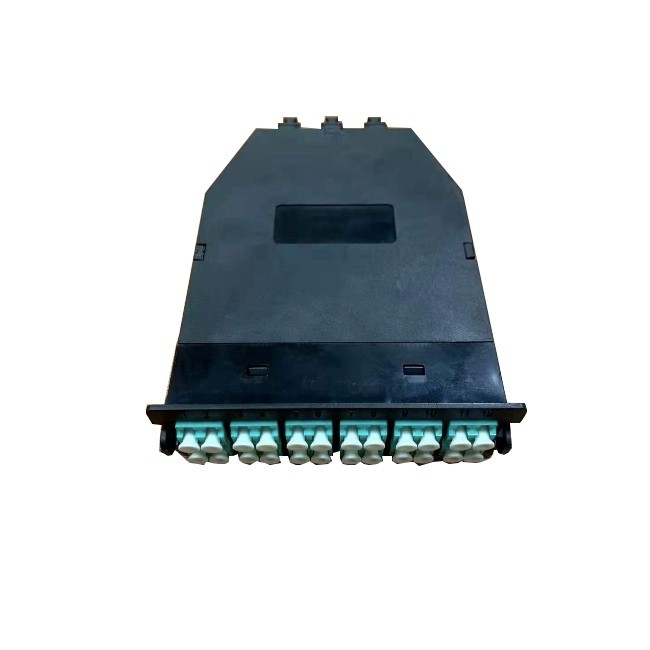

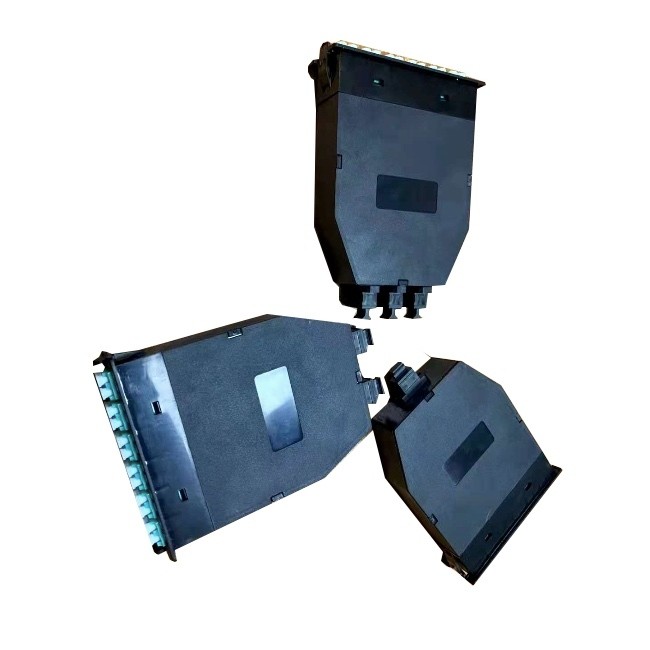

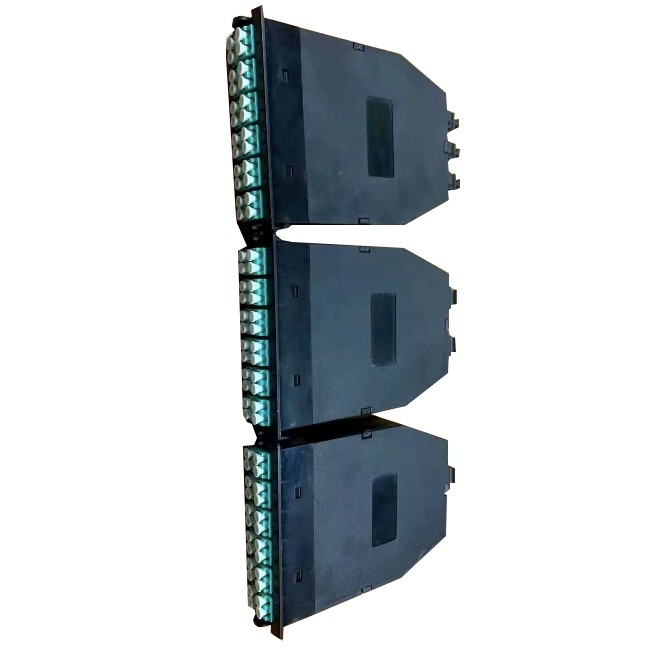

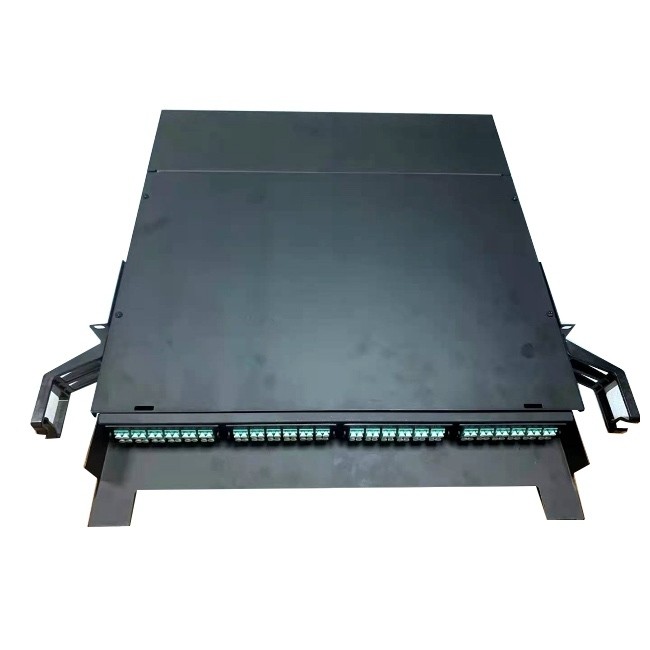

QYY- 1U4MDC 1U MTP/MPO LC 96 Fibers Optic Patch Panel chassis 4 Modules
Features:
. 19" rack mount, Color black.
. Baffles are used where adapters are not installed.
. Reliability - 100% Tested.Factory terminated and tested.
. Front cable management function:Cable can be routed to the front of
. the cable management bar, either from the left or the right side.
. Rear cable management function:Cable can be routed to the rear of the
. cable management bar, from both sides.
. 1U patch panel capacity comes up to 2F fully loaded , up to
. 12 MPO/MTP® standard connectors.
Ordering Information：
Product Description: 1U4MDC - SP - B - 9005 - 8×12MTP/PC - LC/UPC - OM3 - 1U
1 2 3 4 5 6 7 8 9
. - Model 1U4MDC
. - Body Materials
SP: SPCC(cold rolled steel sheet)
. - Painting Finish
B: powder coat matt finish
. - Painting Color
9005: RAL black
. - Patch cord Quantity
8×12 : 8pcs of 12F ; 12×12: 12pc of 12F ; 4×24 : 4pc of 24F; 6×24 : 6pc of 24F
. - Connector A
MPO/PC; MPO/APC; MTP/PC; MTP/APC
. - Connector B
LC/UPC; LC/APC
. - Fiber Mode
G657A1; OM1; OM2; OM3; OM4
1U
. - Panel Height
Note：1. MP4-2U fully loaded with 144Fibers.
. Baffles are used where adapters are not installed.
. Empty frame w/o Adapters Description:OMP2-SP-B-9005-EM-1U
. Fiber to the home (FTTH)
. LAN / WAN
. CATV
