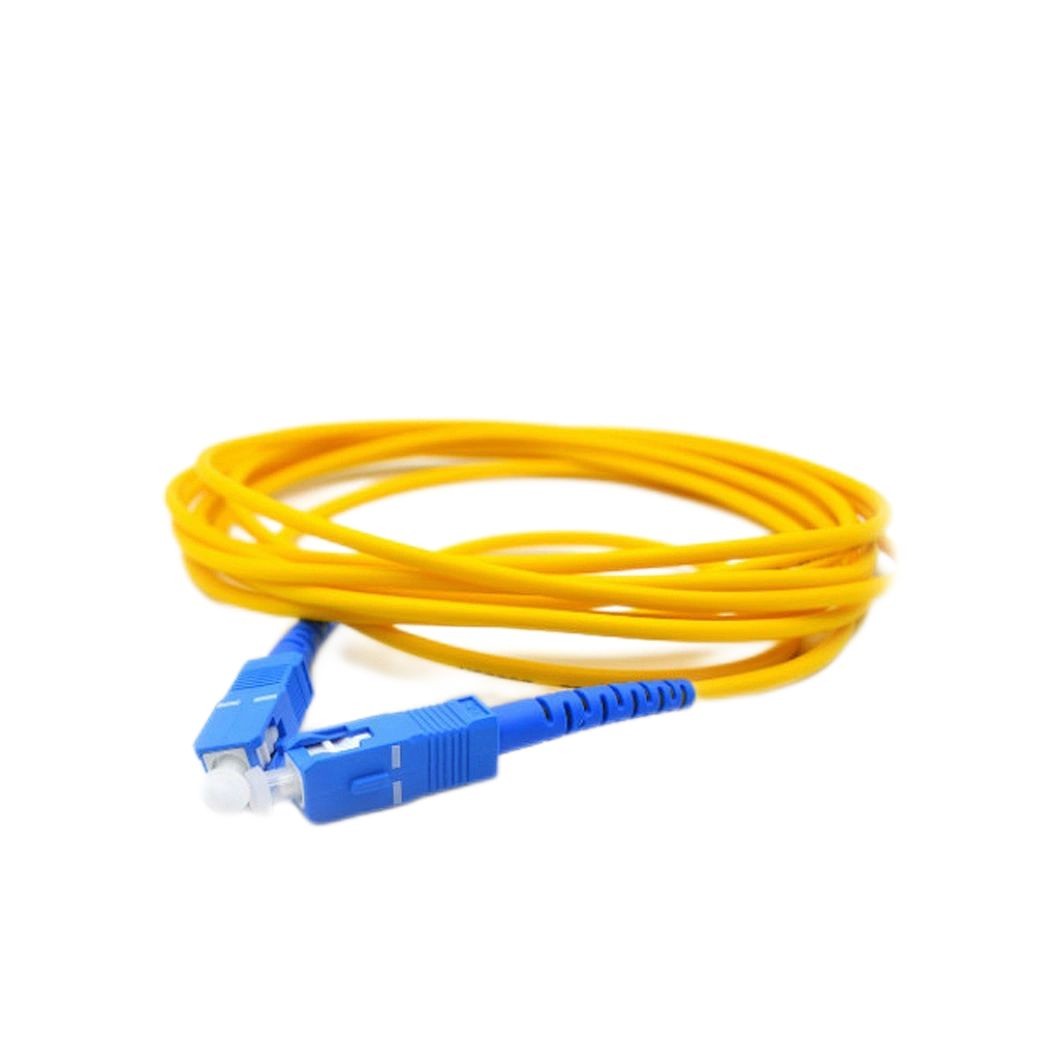

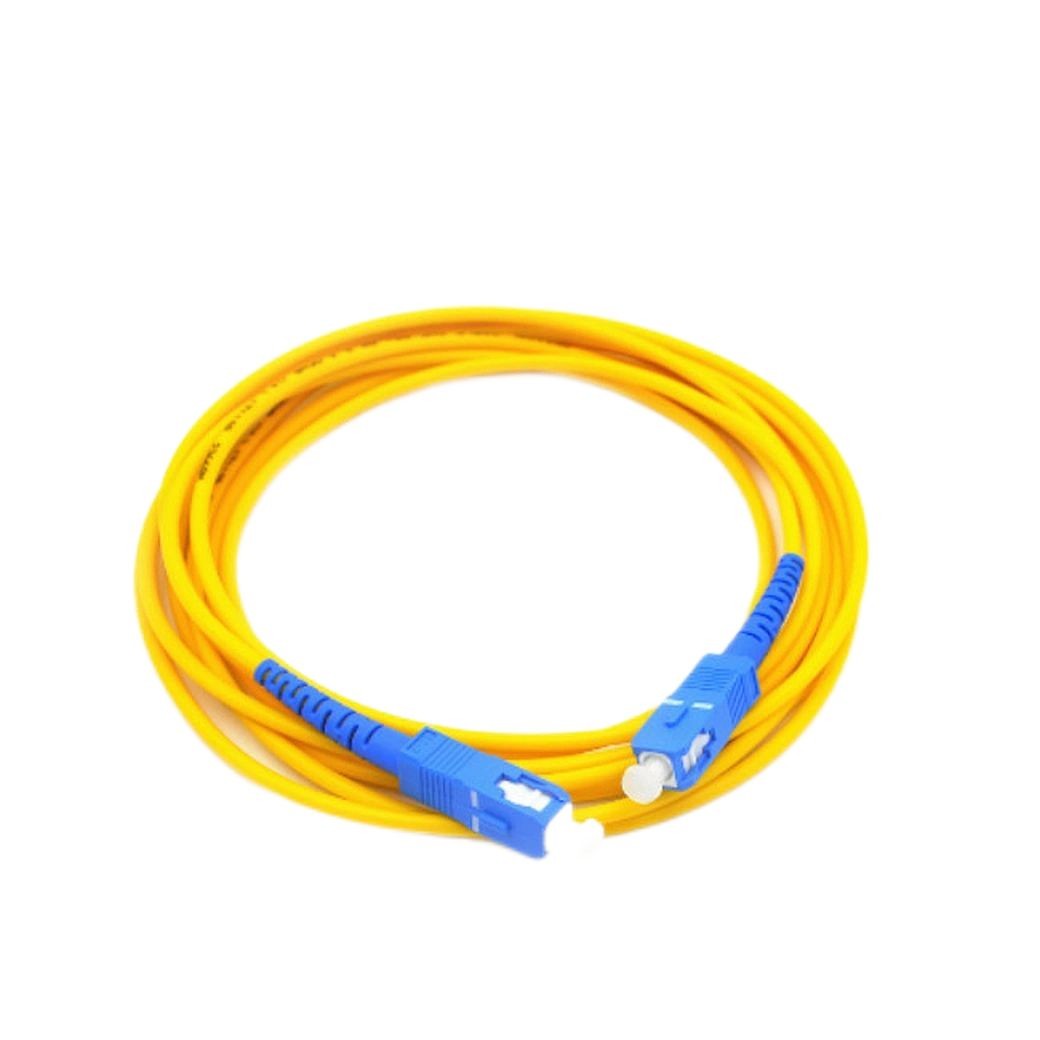

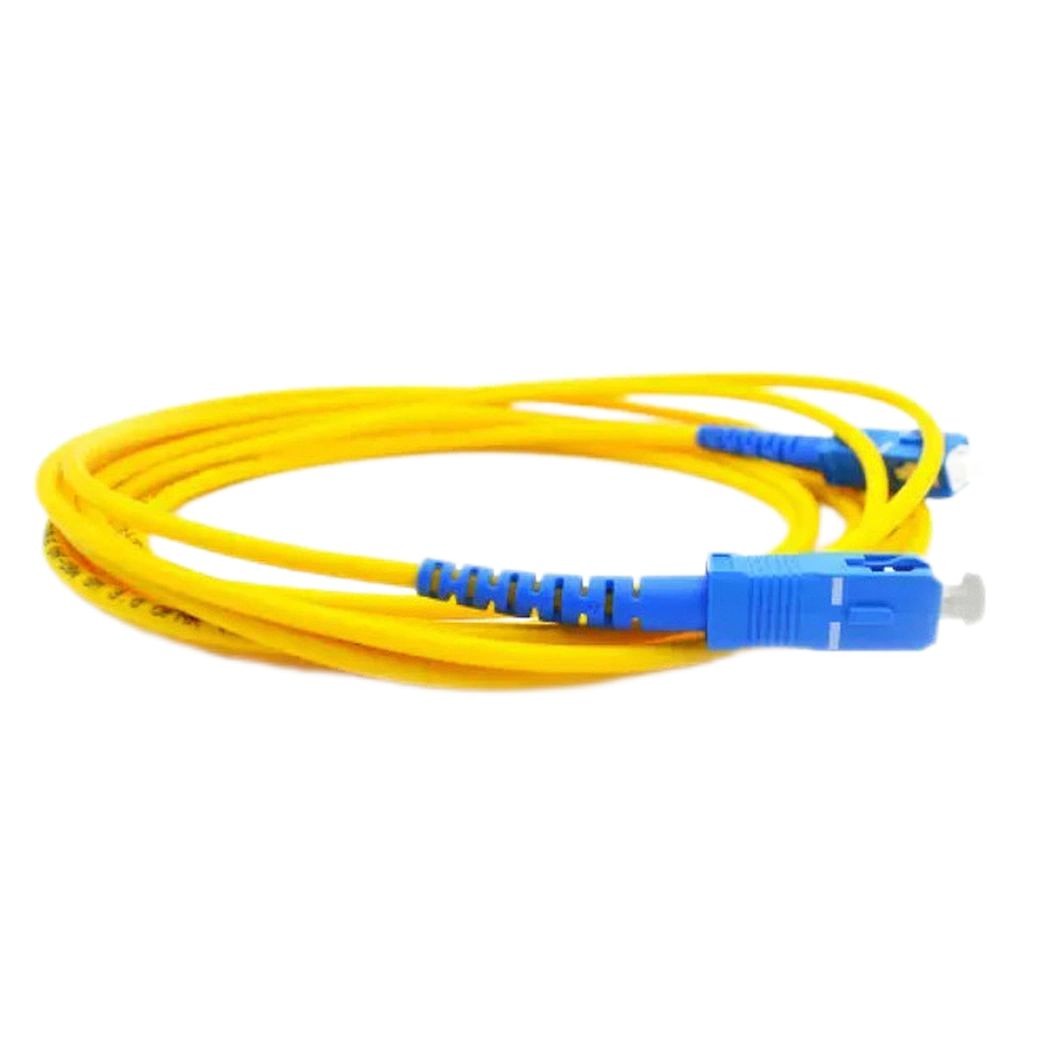

QYY- Fiber Optic Patch Cord with SC UPC Simplex 3.0mm PVC
Features:
. Low insertion loss High back reflection loss
. Excellent mechanical endurance
. High credibility and stability
. Good in repeatability and exchangeability
Application：
. Gigabit Ethernet
. Optical access network
. Data processing networks
. Fiber optic communication networks
Specification:
Simplex Fiber Optic Patch Cord Connector Performance Specification:
|
Connector Type |
FC, SC, LC, ST, MU, MTRJ |
|||
|
Fiber Type |
SM(G.652D/G.657A) |
MM(OM1/OM2/OM3/OM4) |
||
|
Ferrule End-face |
PC |
UPC |
APC |
UPC |
|
Insertion Loss |
≤0.2dB |
≤0.2dB |
≤0.3dB |
≤0.3bB |
|
Return Loss |
≥50dB |
≥55dB |
≥60dB |
≥35dB |
|
Exchangeability |
≤0.2dB |
|||
|
Repeatability |
≤ 0.1dB(1000 times) |
|||
|
Durability |
> 1000 times |
|||
|
Operating Temperature |
-40°C ~ +85°C |
|||
Fiber Optic Cable Performance Specification:
|
iber type |
Min. Bandwidth |
Distance |
Attenuation |
|
62.5/125 |
850/1300nm |
@100Mbps 2km @1Gig 220m |
850/1300nm |
|
50/125 |
850/1300nm |
@100Mbps 2km @1Gig 500m |
850/1300nm |
|
50/125 |
850/1300nm |
@100Gig Varies by VCSEL typical 300m 2850nm |
850/1300nm |
|
9/125 |
1310/1550nm |
Up to 100km Varies by transceiver |
1310/1550nm |
Order Information:
| SC/UPC-SC/UPC-MM-DX-3.0mm-5M | ||||||||||||||||
|
SC |
/ |
UPC |
— |
SC |
/ |
UPC |
/ |
SM |
— |
SX |
/ |
3.0 |
— |
5M |
||
|
1 |
2 |
3 |
2 |
4 |
5 |
6 |
7 |
|||||||||
|
1 |
Connector#1: LC,SC,FC,ST,DIN,D4,MU,MTRJ,etc. |
|||||||||||||||
|
2 |
Lapping Way: UPC&APC (For MTRJ, F=Female, M=Male) |
|||||||||||||||
|
3 |
Connector#2: LC,SC,FC,ST,DIN,D4,MU,MTRJ,Pigtail,etc. |
|||||||||||||||
|
4 |
Cable Type: SM(9/125μm) ,MM(50/125μm & 62.5/125μm), OM3, OM4 |
|||||||||||||||
|
5 |
Fiber Number: SX(Simplex) or DX(Duplex), 2/4/6/8 core... |
|||||||||||||||
|
6 |
Cable Diameter: 2.0=Ø2.0mm, 3.0=Ø3.0mm, 0.9=Ø0.9mm, etc. |
|||||||||||||||
|
7 |
Cable Length: 3m(Length in meter) |
|||||||||||||||
