Description

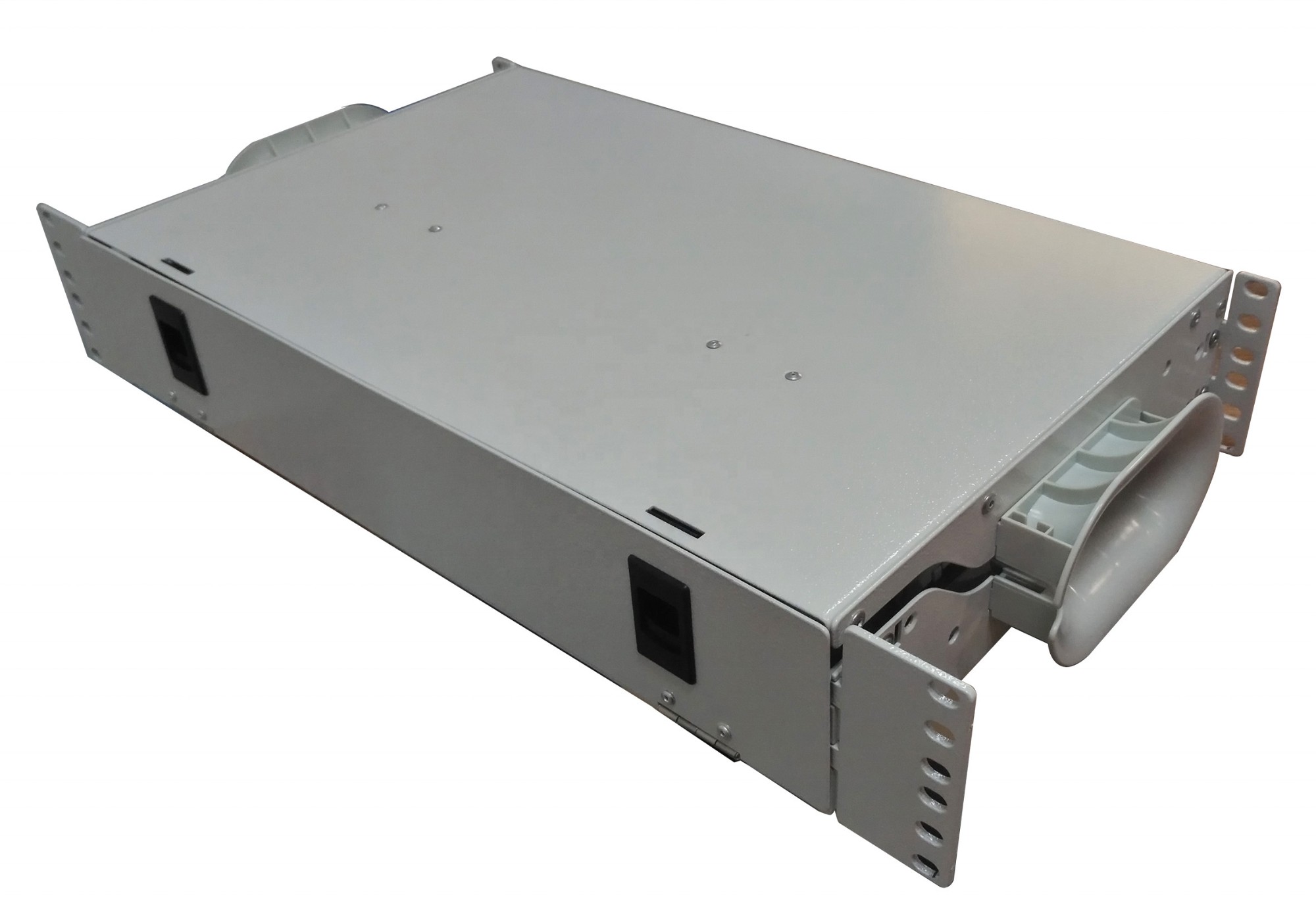

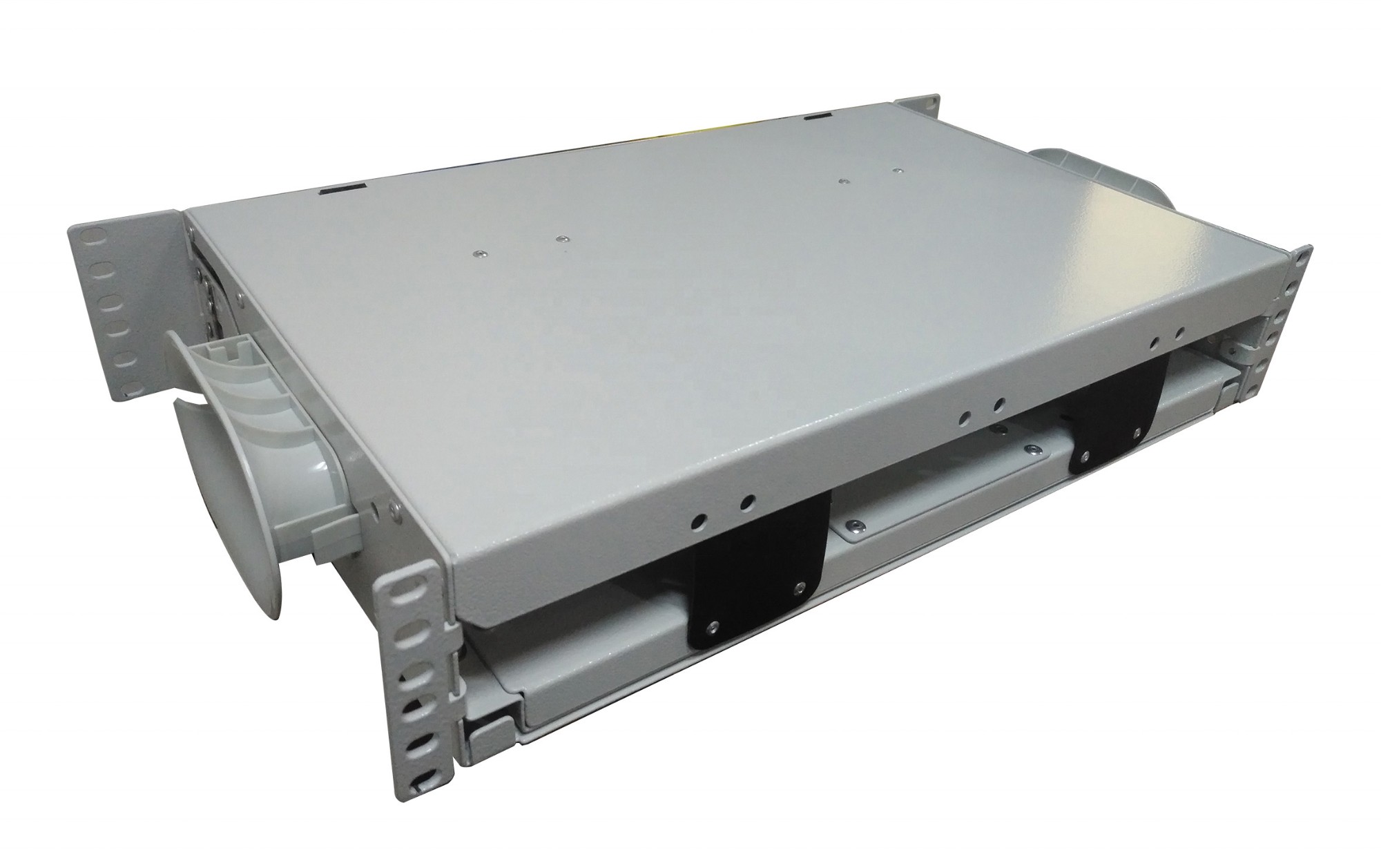

QYY- FTTH 24 48 72 96 144 Port Fiber Optic Rack Mount Patch Panel ODF
Features:
. It is made of high quality cold roll steel & the surface is sprayed with electrostatic powder
. The front door has a hinge, a flip-type structure with elastic door buckle locking method.

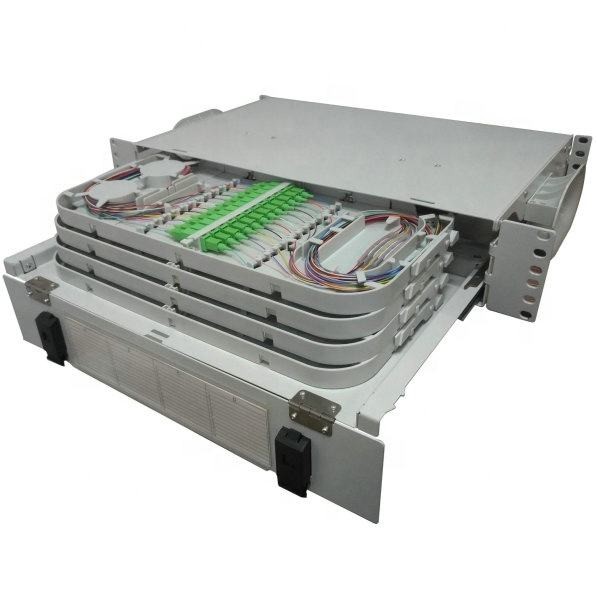

. Metal pull-out tray with slide rail, stainless steel limit buckle on the side and limit belt on the back to ensure high
reliability

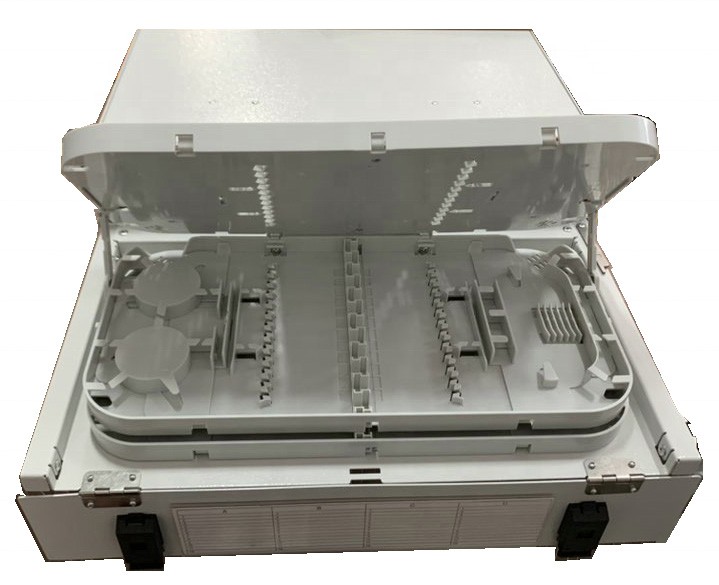

. The fiber splice stray is made of high quality plastic, including the fiber splicing module, fiber arrangement module and adapter panel,
which can be disassembled and interchanged.
. The splice tray is installed on a stepped bracket, which can be superimposed according to the number of U.
There are supporting members on the side of the tray, which can be flipped, and the splice is convenient
. There are horn-shaped fiber outlet ears on both sides of the box, which can well protect fiber cables and pigtails
. Pull-out chassis is suitable for standard 19 or 21 inch cabinet or rack installation
Specifications:
Material
high-quality cold roll steel
Color
RAL 7035 or optional
Adapter Port
96 Ports
Max. Capacity
192 FO
Dimension
440*277*4U MM
Adapter Type
SC Simplex or LC Duplex
Splice Tray
8 Tray With 24 FO
Installation Way
Rack Mounting Application
Applications:
. FTTH, Telecom, CATV, Data Communications & Local Area Networks
