Description

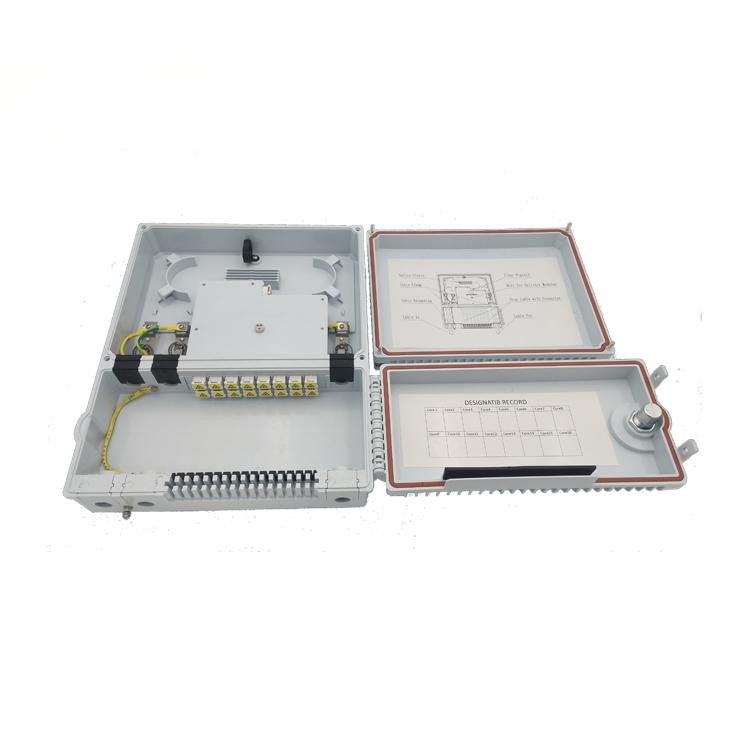

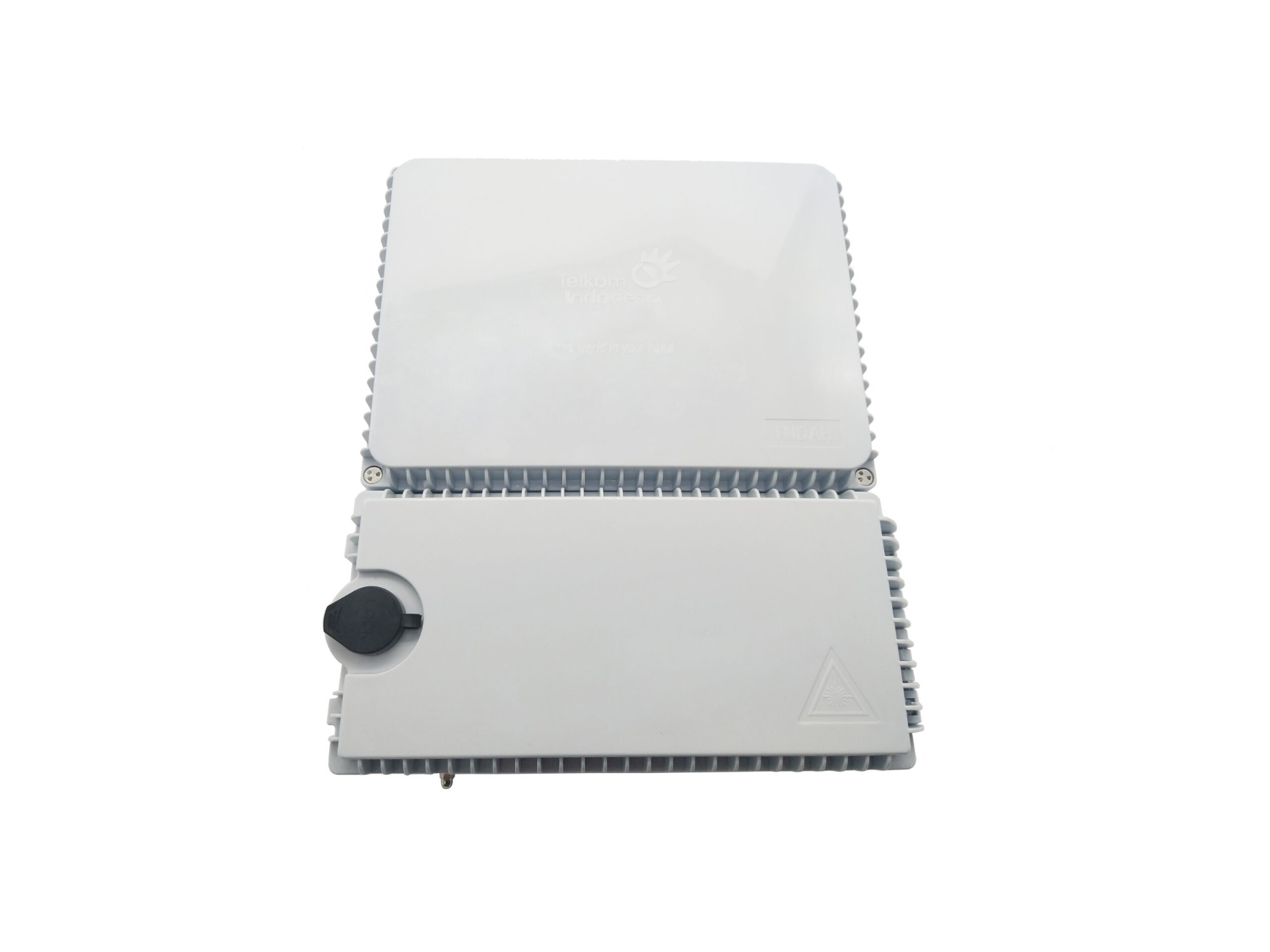

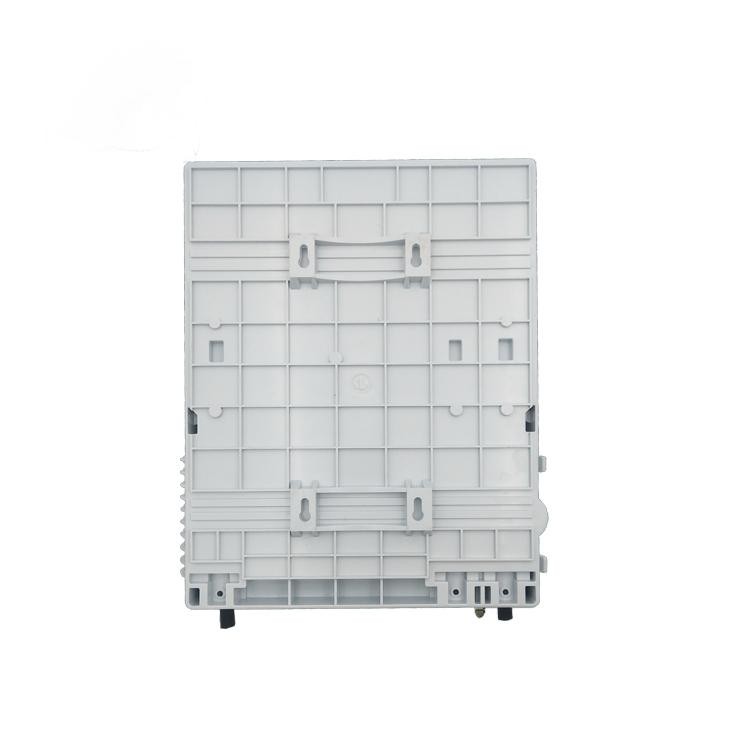

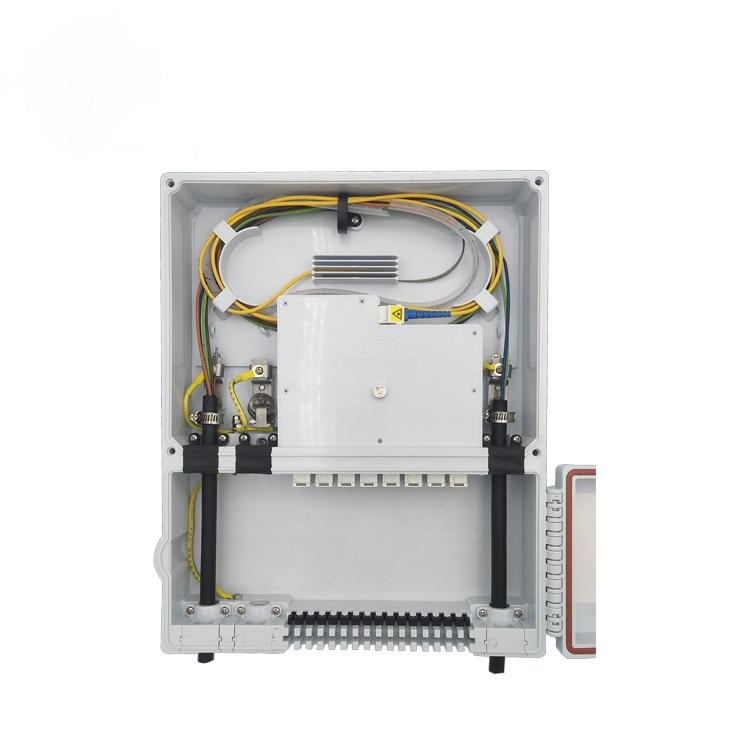

QYY- Indonesian 16 Cores Optic Fiber Distribution Box
Feature：
. Total enclosed structure with key lock, 2 separate covers
. High strength engineer plastic, wet-proof,water-proof, dust-proof, anti-aging, resistance to chemical and U.V attack.
. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution,etc all in one.
. Cable, pigtails, patch cords are running through own path withoutdisturbing each other
. Outdoor Wall mount, protection class IP54
Specifications：
| Model | FDB |
| Dimension (A*B*C) | 343*303*98mm |
| Max.Capacity | 16cores (single fiber) |
| Cable ports | 3in, 16out |
| Cable diameter(rr皿） | <12r |
| Splitter quantity | 2pcs 1×8 mini module |
| Color | Grey white |
