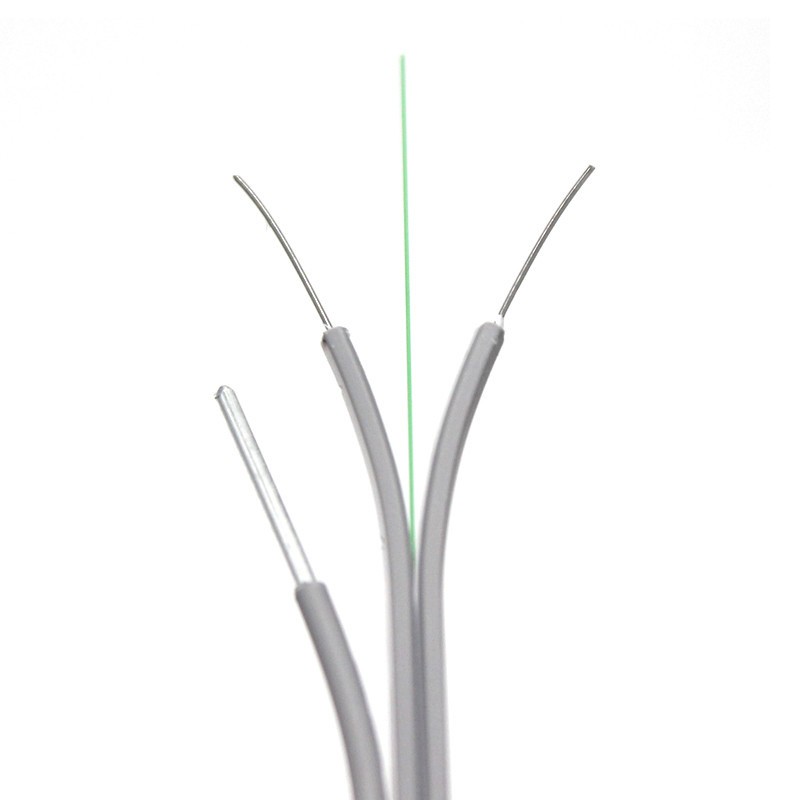

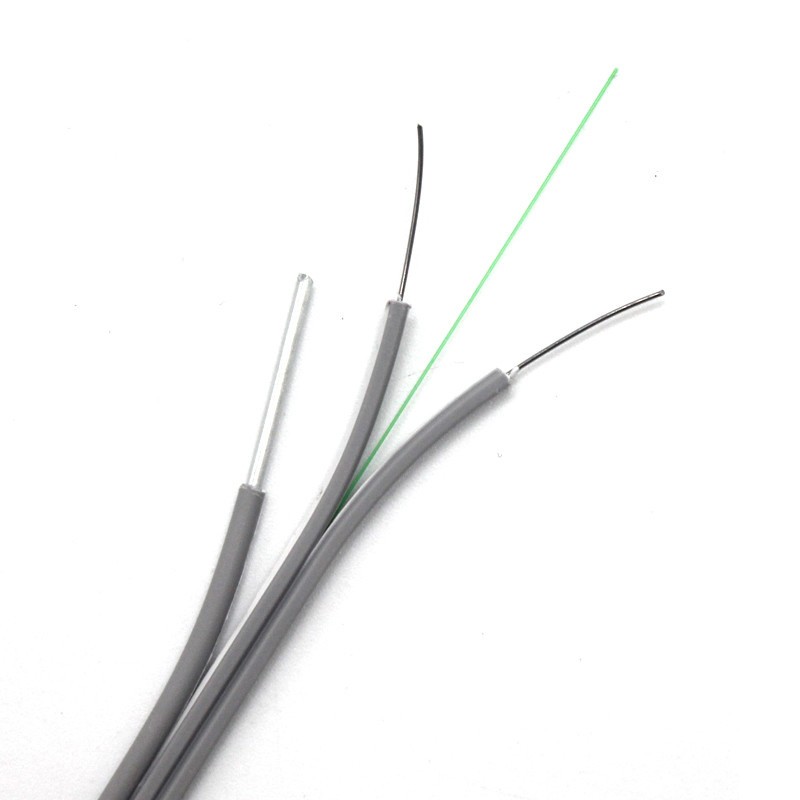

  • QYY- Plywood Drum Ftth Drop Cable 1 Core 1KM Single Mode Indoor Fiber Optic Cable
  • QYY- Plywood Drum Ftth Drop Cable 1 Core 1KM Single Mode Indoor Fiber Optic Cable
QYY- Plywood Drum Ftth Drop Cable 1 Core 1KM Single Mode Indoor Fiber Optic Cable QYY- Plywood Drum Ftth Drop Cable 1 Core 1KM Single Mode Indoor Fiber Optic Cable

QYY- Plywood Drum Ftth Drop Cable 1 Core 1KM Single Mode Indoor Fiber Optic Cable

  • Product Name:Outdoor FTTH Drop Cable
  • Fiber Type:Single-Mode G657A1/G652D
  • Number Of Fiber : 2
  • Cable Diameter :(2.0±0.2)X(5.0±0.2)mm
  • Outdoor optical cable,indoor cable , fiber optic cable
    Inquiry Send Email

    Description

    QYY- Plywood Drum Ftth Drop Cable 1 Core 1KM Single Mode Indoor Fiber Optic Cable



    Features:

    . Robust and lightweight
    . Colour coded fibers for easy identification
    . LSZH jacket for internal use
    . Steel wire support

    Applications:

    . Outdoor aerial application
    . Used in the FTTH projects
    . High performance optical network operation
    . High speed optical routes in building


    Parameters:

    Structure

    Unit

    Parameter

    Fiber count

    Fibers

    2

    Diameter

    mm

    5.0*2.0

    Weight

    Kg/km

    Approx.21

    Sheath color

    Black

    Sheath material

    LSZH

    O.D of steel wire

    mm

    1.0±0.05mm

    Strength member

    mm

    0.5mm FRP

    Tensile strength

    N

    1500

    Crush Resistance

    N

    2200

    Bending Radius

    Dynamic

    30×Cable Diameter

    Static

    15×Cable Diameter

    Operating Temperature

    ℃

    -40 --- +70

    Test Datasheet :

    Category

    Description

    Specifications

    G.657A1

    Optical Specifications

    Attenuation

    @1310-1625nm

    ≤0.36dB/km

    @1383±3nm

    ≤0.36dB/km

    @1550nm

    ≤0.22dB/km

    Attenuation discontinuity

    ≤0.05 dB

    Attenuation vs. Wavelength

    @1285~1330nm

    ≤0.05 dB/km

    @1525~1575nm

    ≤0.05 dB/km

    Zero Dispersion Wavelength

    1300~1324nm

    Zero Dispersion Slope

    ≤0.092ps/(nm2.km)

    Dispersion

    @1310nm

    ≤3.5 ps/nm.km

    @1550nm

    ≤18 ps/nm.km

    Polarization Mode Dispersion(PMD)

    ≤0.2ps/km1/2

    Cable Cutoff Wavelength(λcc)

    ≤1260nm

    Effective Group Index of Refraction

    @1310nm
