Description

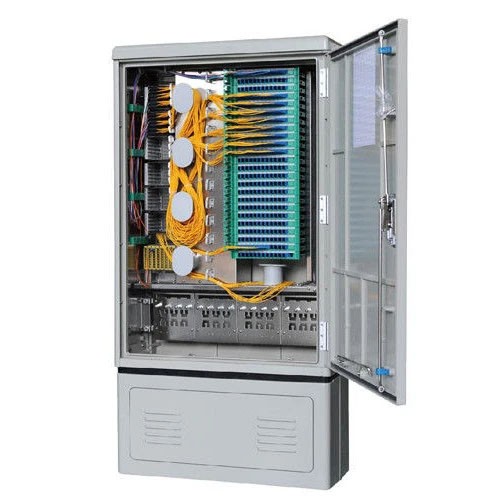

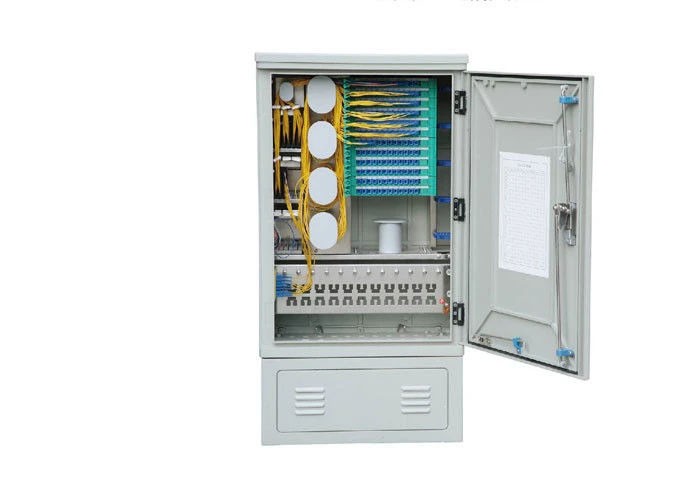

QYY- FiberOpticx Outside Wall Mount Cabinet - 288 Port Capacity Fiber Optical cabinet
Features:
. Excellent performance such as:water-proof,damp-proof,anti-erosion,anti-strike.
. Able to withstand abrupt climate change and extreme environment.
. Capacity can be flexibly customized as required.
. Installation is quick and convenient .
. Built-in direct splice unit is capable for providing direct connection function.
. Perfect design of fiber wiring routing could facilitate management and maintenance of fibers
. With secure and reliable fastening and grounding protection devices for the optic fiber
. Applicable to strap-shaped and non-strap shaped fibers
. Unique patent for the design of the door key,can never be easily broken.
. With unique design of the adjust structure of temperature.
Specifications:
| Type | Fiber Optical cabinet | Model Number | QYY-B 288 cores |
| Place of Origin | Shanghai, China | Brand Name | QYY |
| CONNECTOR CAPACITY | 288 SC | DIMENSIONS | 1450mmx760mmx340mm |
| Type of Fiber | Gray | COLOR | -40~85 |
| Applicable fibers | SM MM G655 | Application | -40~85 |
Applications:
. The cabinet is used for connecting trunk and distribution optical fiber cable. It carries out the function of splicing, storage
and distribution. It is mainly used in the CATV, telecommunication equipment room and network equipment room.
