Description

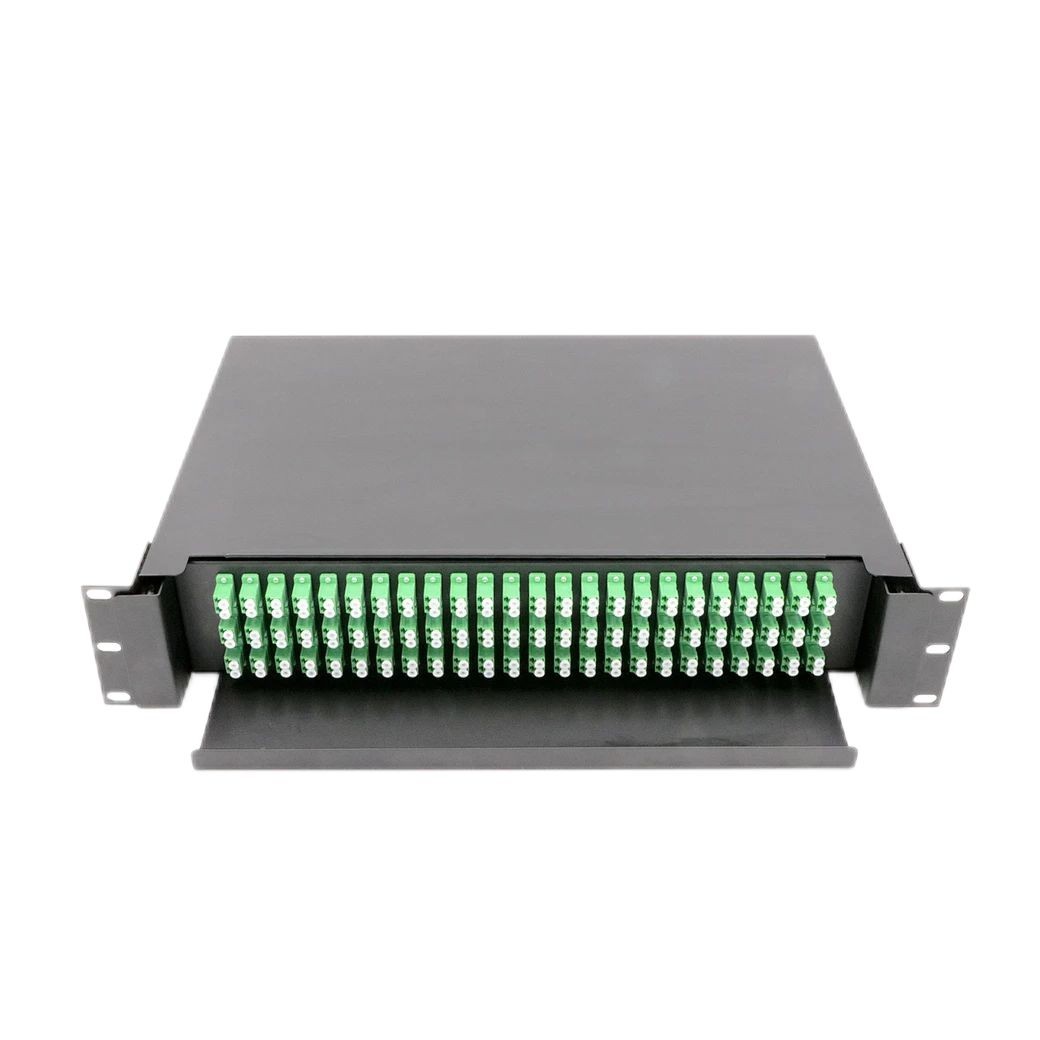

QYY- LC 2U Fiber Optical Patch Panel With Cold Rolled Steel Box
Features:

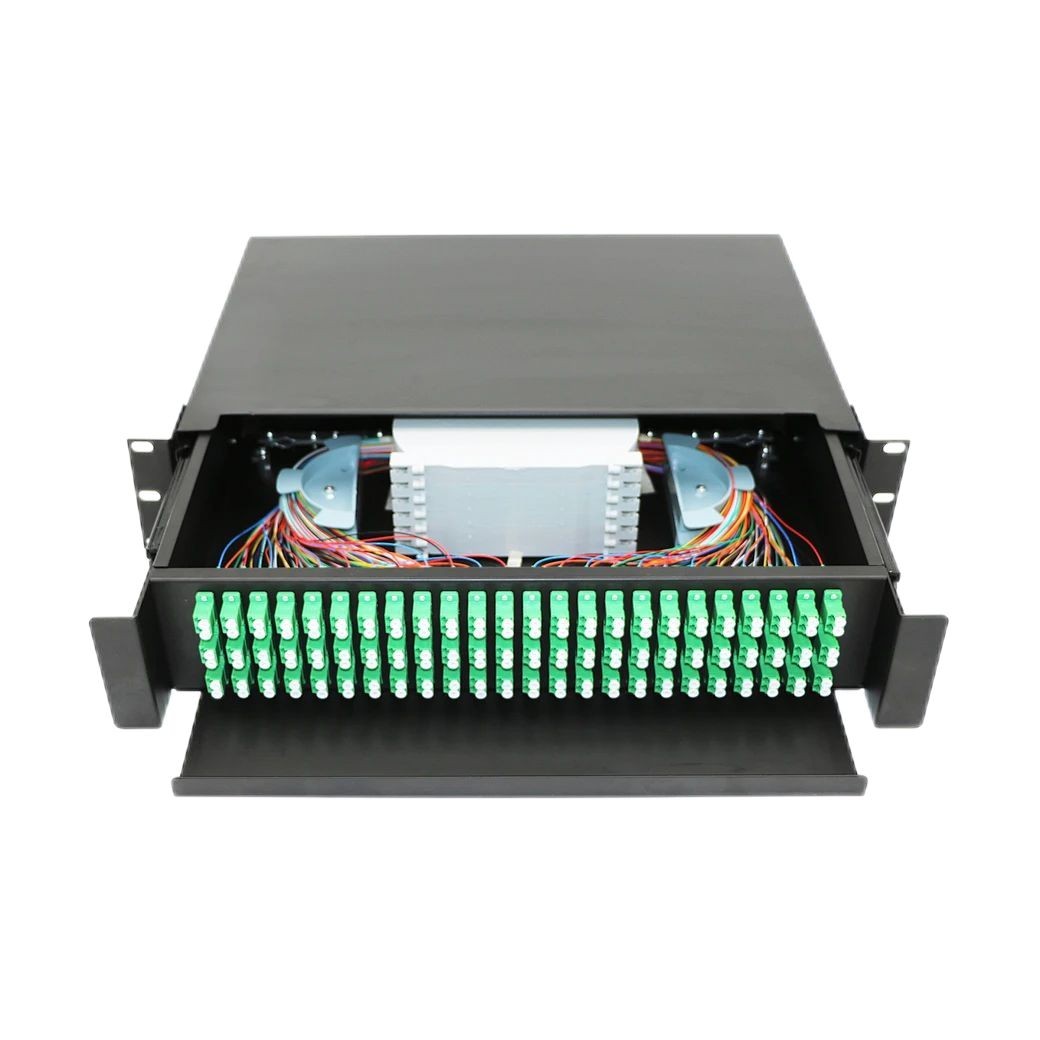

. Cold-roll steel, electrostatic painting ABS plastic tray inside
. 12~24cores per trayDifferent adapter plate available: FC, SC, LC, ST
. Suitable for 19’’ standard optic distribution cabinets

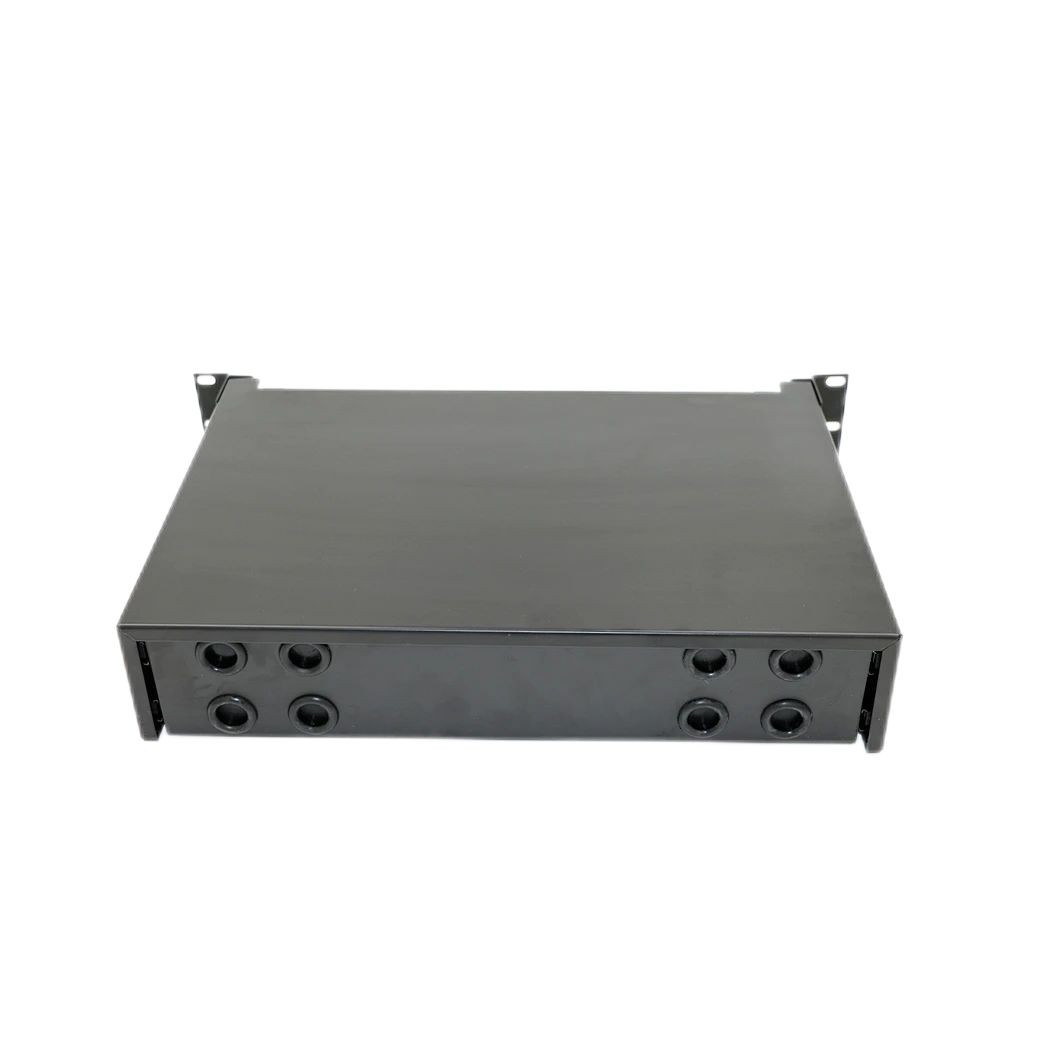

. Cable entry ports suitable for single fiber, bundle and ribbon fiber cables
. Reasonable design ensures the cables are in good order

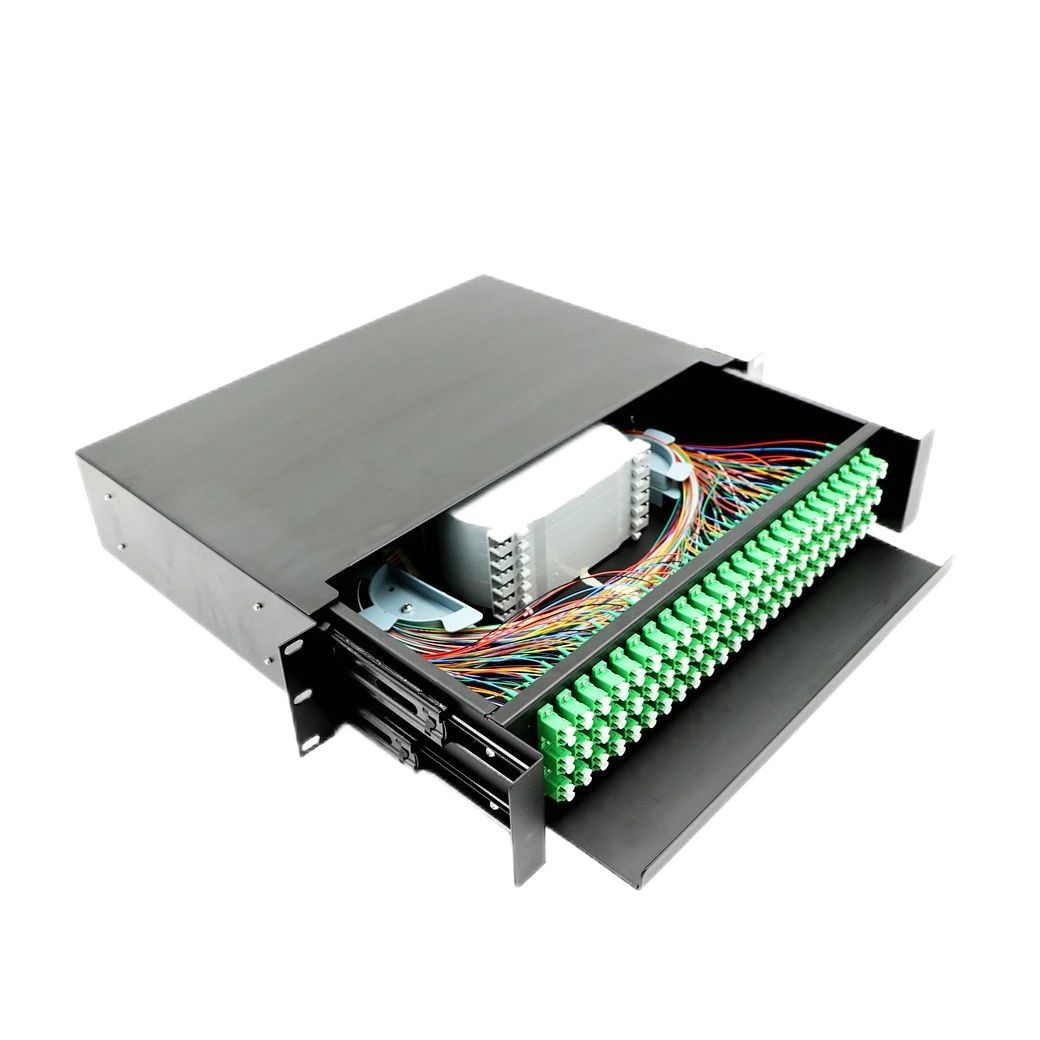

. Rack mounted type, can be slide out, but no sliding rails
. Colors: white, black, grey, color painting optional
. Capacity: 12, 24, 48, 72, 96, 144cores or customized.
Application：
. Telecommunications subscriber loop
. Fiber to the home (FTTH)
. LAN/ WAN Network
. CATV Network
Specification:
| Type | OTB-RF-1UA | OTB-RF-2UA | OTB-RF-1UB | OTB-RF-1UB | OTB-RF-1UC | OTB-RF-2UC |
| Size(mm) | 430*250*1U | 430*250*1U | 482*295*1U | 320*240*100 | 350*340*120 | 350*340*120 |
| Max capacity(core) | 24 | 48 | 24 | 48 | 24 | 48 |
| Weight(kg) | 2.6 | 3.8 | 3 | 4 | 3 | 5 |
Lc Fiber Patch Panel Slidable Type:
| Type | OTB-RS-1UA | OTB-RS-2UA | OTB-RS-1UB | OTB-RS-2UB | OTB-RS-1U-3MPO | OTB-RW-1U |
| Size(mm) | 430*300*1U | 430*250*2U | 482*217*1U | 482*217*2U | 482*296*1U | 430*300*1U |
| Max capacity(core) | 24 | 48 | 24 | 48 | 36 | 24 |
| Weight(kg) | 3.5 | 4.0 | 3.5 | 4.0 | 3.0 | 4.7 |
