Description

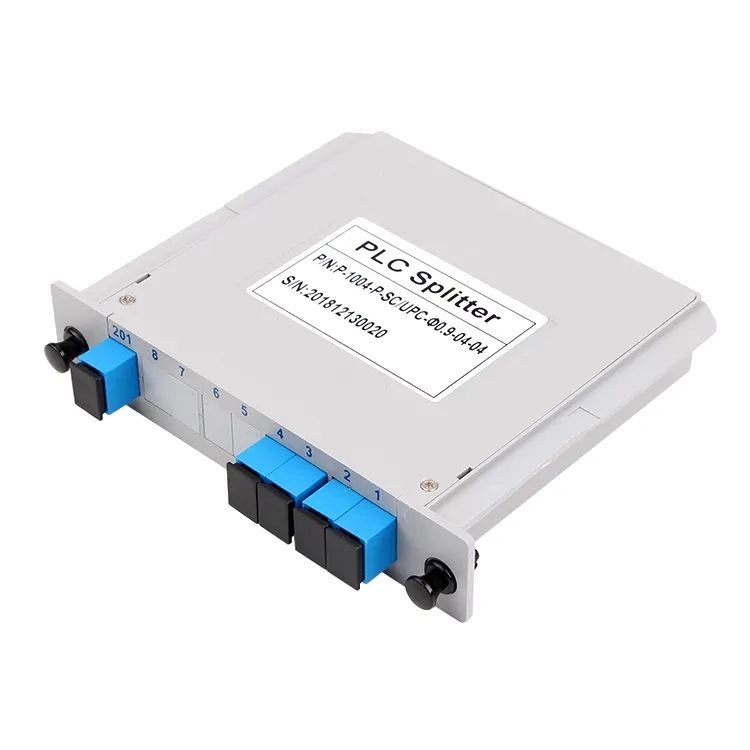

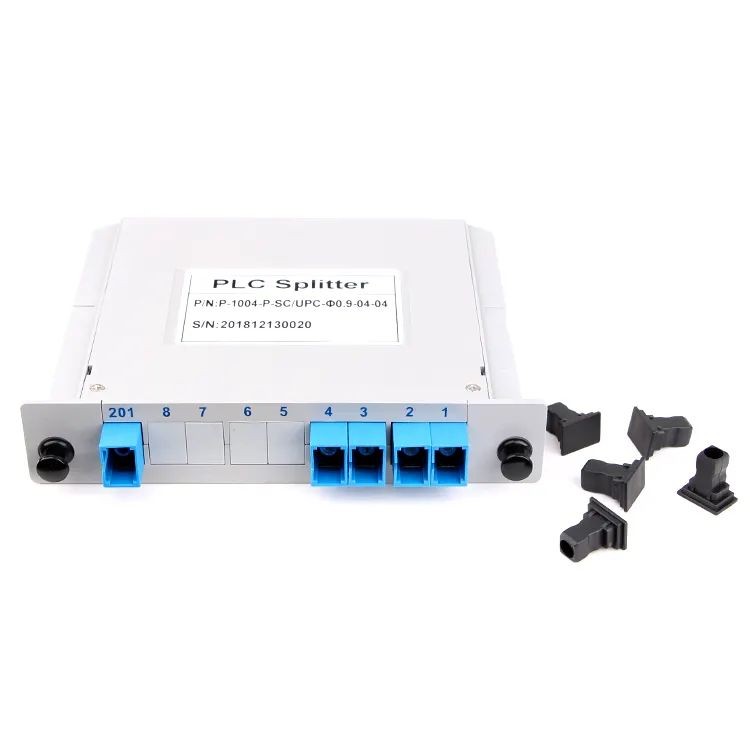

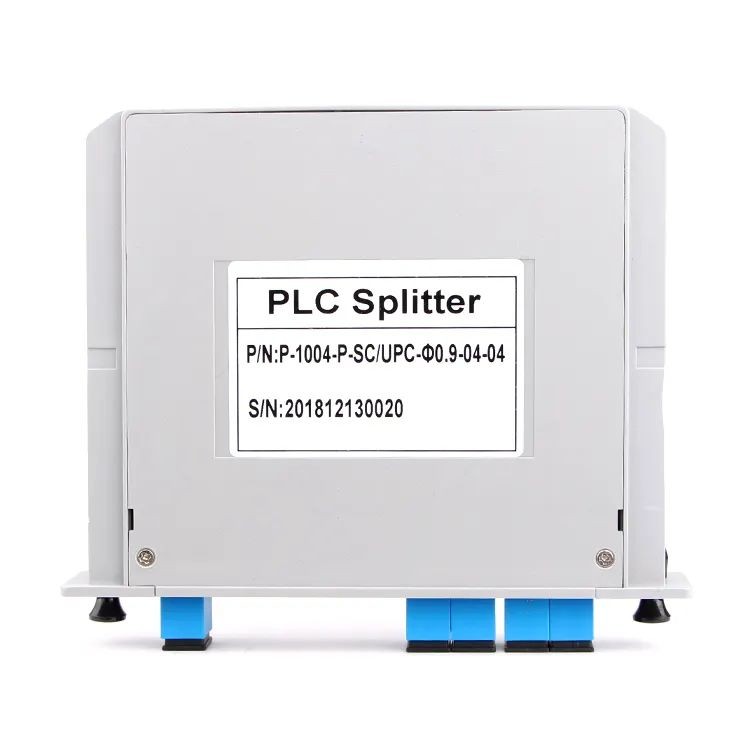

QYY- 1x8 SC/UPC Insertion Card Type LGX Box
Features:
1. Good channel-to-channel uniformity
2. High reliability and small size
3. Low Insertion loss and Low PDL
4. Compact Design
5. 1. Good channel-to-channel uniformity
6. Wide Operating Wavelength: from 1260nm to 1650nm
7. High Reliability and Stability
8. Standard LGX Metal/Plastic Box

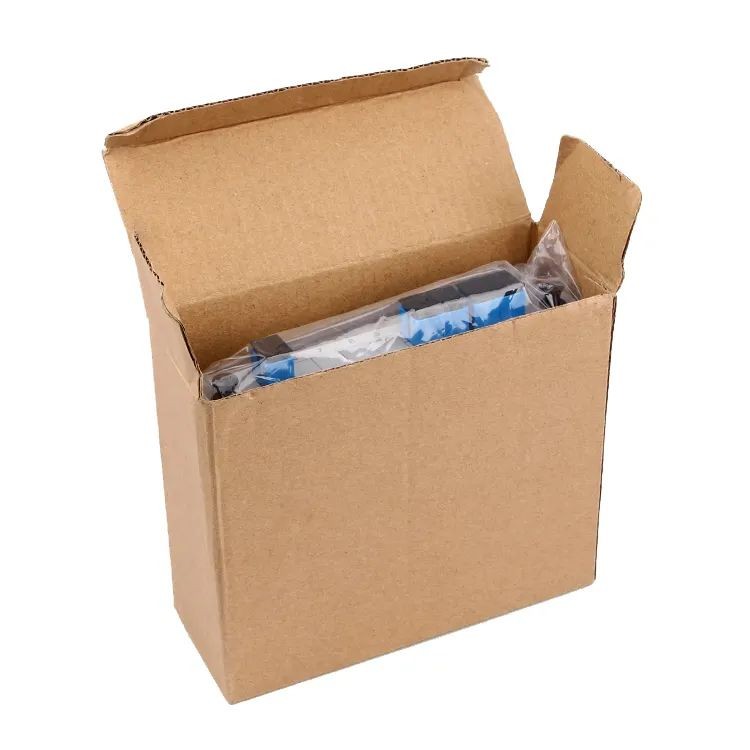

9. Protective Package
10. Suitable for Outdoor Use
Specifications:
Product Name
FTTH SC UPC 1*8 LGX Box PLC Optical Splitter
Parameters
1x2 1x4 1x8 1x16 1x32 1x64
Operating Wavelength (nm)
1260~1650
Fiber Type
G657A
Insertion Loss (dB)(P/S Grade)
3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21.0
Loss Uniformity (dB)
0.4 0.6 0.8 1.2 1.5 2.0
Return Loss
55/50 55/50 55/50 55/50 55/50 55/50
Directivity
55 55 55 55 55 55
Wavelength Dependent Loss(dB)
0.3 0.3 0.3 0.5 0.5 0.5
Temperature Stability(dB)
0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃)
-40~85℃
Application:
. Fiber to the point (FTTX)
. Local area networks (LAN)
. Cable television (CATV)
. Test equipment
. Fiber to the home (FTTH)
. Passive optical networks(PON, GEPON)
