  • QYY- 40G QSFP+ Direct Attach Cable
  • QYY- 40G QSFP+ Direct Attach Cable
  • QYY- 40G QSFP+ Direct Attach Cable
QYY- 40G QSFP+ Direct Attach Cable QYY- 40G QSFP+ Direct Attach Cable QYY- 40G QSFP+ Direct Attach Cable

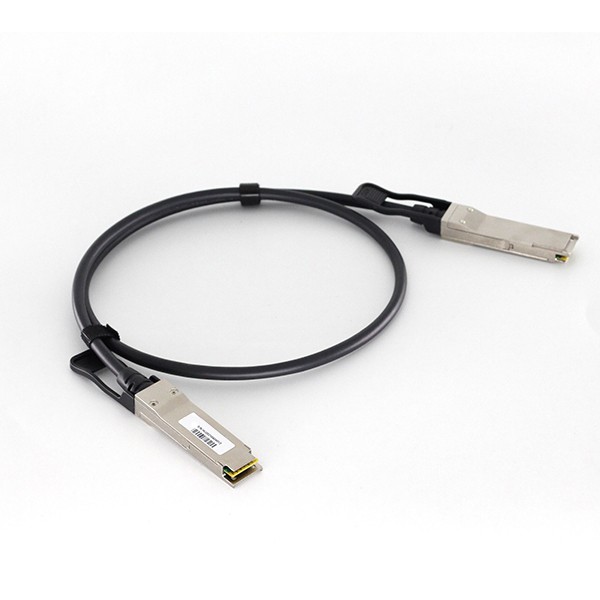

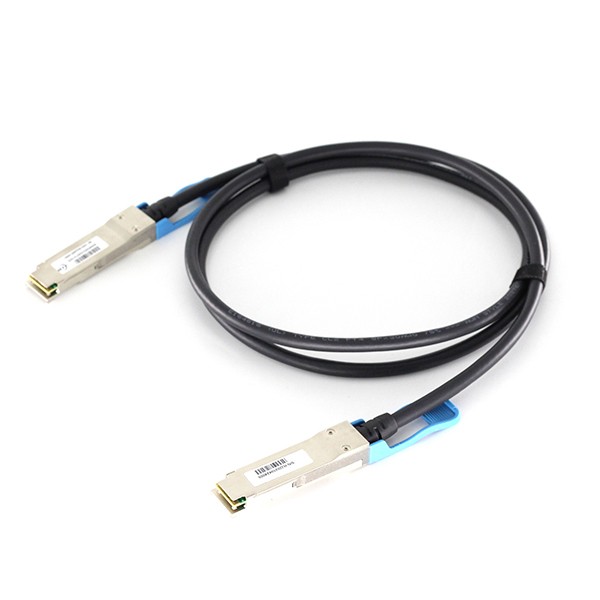

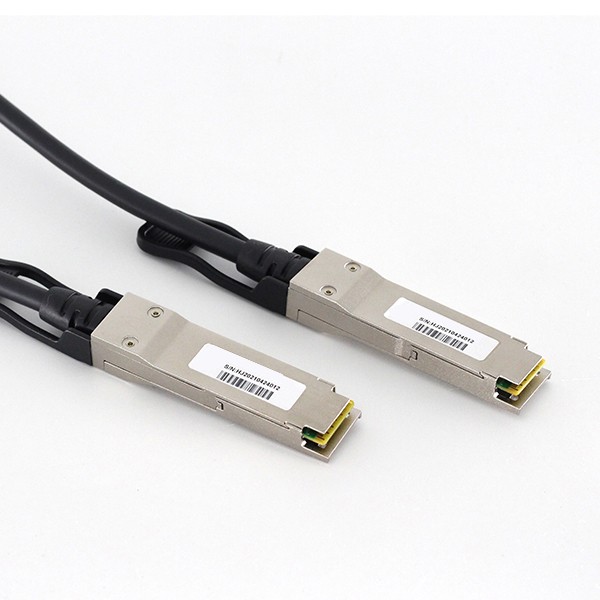

QYY- 40G QSFP+ Direct Attach Cable

optical Transceiver module  , SFP  , 40G QSFP+ Direct Attach Cable
Inquiry Send Email

Description

QYY- 40G QSFP+ Direct Attach Cable


Features:

. Compliant with SFF- 8436.

. Up to 10.3125Gbps data rate per channel
. Up to 7m transmission
. Operating temperature: -40℃ to +80℃
. Single 3.3V power supply
. RoHS compliant




High Speed Characteristics :

Parameter Symbol Min. Typ Max. Unit Notes
Differential Impedance Zd 90 100 110 Ω
Differential Input Return Loss SDDXX <-12+2* SQRT (f) with f in GHz dB 0.01~4.1GHz
<-6.3+13*Log10/(f/5.5) with f in GHz dB 4.1~11.1GHz
Common Mode Output Return Loss SCCXX < -7+1.6*f with f in GHz dB 0.01~2.5GHz
-3 dB 2.5~11.1GHz
Difference Waveform Distortion Penalty dWDPc 6.75 dB
VMA Loss L 4.4 dB
VMA Loss to Crosstalk Ratio VCR 32.5 dB



Applications:

. 40G Ethernet

. Data Center
