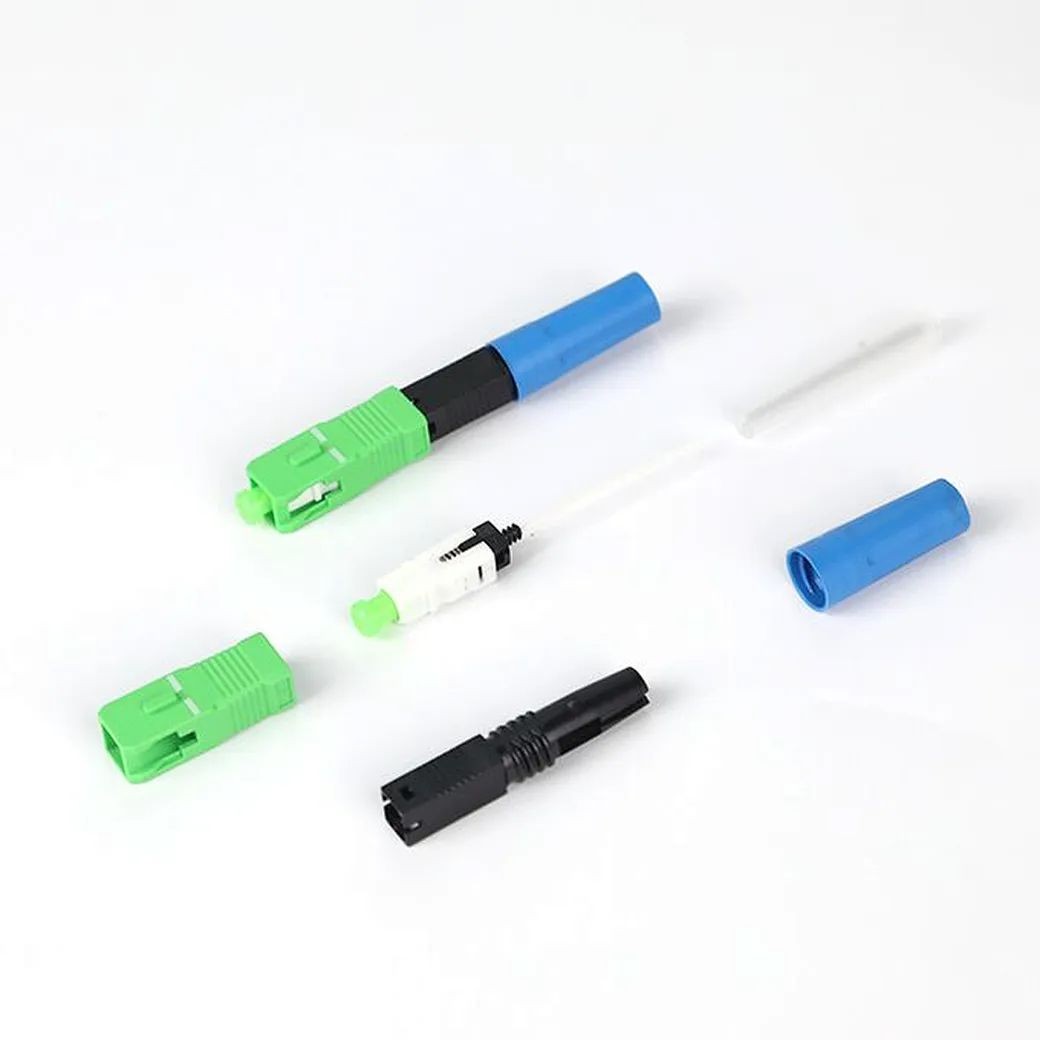

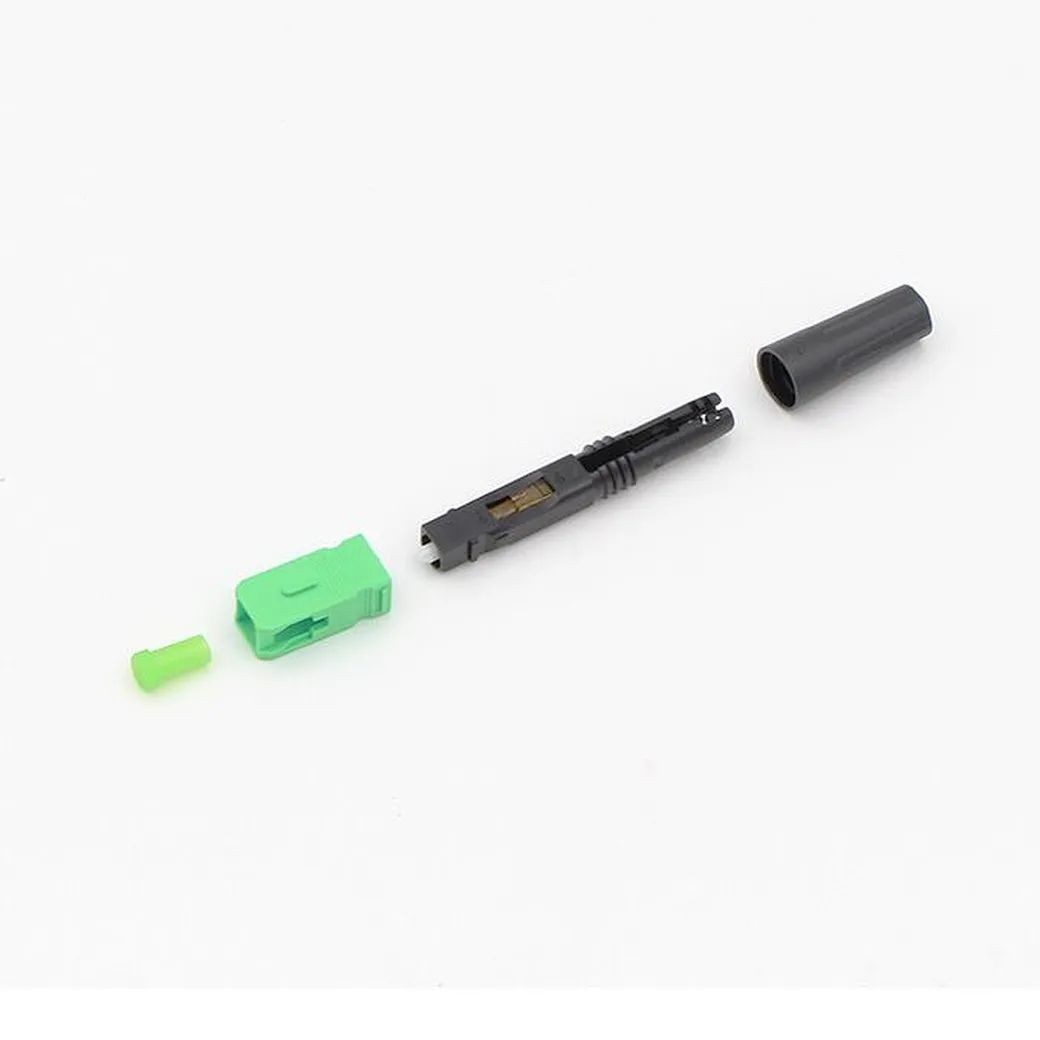

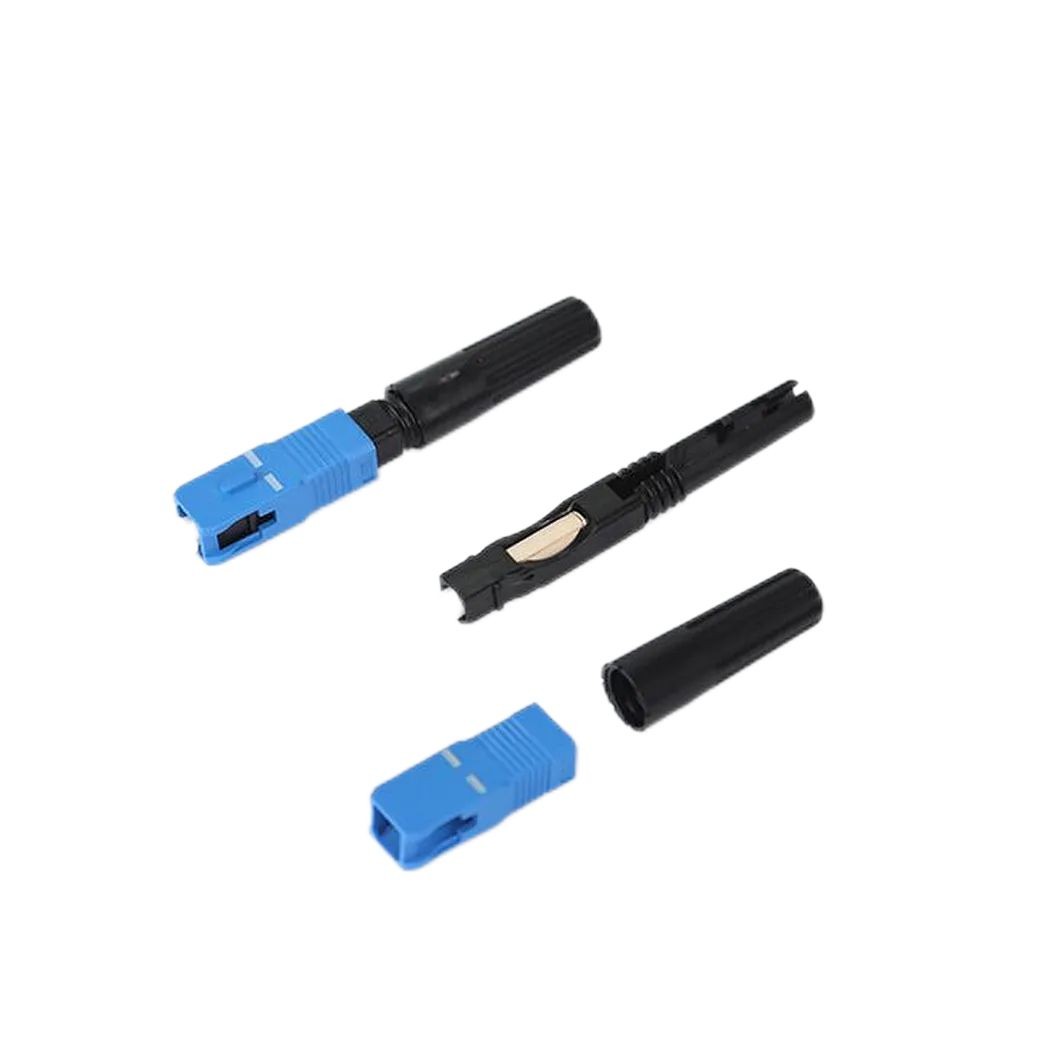

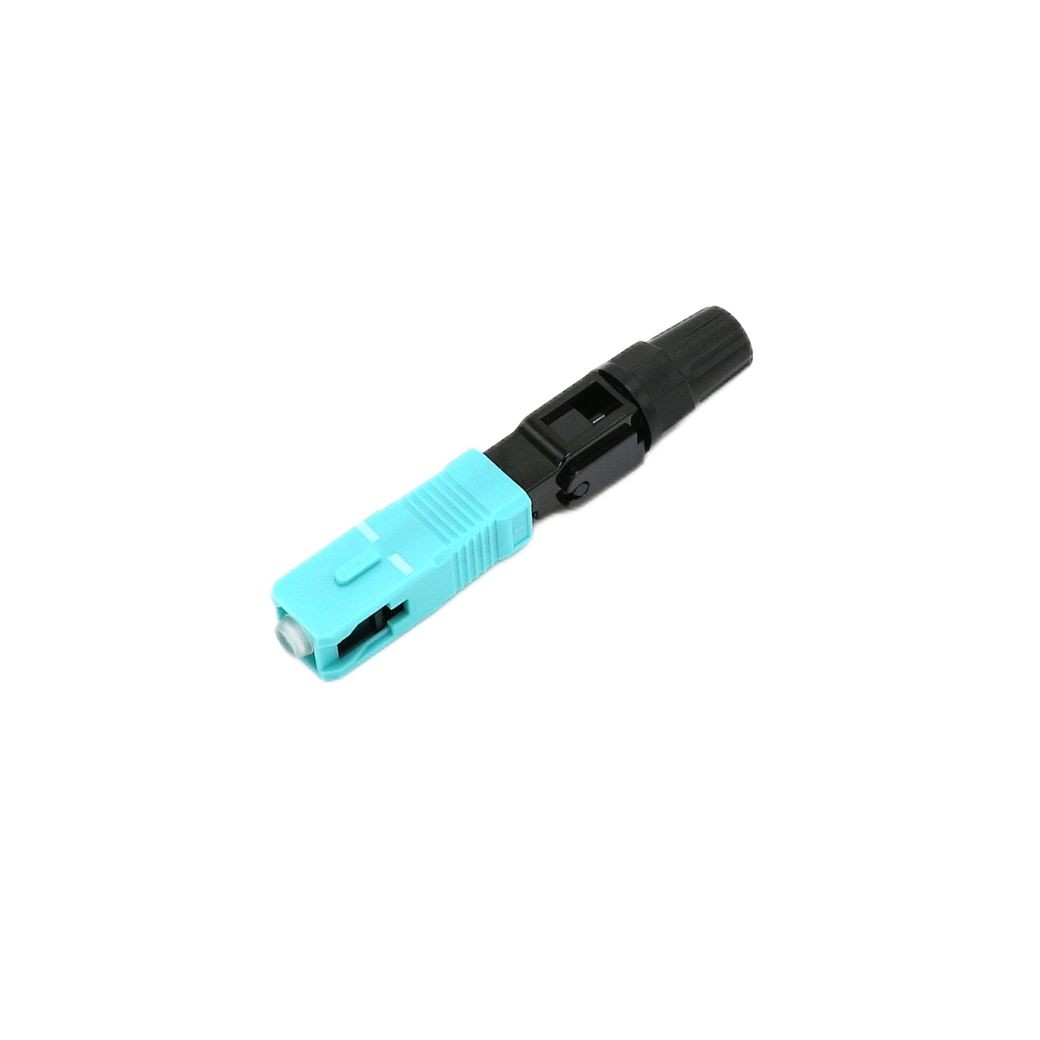

QYY- SC 50um / 62.5um Fiber Fast Connector High Return Loss

QYY- SC 50um / 62.5um Fiber Fast Connector High Return Loss

Connector Type：SC

Ferrule End-face：UPC,APC

Fiber Type：Multimode

Cable Type ：Simplex

Description

QYY- SC-50um-62.5um-Fiber-Fast-Connector-High-Return-Loss

Features:

. Accurate mechanical dimension
. Low insertion loss
. High return loss
. Match to IEC61754-4
. All material match to ROHS

Application：

. Use for open FTTH Optical terminal to end.
. Connection in closure, cabinet, terminal box etc.
. Recovery and maintenance in the accident like fiber cut situation.
. LAN, WAN, data and video transmission.
. Construction and maintenance in the FTTX of terminal user
. Fiber to mobile base station

Specification:

Item	Parameter
Cable	3.1x2.0mm drop cable or 3.0/2.0/0.9mm cable
Coating Diameter	250μm
Mode	SM, MM
Insertion Loss	≤ 0.3dB
Return Loss	SM: ≥45dB; MM: ≥35dB
Reusable Times	>10 times
Tensile Strength	>50 N
Temperature	-40~+85°C
