Description

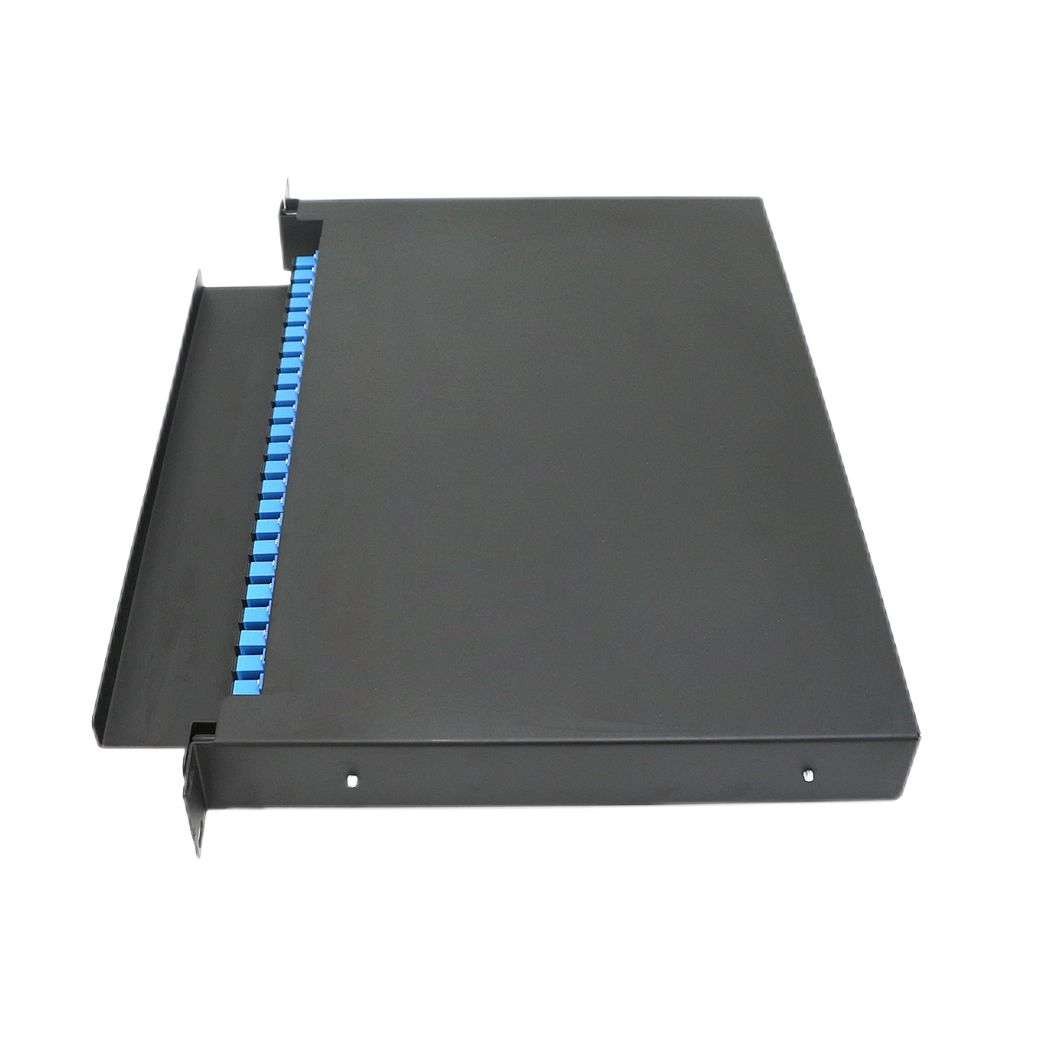

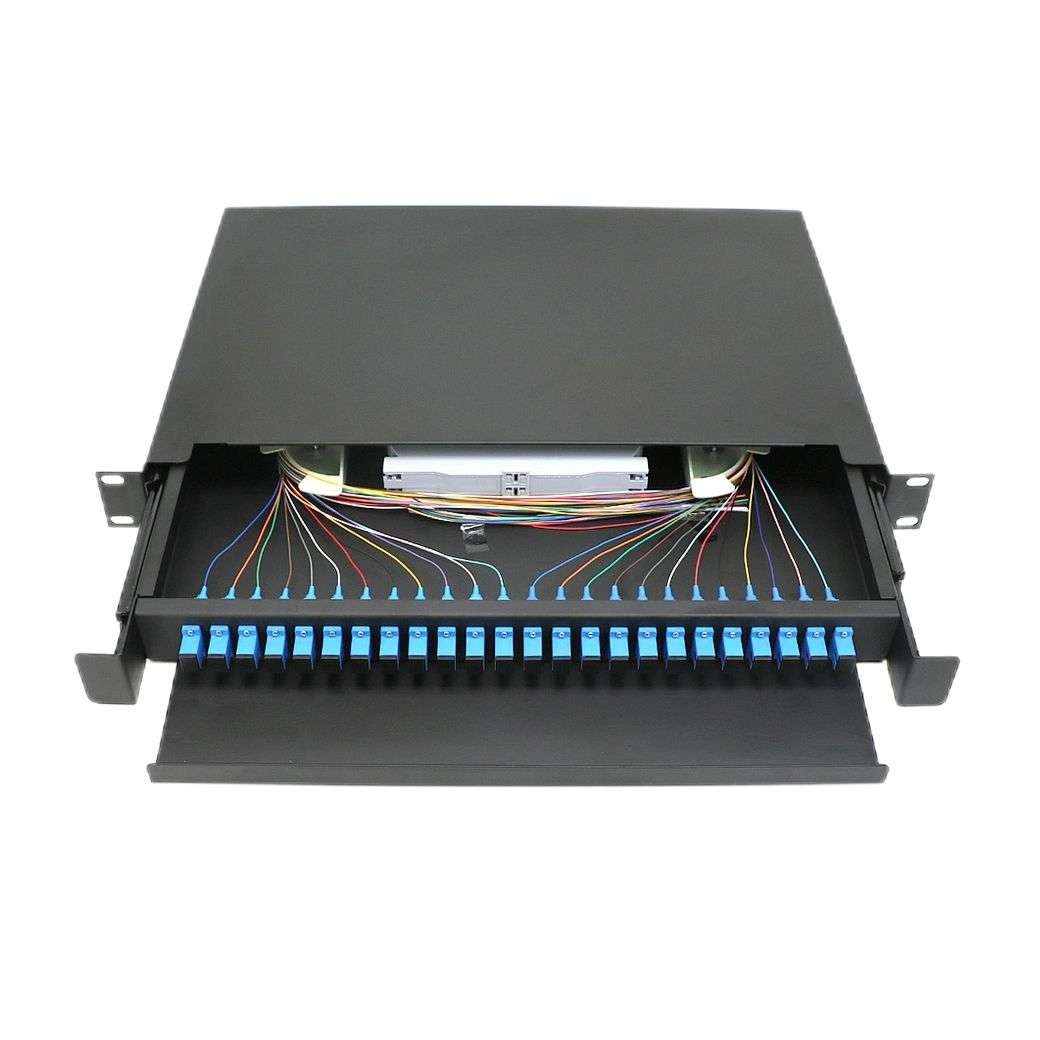

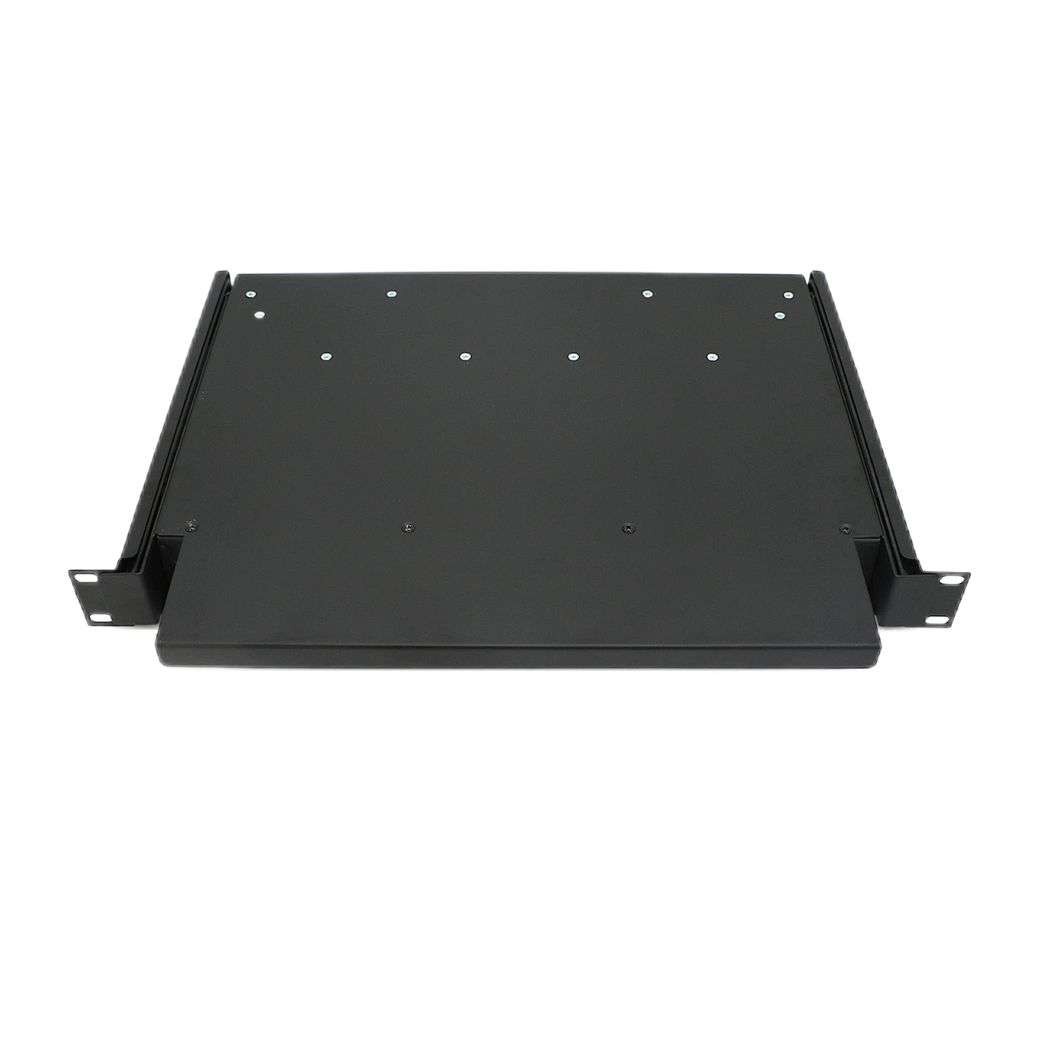

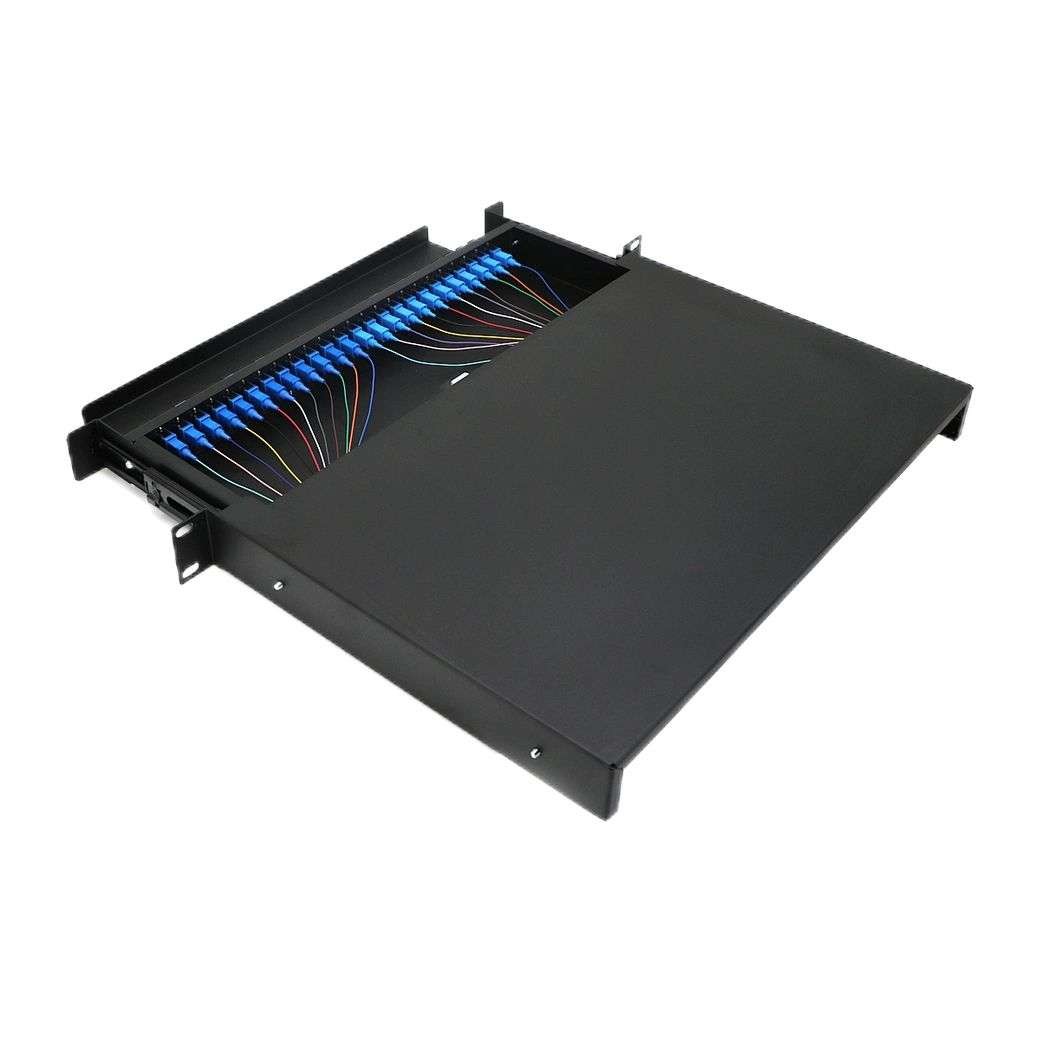

QYY- Wall mounted LC Duplex Fiber Adapters 24 Port Fiber Optic Terminal Box
Features:
. 19"Rack, cabinet mountable
. Excellent design
. Tightness and durable
. Optical fiber input: 4 ports
. The core and casing is insulation
. Operate and install easily
. FC/SC/ST/Others Adapters for Option, available.
. Adapter output: up to 48 ports
. Fiber pigtail can provide reliable, perfect protection
Application：
. Local Area Network
. CATV Network
. FTTx System
. Telecommunication
. Wide Area Network
. Test Instruments
24 Port Fiber Termination Box Specification:
Slidable Type:
Type
OTB-RS-1UA
OTB-RS-2UA
OTB-RS-1UB
OTB-RS-2UB
OTB-RS-1U-3MPO
OTB-RW-1U
Size(mm)
430*300*1U
430*250*2U
482*217*1U
482*217*2U
482*296*1U
430*300*1U
Max capacity(core)
24
48
24
48
36
24
Weight(kg)
3.5
4.0
3.5
4.0
3.0
4.7
Fixed Type:
Type
OTB-RF-1UA
OTB-RF-2UA
OTB-RF-1UB
OTB-RF-1UB
OTB-RF-1UC
OTB-RF-2UC
Size(mm)
430*250*1U
430*250*1U
482*295*1U
320*240*100
350*340*120
350*340*120
Max capacity(core)
24
48
24
48
24
48
Weight(kg)
2.6
3.8
3
4
3
5
