Description

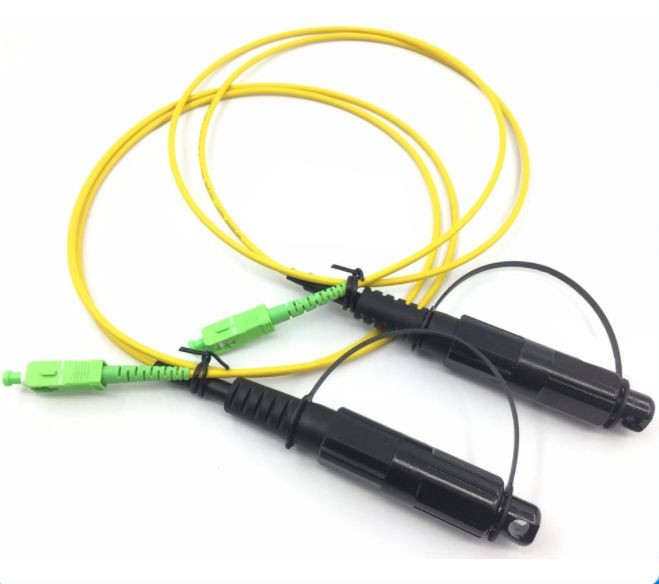

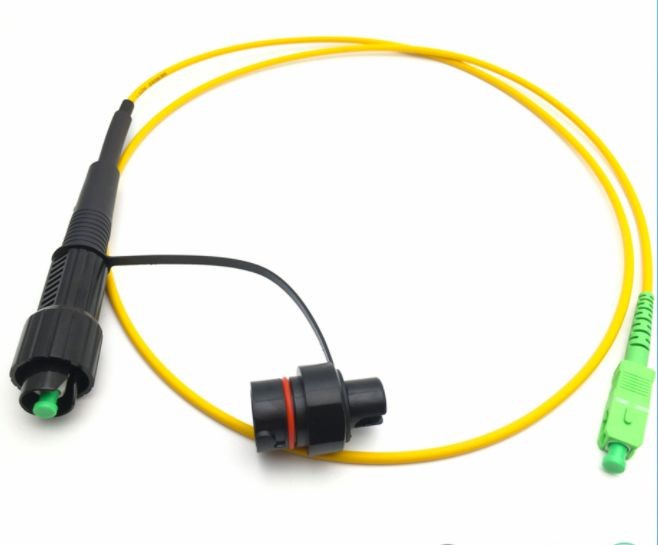

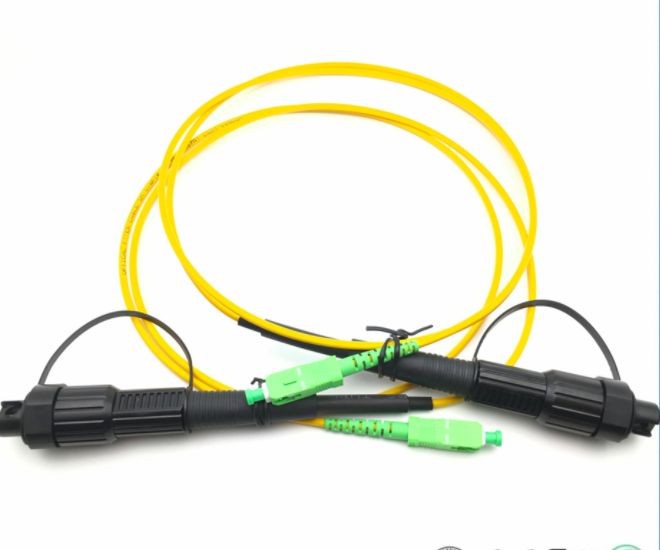

QYY- SM Simplex G657A1 Fiber Jumper Patch Cord for huawei
Features:
1. Cost effective solution for in house termination
2. Low insertion loss and added loss
3. IP67 water, dust proof and corrosion resistant
4. The material in the jumper cable are all-weather and UV-resistant
Item
Data
Insertion Loss
≤0.3dB
Return Loss
SM/UPC≥55dB, SM/APC≥60dB, MM≥35dB
Mechanical life
500cycles
Working temperature
-20°C~+70°C
Storage temperature
-20°C~+70°C
Protection Level
IP67
Tensile Data
Tensile between junction and fiber cable≥100N
