Description

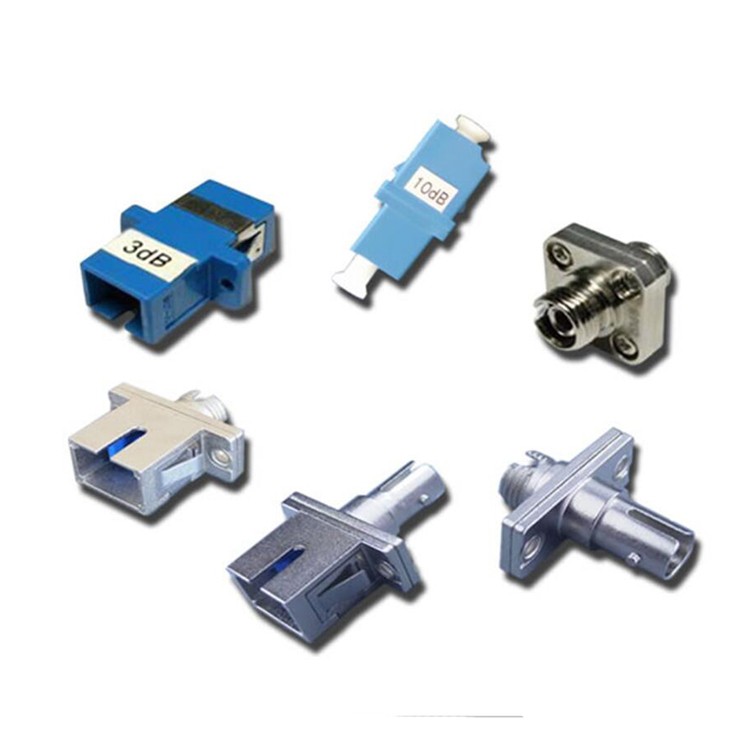

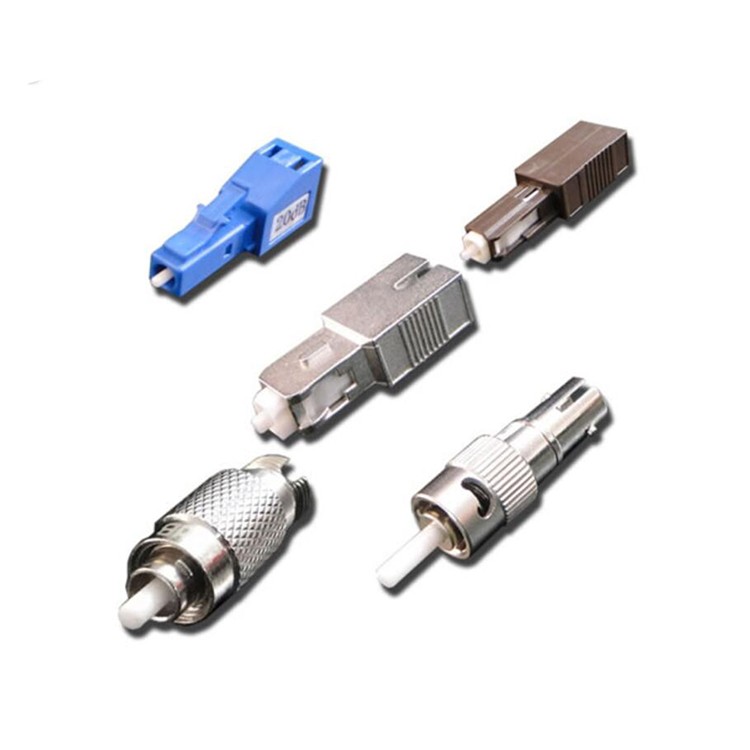

QYY- Fiber attenuator
Features:
. Bellcore Compliant
. Wavelength Independent (DWDM)
. Durability (well over 100mw)
. Simple and Reliable structure
Specifications:
| Optical Performance | F-F /F-M Type |
| Testing Wavelength(nm) | SM: 1200-1600nm or 1310nm/1550nm |
| MM: 850nm/1300nm | |
| Attenuation Dependent Loss | +/-0.5(1-10) dB |
| +/-1.0(11-30) dB | |
| Return Loss | ≥50dB(PC) |
| ≥55dB(UPC) | |
| ≥60dB(APC) | |
| Maximum Optical Input power | 200mW |
| Polarization Dependent Loss | Less than 0.2dB |
| Operating Temperature | -40ºC~+80ºC |
| Connector Type | FC SC LC ST MU |
