Description

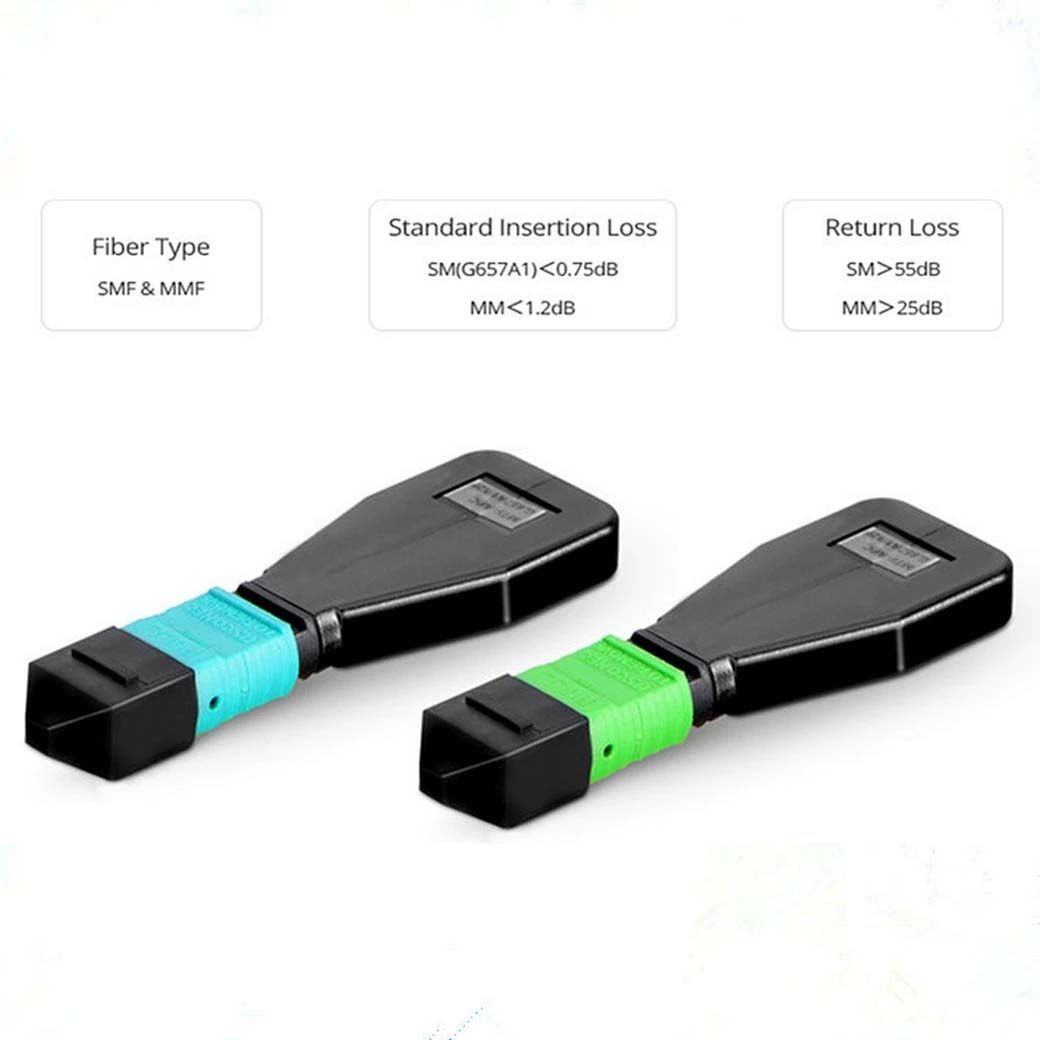

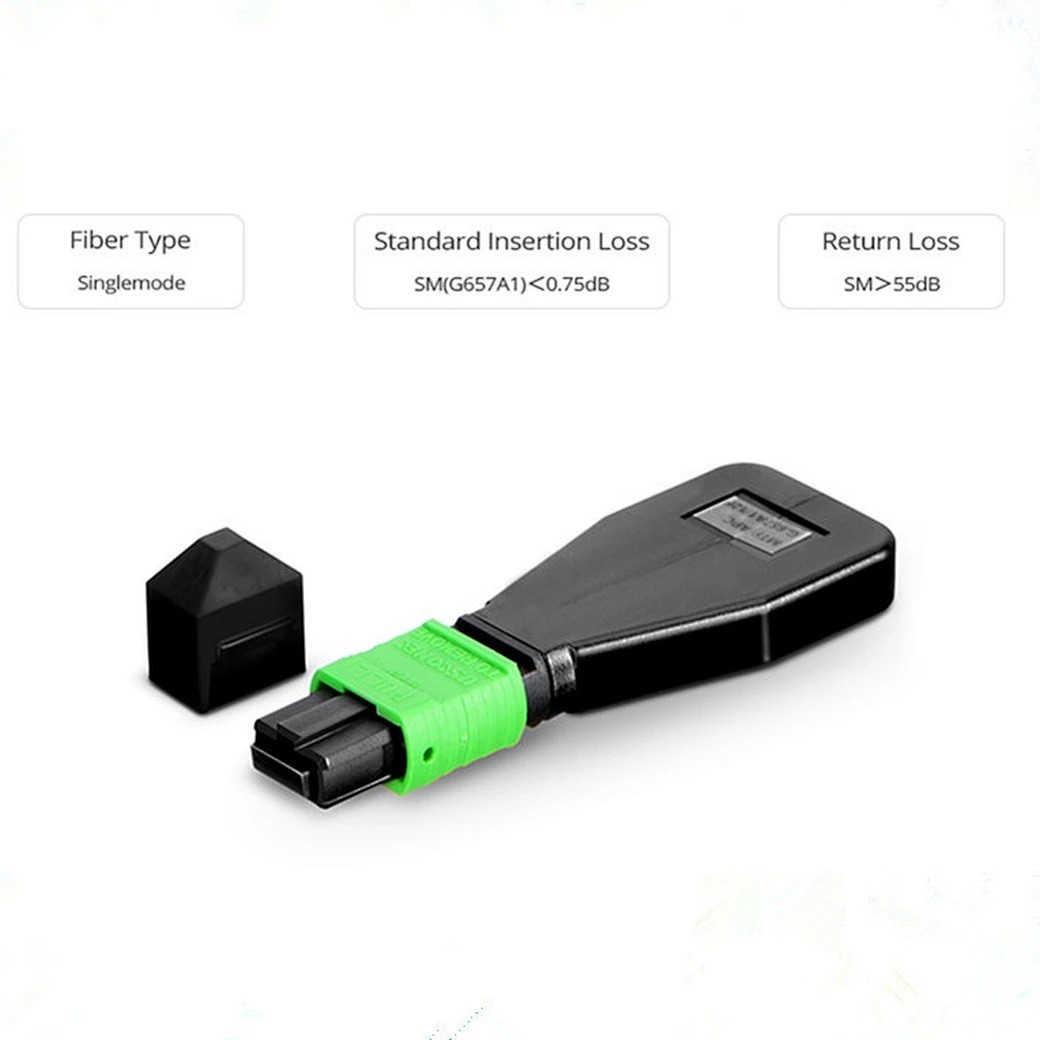

QYY- MTP APC 12 Core SM Fiber Optic Loopback
Features:
. Low insertion loss, High return loss
. User friendly, Compact size
. PVC or LSZH Jacket
. PC/UPC/APC polish
. Good exchangeability and repeatability
. Comply with Telcordia GR-326-CORE Specification *100% functionally
. tested guaranteeing performance and integrity
specifications：
Cable OD : 0.9/2.0/3.0mm
Housing Material : Metal
Insertion Loss : <0.3dB Return Loss >50dB
Specification:
|
- |
Singlemode |
Multimode |
OM3 10G |
|
Connector Type |
LC, SC, MT-RJ, MU, ESCON, FDDI |
||
|
Cable type |
Simplex cable |
||
|
Jacket Color |
Yellow |
OR/GY/PP/BL |
Aqua |
|
BN/RD/PK/WH |
|||
|
Insertion Loss |
≤0.1dB |
≤0.2dB |
≤0.2dB |
|
Return Loss |
≥50dB(UPC) |
/ |
/ |
|
Exchangeability |
≤0.2dB |
≤0.2dB |
≤0.2dB |
|
Repeatability(500 matings) |
≤0.1dB |
≤0.1dB |
≤0.1dB |
|
Tensile Strength |
≥5kg |
||
|
Operating Temperature |
-20~+70ºC |
||
|
Storage Temperature |
-40~+70ºC |
||
