Description

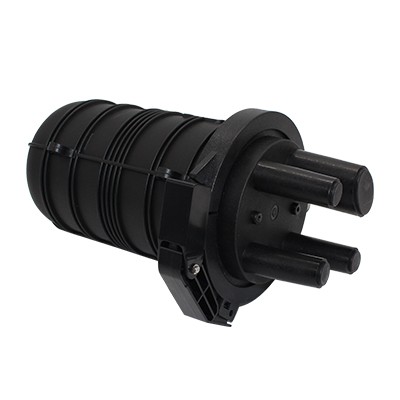

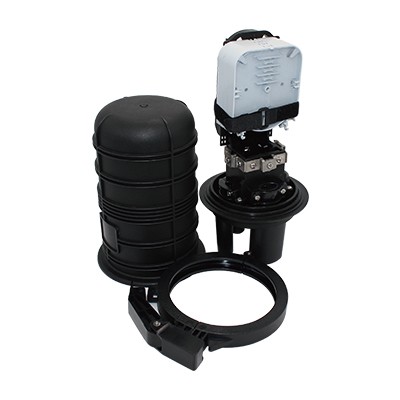

QYY- 48 Cores Fiber Optical Joint Closure Box
Specifications：
. Sealing method: heat shrink type
. Size: H300 * D185MM
. Weight: 1.1KG
. Cable ports: 4
. Cable port diameter: 3 round ports: Φ18mm 1 oval port: Φ19*30mm
. Number of fiber splices: 12-48 (cores)
. Number of splice trays: 12/24 (cores)
. Maximum fiber capacity: 48 (cores)
. Operating temperature: -40~65°C
. Protection level: IP68
Features：
. Use mechanical or heat shrink sealing method. Excellent sealing performance.. Bending radius>40mm, enough space for joints.
. No special training required. Easy to install and reopen.
. The seal is made of high-quality plastic and aging-resistant and UV-resistant materials. Good quality and long service life.
. A variety of sealing rubbers are optional, suitable for cables of different sizes.
