Description

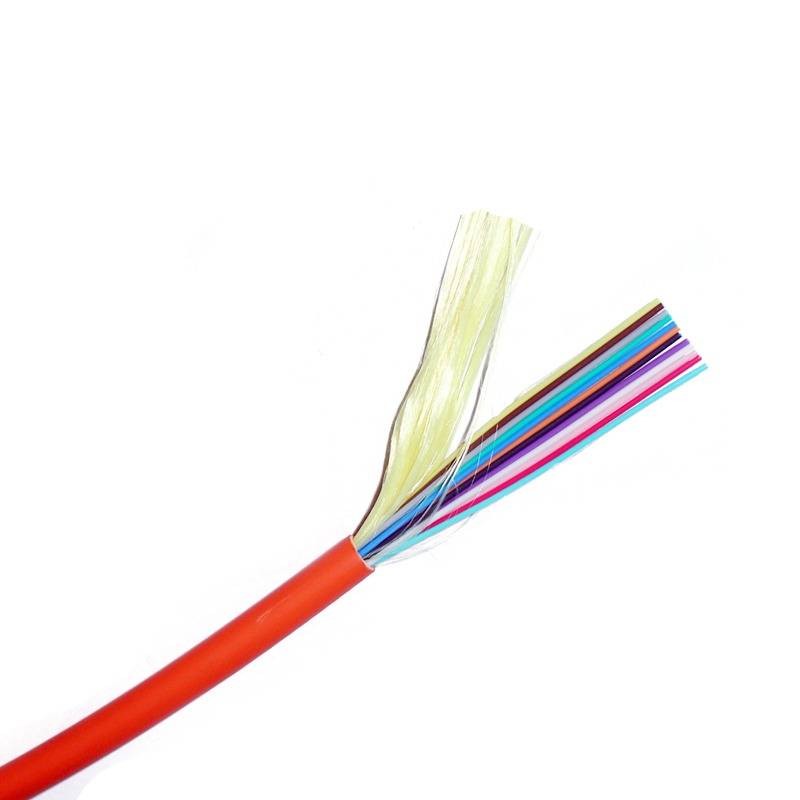

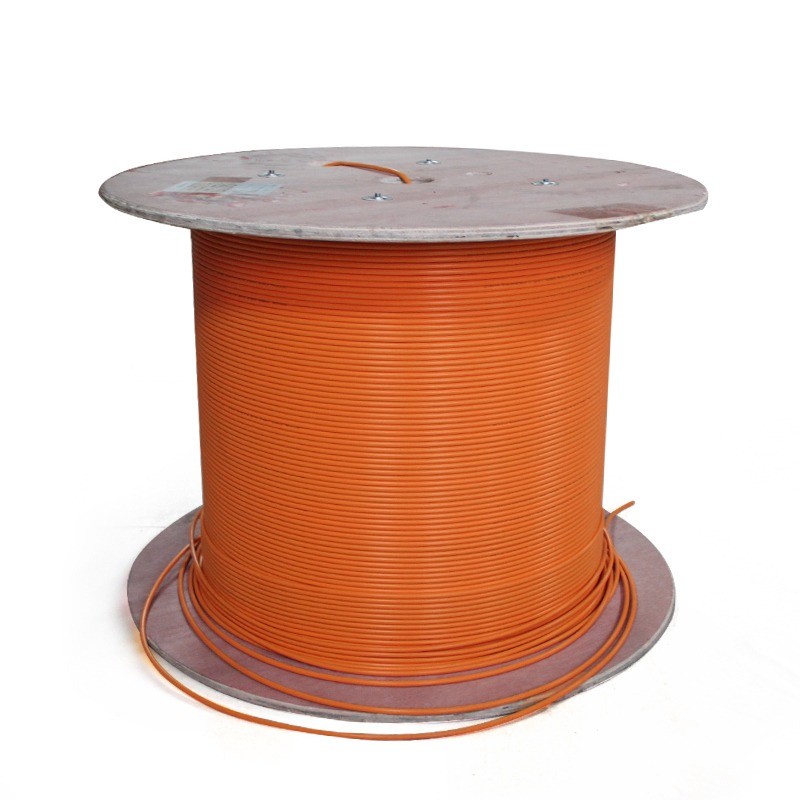

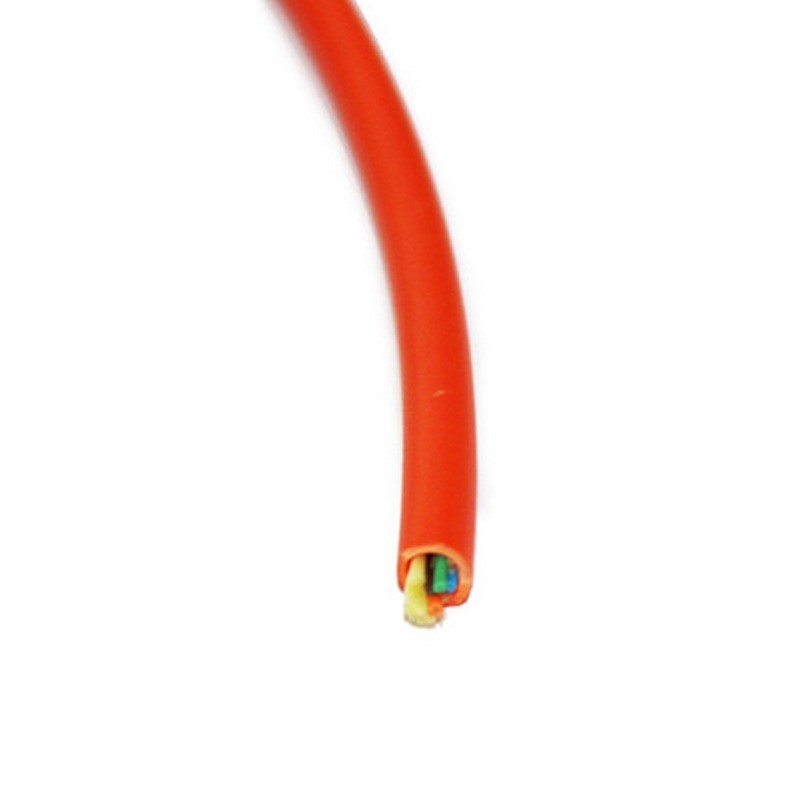

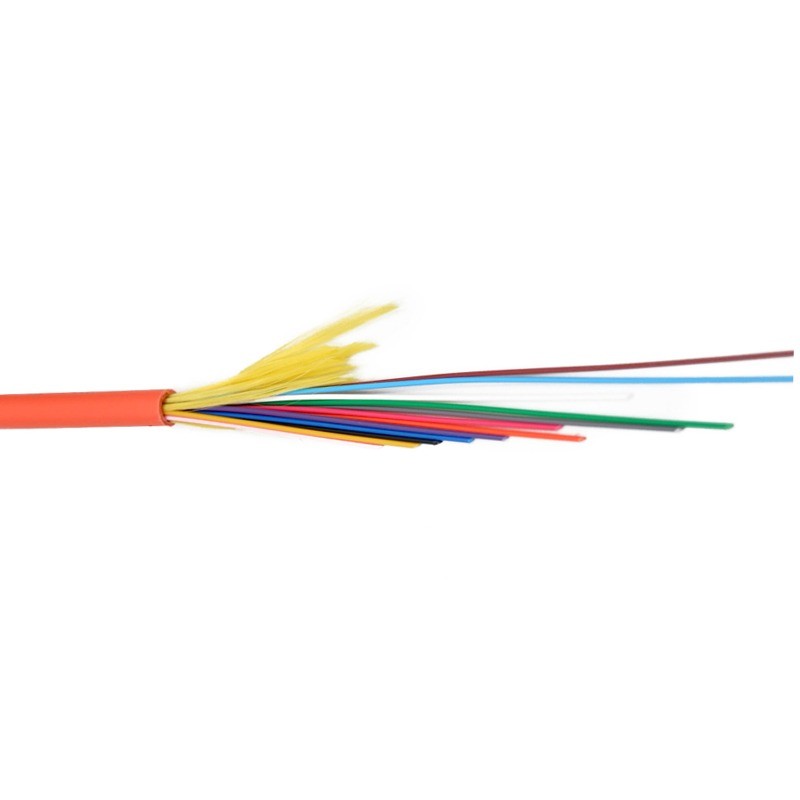

QYY- Indoor Multimode GJFJV Fiber Optic Cable
Feature：
1. Small diameter, light weight,flame retardant,excellent strippability
2. The external diameter is small, and it has good bending performance.
High count aramid fiber reinforces optical fiber cable strength, used in fiber to the tabletop and the application of the vertical backbone of the building data;
3. Multi mode 62.5/125, multi mode 50/125, single mode and many other specifications can be provided.
4. Adopt tight sleeve fiber, and have strong mechanical protection.
5. The outer sheath uses flame-retardant PVC or LSZH materials.
6. Excellent compression and bending, and better avoid the external environment infringement;
7. Optical fiber cable performance meets the requirements of light transmission, mechanical properties and combustion characteristics stipulated by the industry.
specifications：
| Core | 4 /6 /8 /12 core |
| Application |
1.For indoor wiring
2.For pigtails and jumpers
3.Optical connection for optical instruments and equipment
4.Optical connection for optical communication equipment room and optical distribution frame
|
| Number of cores |
size (mm) |
weight (kg/km) |
Allowable tensile force (N) |
Allowable crushing force (N/100mm) |
minimum bending radius (mm) |
Applicable temperature range (℃) |
|||
| Long term | Short term | Long term | Short term | dynamic | Static | ||||
| 4 | 2.5X2.9 | 8 | 80 | 200 | 200 | 500 | 20H | 10H | -20~+60 |
| 6 | 2.5X3.5 | 10 | 80 | 200 | 200 | 500 | |||
| 8 | 2.5X4.1 | 13 | .80 | 200 | 200 | 500 | |||
| 12 | 2.5X5.2 | 16 | 80 | 200 | 200 | 500 | |||
