Description

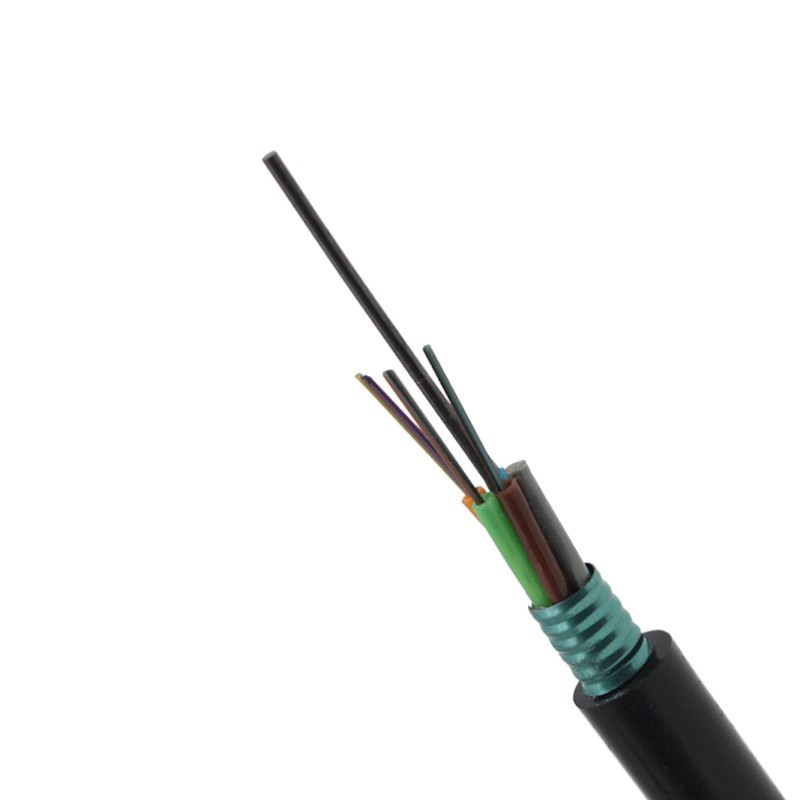

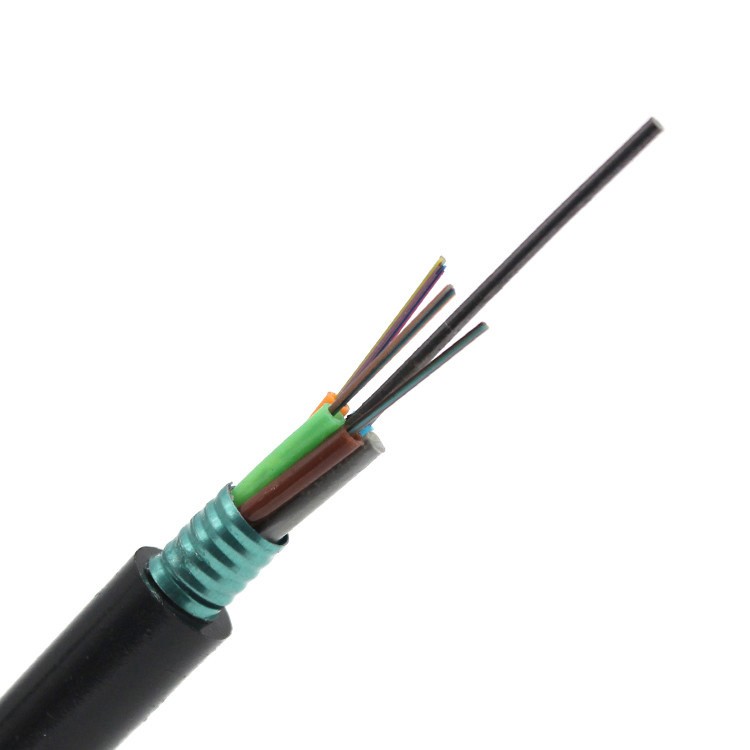

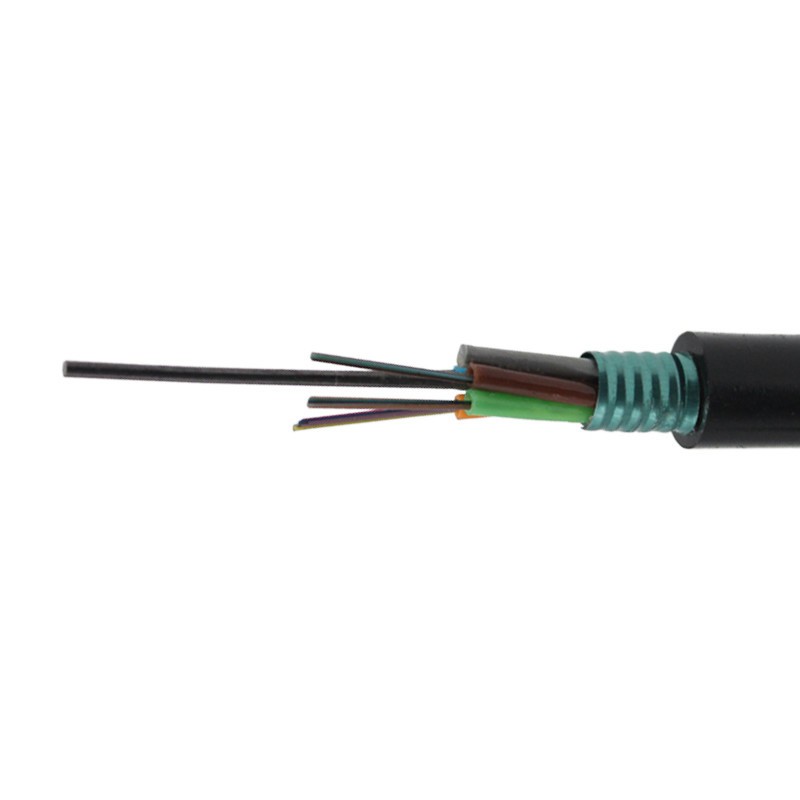

QYY- 48 Core GYTS Outdoor Optical Cable Underground
Features：
. Adopt "SZ" bidirectional layer twisting technology
. Filling water-blocking ointment step by step, full-section water-blocking
. The steel (aluminum) belt has reliable bonding with the edge, high strength, and no cracking when
twisted
. Stable fiber excess length control
. After the cable is formed, the additional attenuation of the optical fiber is almost zero, and the
dispersion value does not change
. Excellent environmental performance, applicable temperature range is -10℃~+70℃
. suitable for overhead, pipeline, direct buried and other laying methods
Application：
. These corrugated steel tape armored cables are suitable for installation in aerial or duct environment
. for long haul communication, LAN
Parameters：
| Product Name | GYTS fiber optic cable |
| Fiber Count | 12-144 Fibers |
| Construction | Stranded Loose Tube |
| Fiber Type | Singlemode G.652D |
| Outer Jacket Material | PE(Black) |
| Weight | 100kg/km |
| Armor Layer | Aluminum Tape |
| Application | Aerial and Duct |
| Jacket Diameter | 9.8mm-16.1mm |
| Jacket Material | PE |
| Cable Length | 1KM-5KM per drum |
| Test Wavelength | 1310/1550nm |
| Operation Temperature | -20℃ to +60℃ |

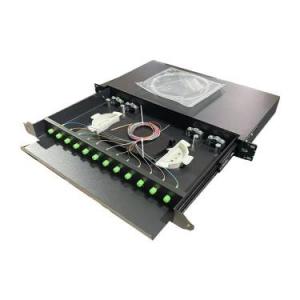

-Adapter-1U-19''-Fiber-Adapter-Panel.392.1.jpg "QYY- 24 Ports 48 Fibers SC UPC SM Duplex (Blue) Adapter 1U 19'' Fiber Adapter Panel")
