Description

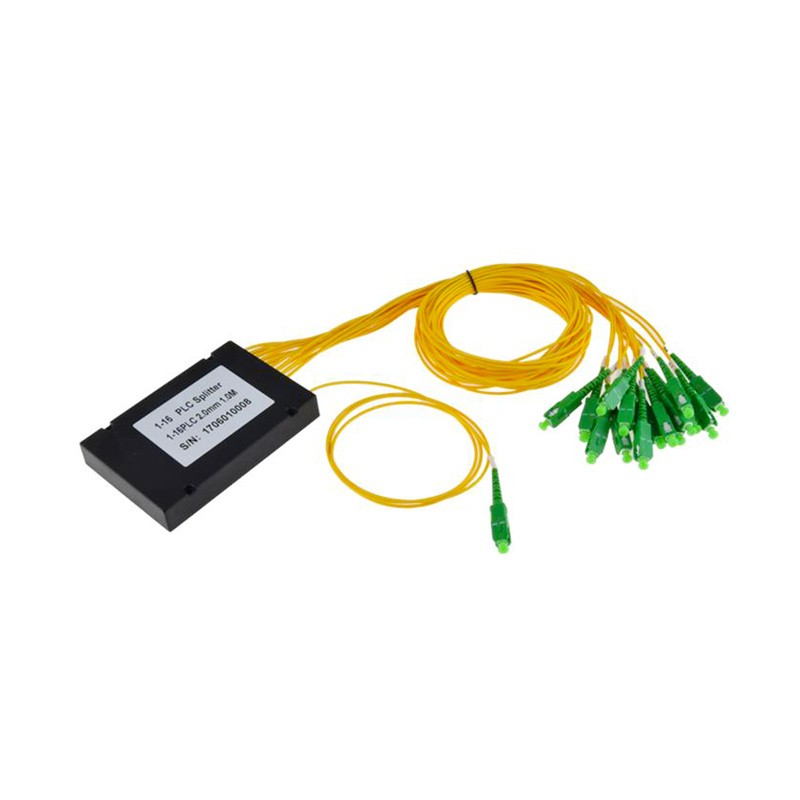

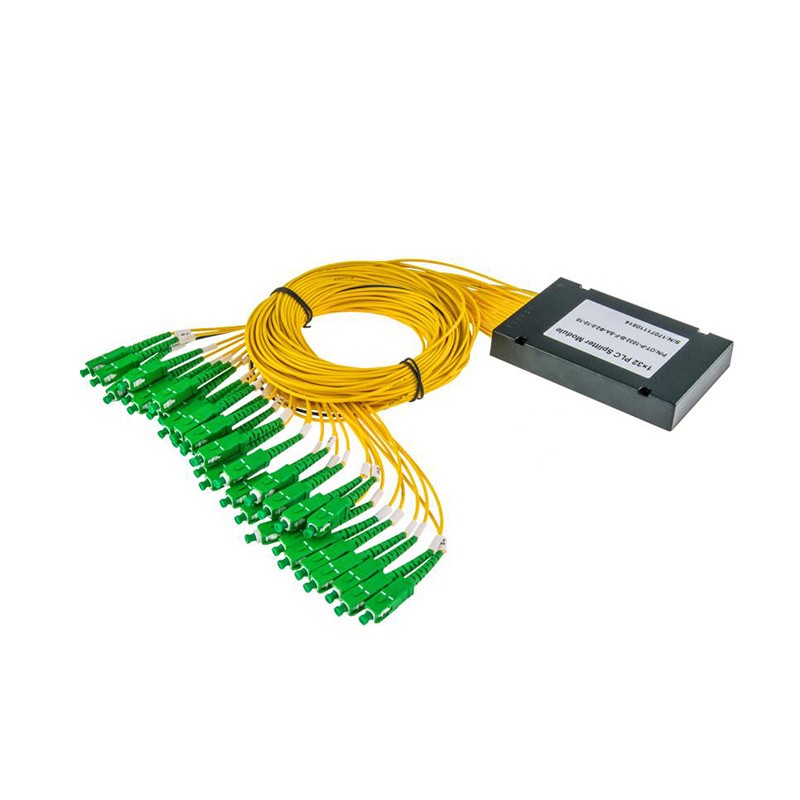

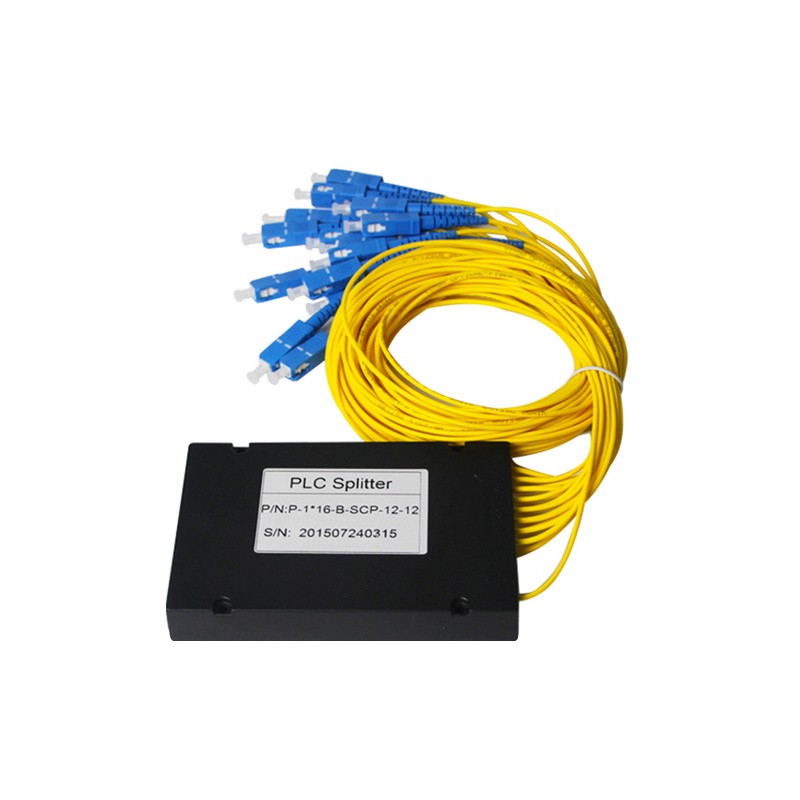

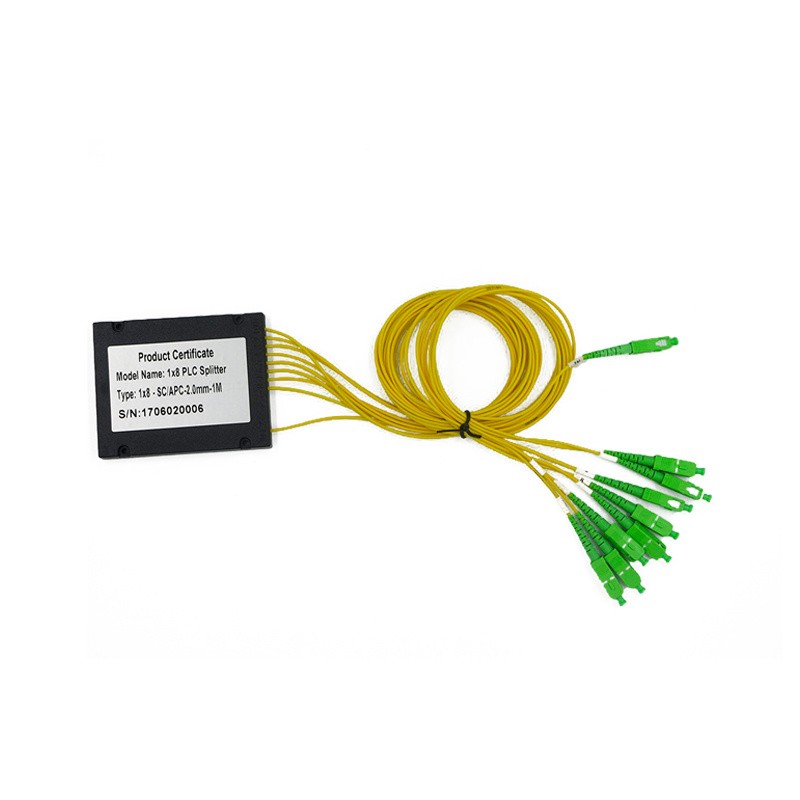

QYY- ABS PLC Splitter 1xN
Features:
. 1xN or 2xN optional;
. With or without connector optional;
. Connctor SC/UPC, SC/APC, LC/UPC, LC/APC optional;
. Pigtail length from 0.35m to 1.5m optinal;
. Low PDL
. Compact Design
. High Return Loss
. Low Insertion loss
. Uniform Power Splitting
. Wide Operating Wavelength
. Wide Operating Temperature
. Excellent Environmental & Mechanical Stability
Specifications:
Split Ratio
1x2
1x4
1x8
1x16
1x32
2x2
2x4
2x8
2x16
2x32
Wavelength
1260~1650 (nm)
Insertion Loss(dB)
≤4.6
≤7.5
≤11.0
≤14.0
≤17.0
≤4.5
≤8.0
≤11.7
≤14.7
≤17.9
Uniformity(dB)
≤0.6
≤0.6
≤0.8
≤1.2
≤1.5
≤0.8
≤1.0
≤1.0
≤1.5
≤2.0
PDL(dB)
≤0.2
≤0.2
≤0.2
≤0.3
≤0.3
≤0.2
≤0.2
≤0.2
≤0.3
≤0.3
Directivity(dB)
≥55
Operating temperature
-40~+85
Application：
. Optical Signal Distribution;
. Data Communications;
. Lan and CATV System;
. FTTX Deployment;
. FTTH Network;
. Passive Optical Networks (PON)
