Description

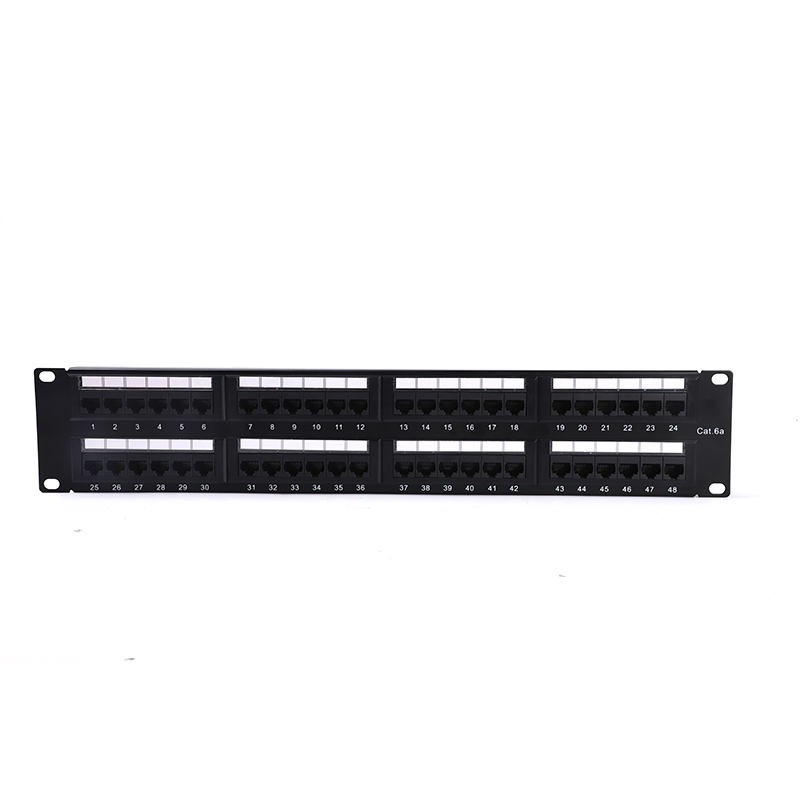

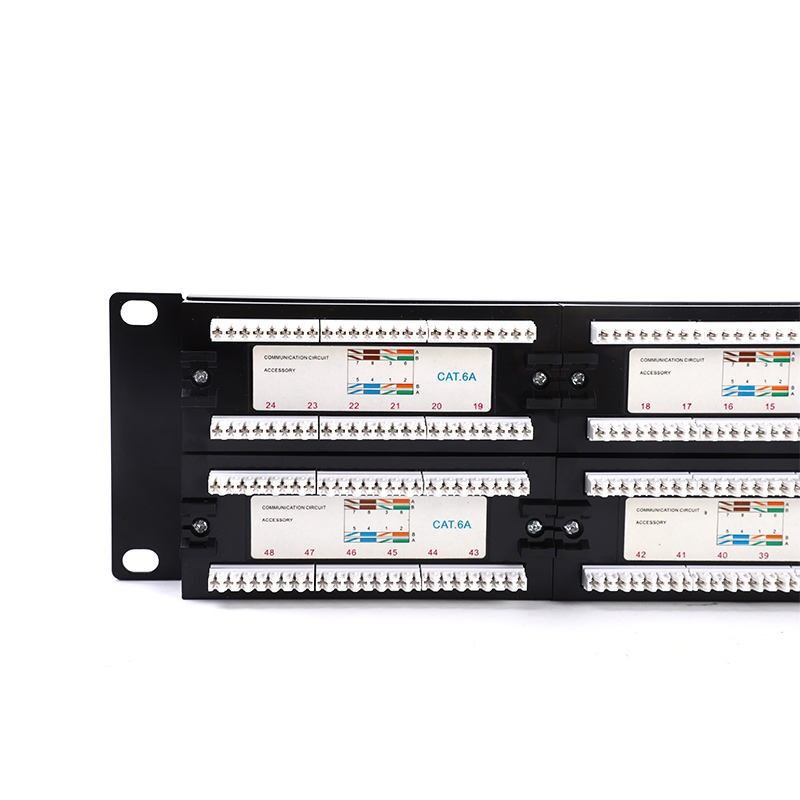

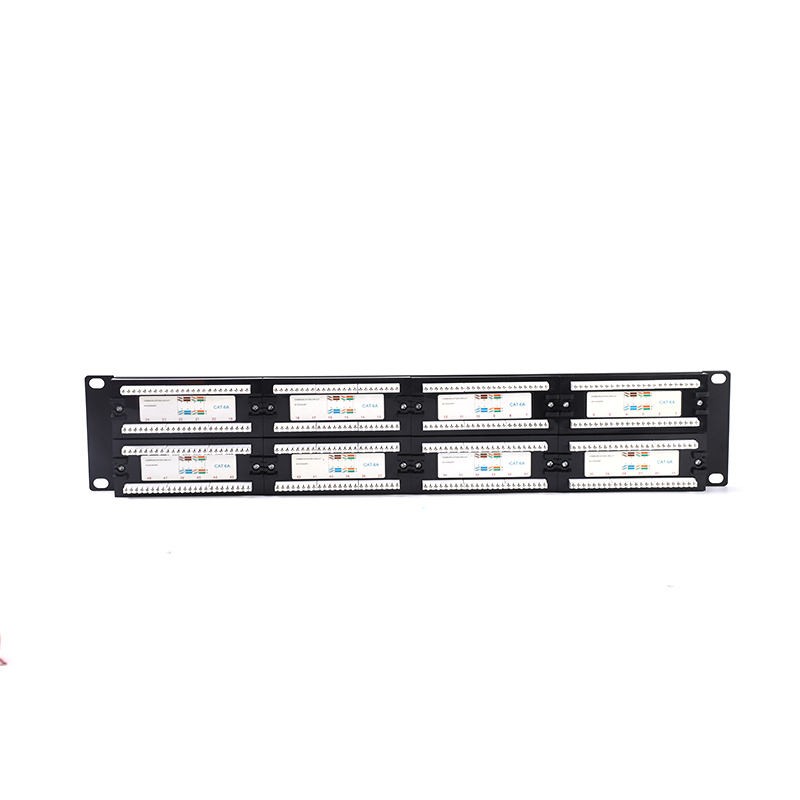

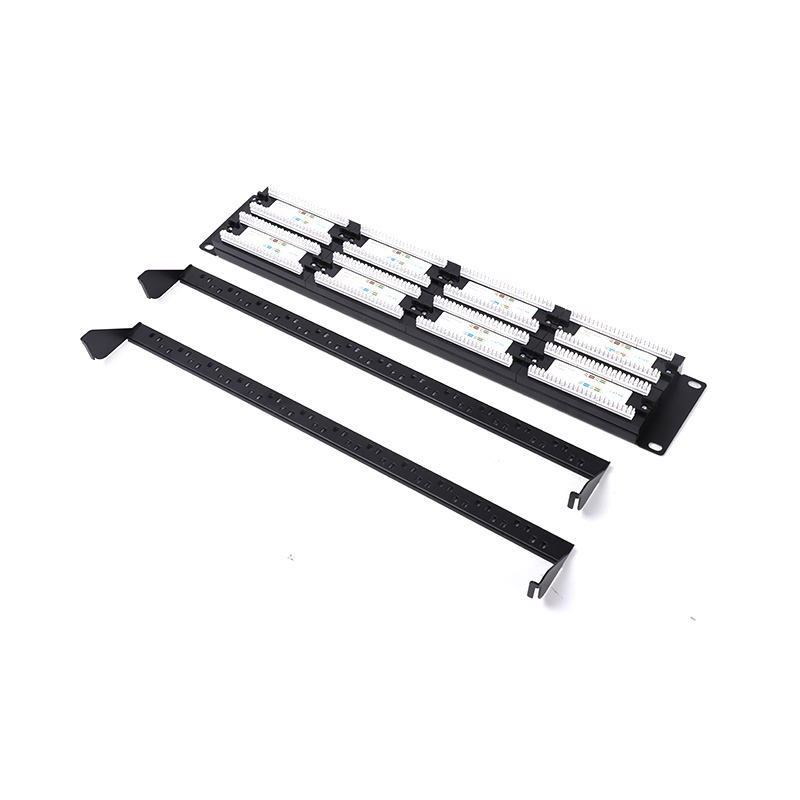

QYY- Cat5e Cat 6 Cat6a Cat7 Cat6 UTP Patch Panel Rack Stp 16-48 Port Patch Panel
Features：
Electrical:
. According to UL 1863
. Current rating: 1.5 Amp Max.
. Voltage rating: 150 Volts
. Contact resistance: 20 m-ohm
. Insulation Resistance: 500M-ohm
. Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min
Materials:
. Housing: Iron
. IDC: PC , Accept 22-26 AWG Solid Wire.
. PCB: FR4 1.6mm(0.04") thickness, 2 layers
. Contact: PC ,
. 0.45mm(0.018") Diameter Phosphor bronze with Gold plating on contact area.
Parameters：
| Model Number | Patch panel |
| Height | 2U Patch Panel |
| Type | UTP Patch Panel |
| Application | Networking,Telecommunication |
| Materials | iron |
| Color | Black |
| Size | 19 Inches |
| Warranty | Yes |
| Category | Cat5e/6/6A |
Applications：
. Network
