Description

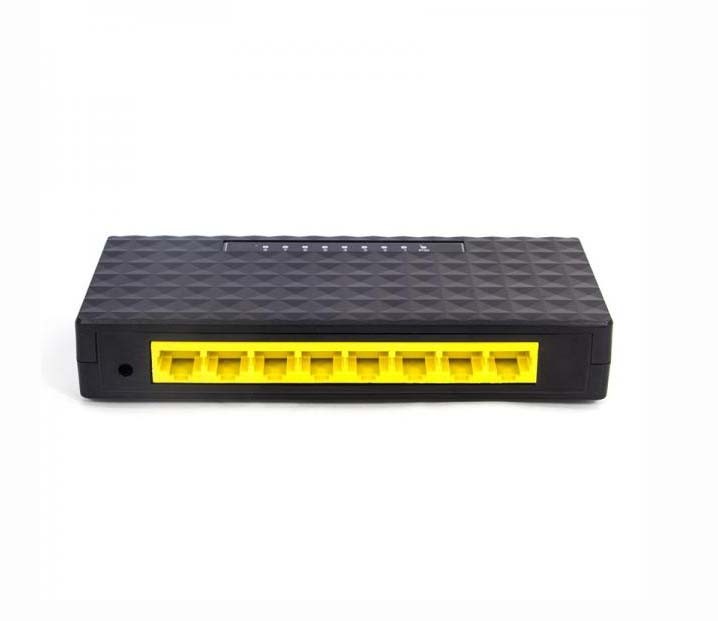

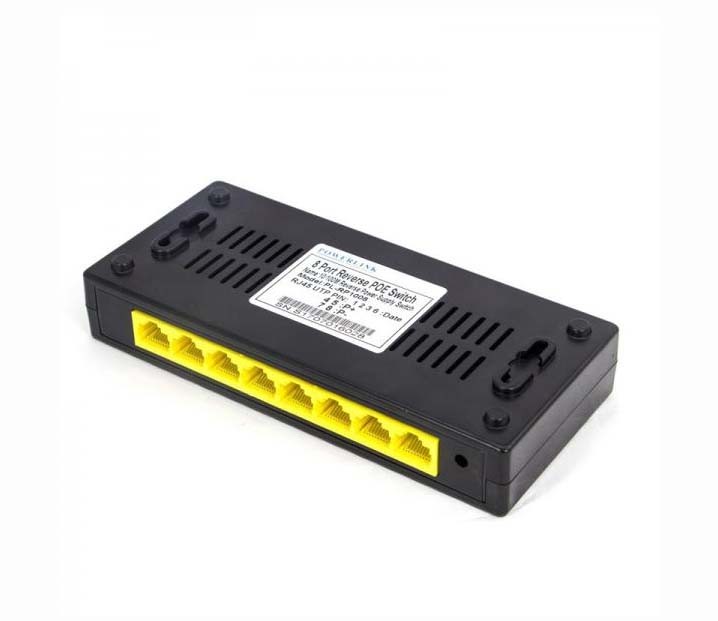

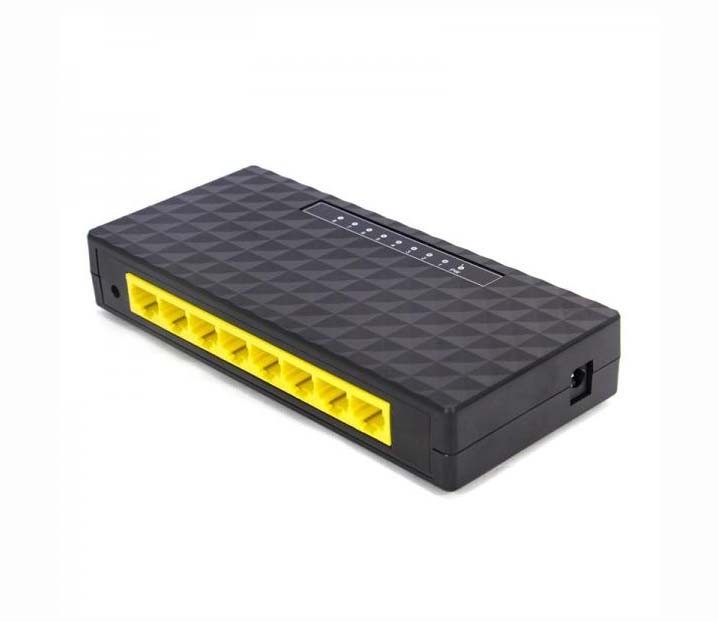

QYY-Mini Network Poe 8FE Gigabit Ethernet Switch
Feature:
1.IEEE 802.3af power or reveres power on up to 8 ports
2.Supply power to wireless access points and surveillance cameras and FTTH ONU over Cat-5 cabling
3.8 10/100/1000 Mbps Ports with AutoUplink™
4.Supports PoE power up to 15.4W for each PoE port
5.Supports PoE power up to 130W for all PoE ports
6.Supports PoE IEEE 802.3af compliant PDs
7.Supports IEEE 802.3x flow control for Full-duplex Mode and back pressure for Half-duplex Mode
8.1K entry MAC address table of the Reverse PoE Switch with auto-learning and auto-aging
9.LED indicators for monitoring power, link, activity and speed
10.External Power Adapter Power Transceiver, Optical Switch, Media Converter, Optical Converter
Application：
1.FTTH PON system
2.HD monitor transmission and power supply
3.Wireless AP layout transmission and power supply
4.Network telephone transmission , intelligent house and home system
5.Intelligent transportation supervisory system (ITS)
6.High-speed Way supervisory/Tele-Communication System
7.Security protection system, TV medical treatment
8.Long-distance Muti-media Schooling, Campus monitoring
9.Long-distance broadcast television transmission system
10.High-building Security Protection, Military Tele-Com projects
Specification：
Ic chips
Realtek Industrial grade IC chips
POE Function
REVERSE port1~port8 VOL DC9-57V 45+ 78-
Characteristic
Each port POE signal indicator
High quality metal case
Curing isolation function
Interrupt network loop function
Stop broadcast storm
DHCP conflict prevention
Interface
8port 10/100/1000 M- REVERSE POE
(All ports support MDI/MDIX adaptive)
1 port DC out 12V MAX 2A(5.5/2.1)
Forwarding mode
Store and forward
network media
10BASE-TX: And more than 5 types of unshielded twisted pair(≤150m)
100BASE-TX: And more than 5 types of unshielded twisted pair(≤150m)
Performance specification
Bandwidth:1.6Gbps (Non blocking)
network delay(10 to 100M bps):The maximum delay of less than 20 microseconds；MAC:2KB
Compatible network protocols and standards
IEEE 802.3i 10BASET
IEEE 802.3u 100BASETX
IEEE 802.3x Flow Control,
IEEE 802.1Q VLAN bridge operation
LEDs indicator
Each port connection status, the working state of PoE system of the power indicator light
Power support
DCIN:9V-57V or DCOUT:12V MAX 2A
Physical specifications
160mm*70mm*26mm(L*W*H)
Package size
167mm*80mm*62mm(L*W*H)
Environmental Standard
Working temperature:0°～55°C
Storage temperature:-20°～75°C
Working humidity:10%～90%,No condensation
Storage humidity:10%～95%,No condensation
Working height:Altitude 3000 M Altitude(10,000ft)
Storage height:3000M Altitude(10,000ft)
Safety
surge absorption
weight
0.5kg(+power cable)
warranty
1 years
