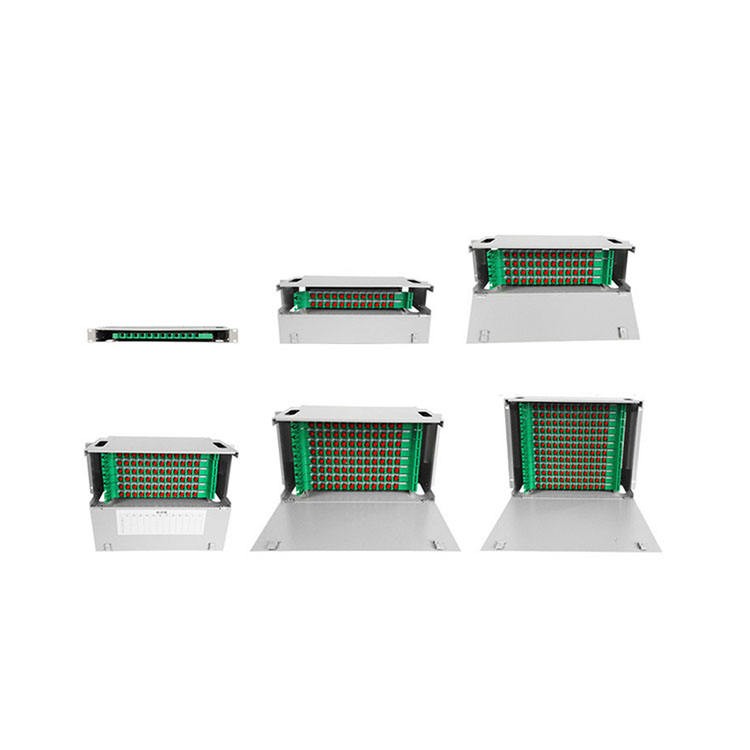

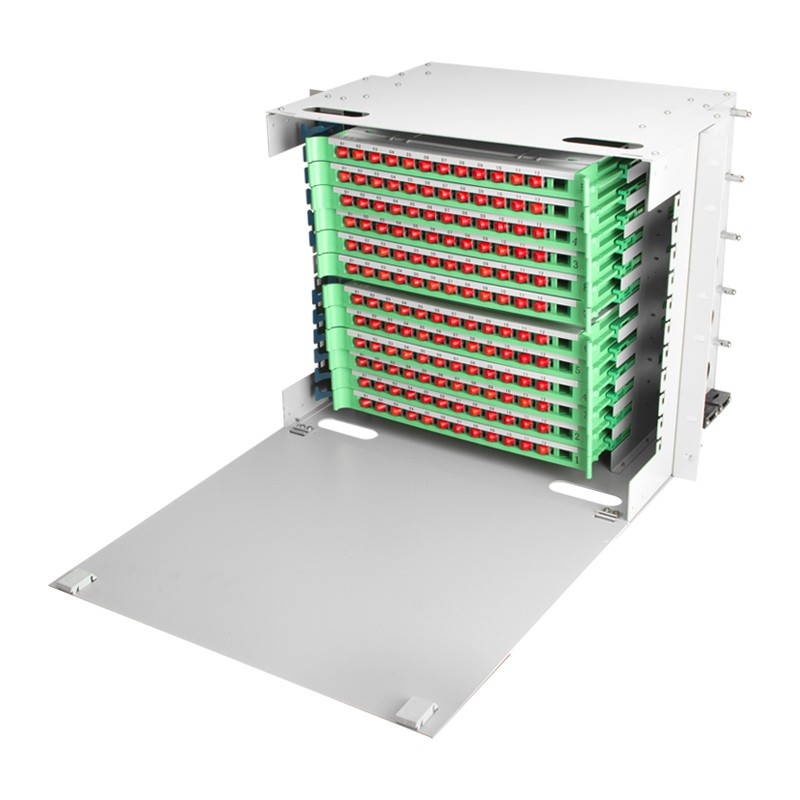

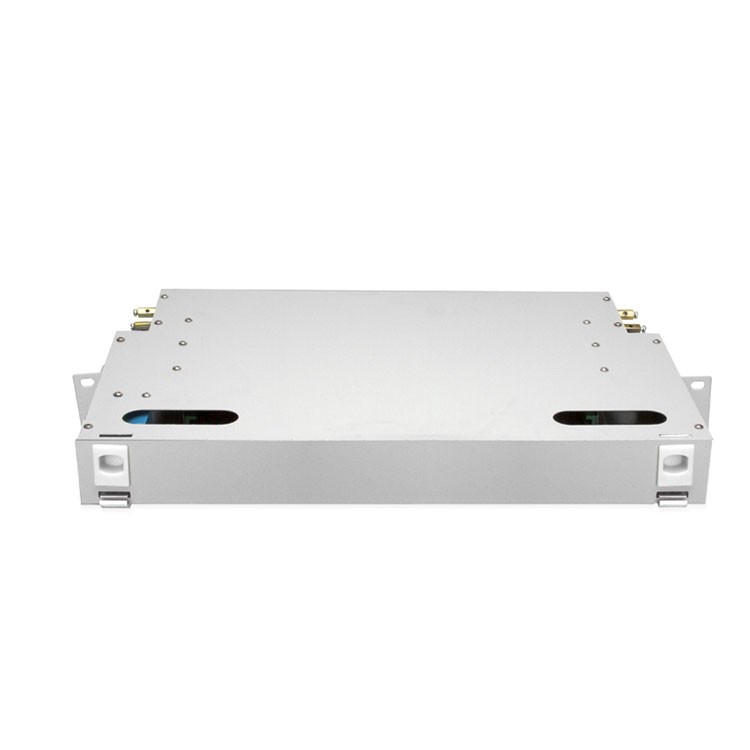

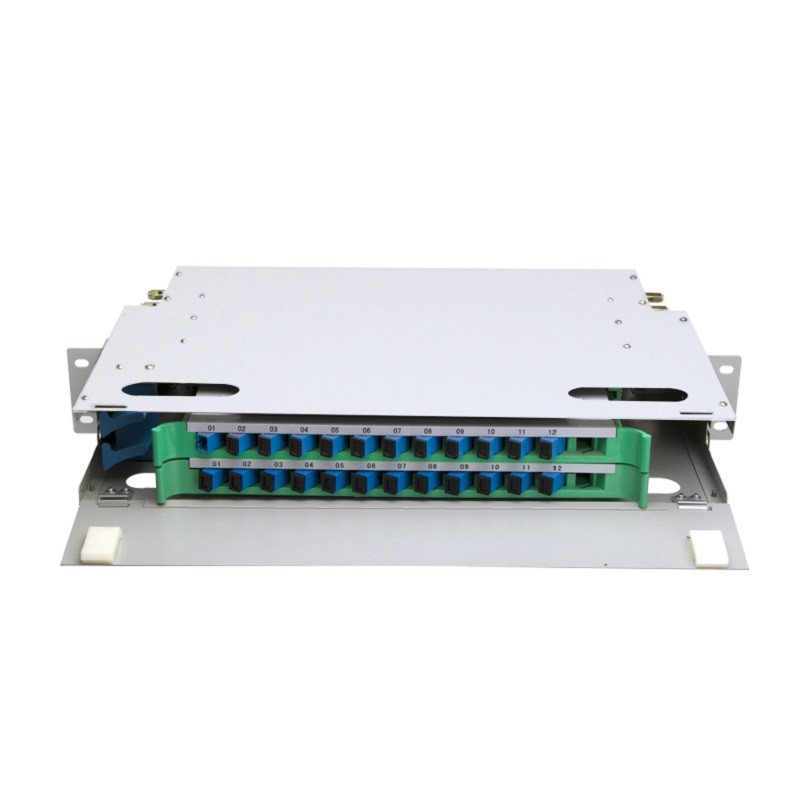

QYY- SC ST FC Sliding Type Fiber ODF 12 24 48 96 144 core

Mode : Single Mode multi-mode

Color：silver gray

Size：2U

Connector: for FC,SC,ST

QYY- SC ST FC Sliding Type Fiber ODF 12 24 48 96 144 core

Specifications:

Operating temperature	-5°C +40°C
Relative humidity	≤90% (when the temperature is below 30°C)
Atmosphere pressure	70Kpa – 106Kpa
Storage temperature	-40°C - +70°C
Insertion loss	≤0.20dB
Return loss	PC≥45dB ,UPC≥50dB,APC≥60dB
Durability	>1000times
Insulating resistance	≥1000 MΩ 500V
Voltage-resistance strength	Under the effect of 3000V, 1min, non-puncture, and no arc-over
Wavelength	850nm, 1310nm, 1550nm
