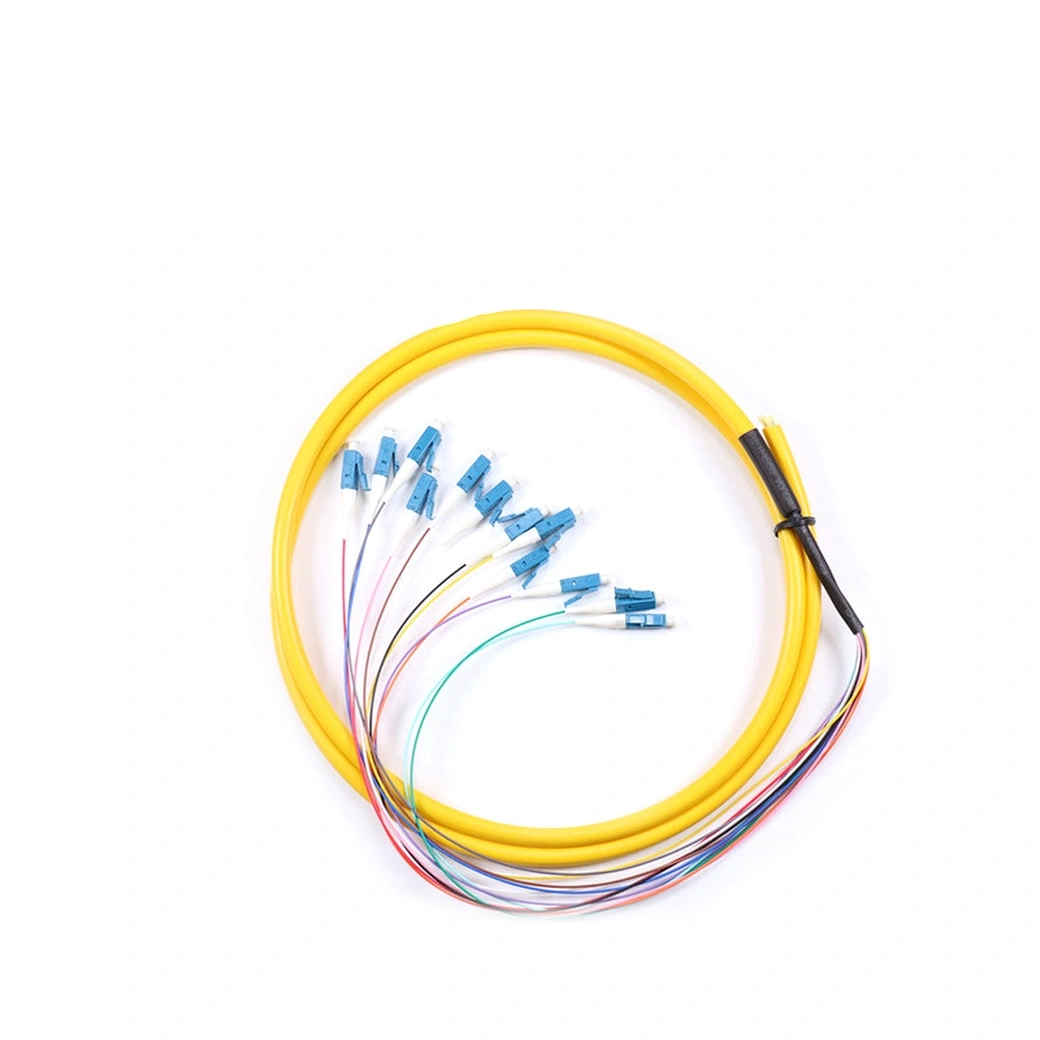

QYY-2 4 8 12 port fiber optic patch panel Pigtail

Insulation: pvc

Length：1m/2m/3m/5m/customized

Connector：SC/LC/ST/FC

Jacket ：PVC LSZH LSOH PE HDPE

QYY- 2 4 8 12 port fiber optic patch panel Pigtail

Features:

. 100% test before shipment

. Low insertion loss and high return loss

. Serialized & Individual Test Records

. Meets ROHS and Bell core GR 326-core standards

. Custom Configurations Available at No Extra Charge

. Available in fiber bunch, ribbon fan-out, pigtail available

Applications:

. Optical access network

. Data processing networks

. Premise installations

. Telecommunication networks

. Fiber optic communication networks

. CATV, LAN, WAN, Test &Measurement

Specification:

Parameter		Single Mode				Multi Mode
Basic	Fiber connector	FC, SC, LC, ST, MU, MTRJ, MPO
	Ferrule End-face	PC	UPC	APC		UPC
	Insertion Loss	≤0.2dB	≤0.2dB	≤0.3dB		≤0.3bB
	Return Loss	≥50dB	≥55dB	≥60dB		≥35dB
	Ceramic Ferrule Specification	125.5um concentricity deviations:<=1um				127um concentricity deviations:<=3um
	Suitable Fiber	9/125um				50/125um,62.5/125um
End-face Geometry	Radius of Curvature	7~25mm		5~12mm	N/A
	Fiber Protrusion	≤50nm		≤100nm	N/A
	Fiber Under Cut	≤100nm		≤100nm	N/A
	Apex offset	≤50um
Mechanical	Exchangeability	≤0.2dB
	Salt Spray	≤0.1dB
	Drop	≤0.2dB(1.5M, 5 drops)
	Vibration	IL ≤0.2dB(550Hz, 1.5mm)
	Repeatability	≤ 0.1dB(1000 times)
	Durability	> 1000 times
	Operating Temperature	-40°C ~ +85°C
