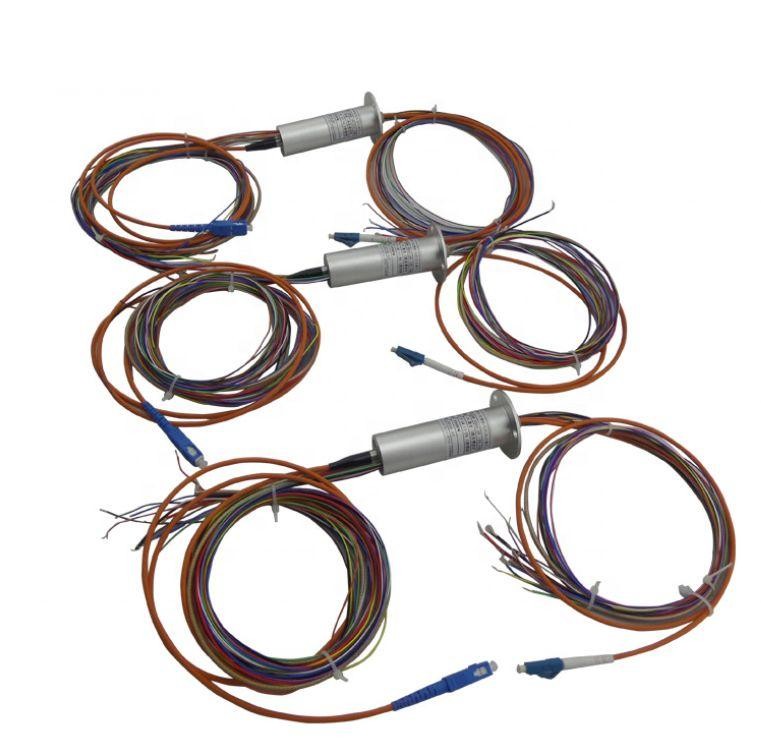

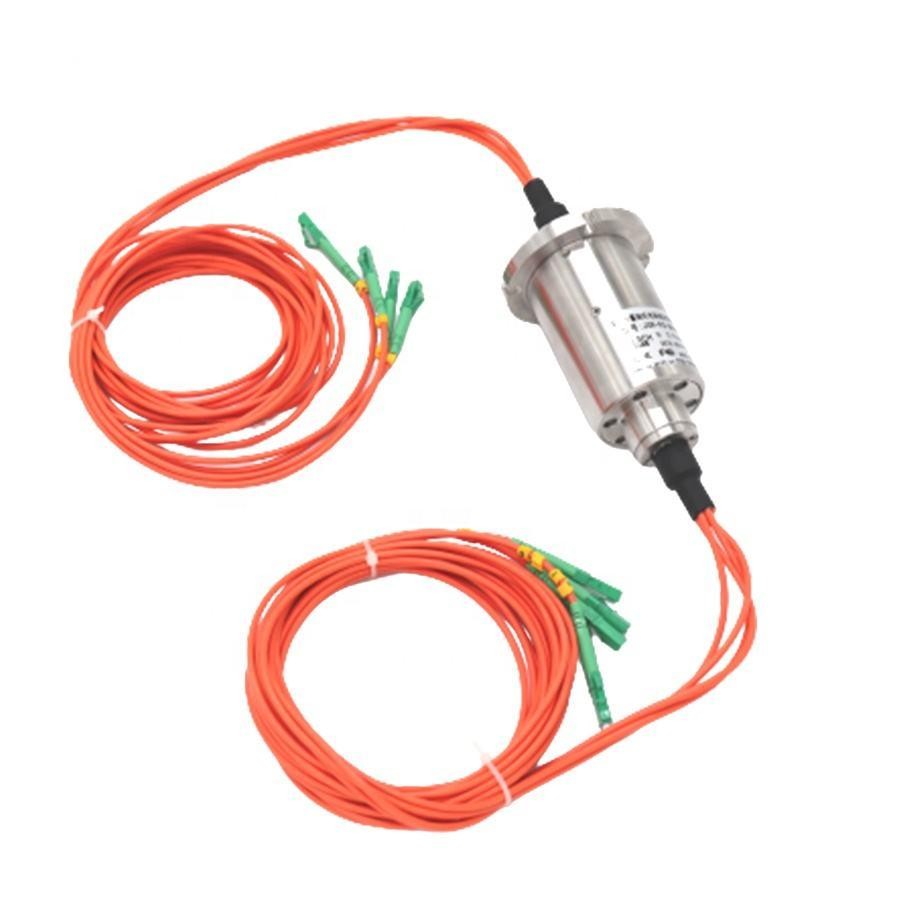

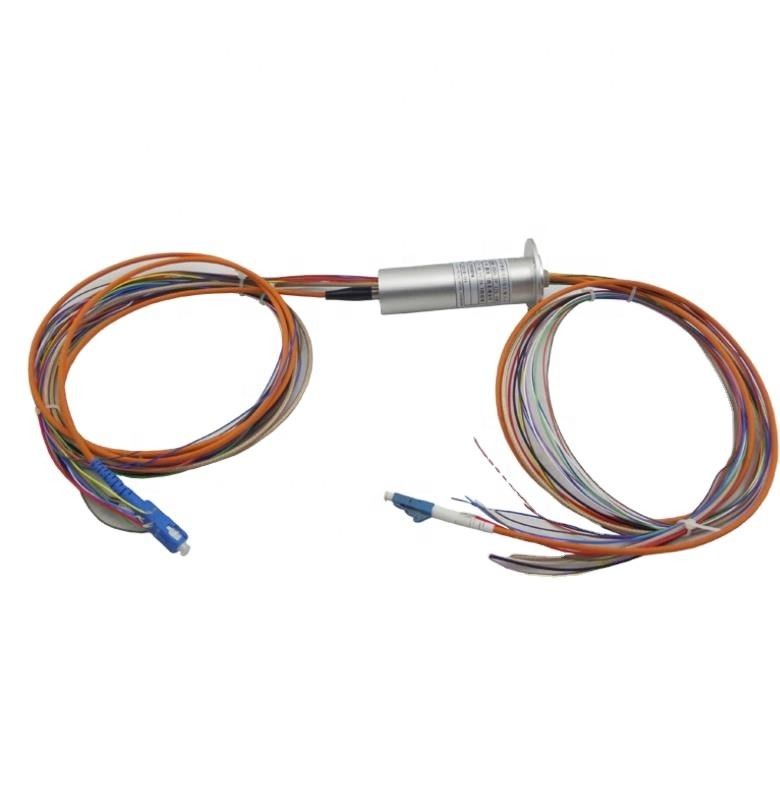

  • QYY- 2 core waterproof channel RF slip ring fiber optic rotary joint
  • QYY- 2 core waterproof channel RF slip ring fiber optic rotary joint
  • QYY- 2 core waterproof channel RF slip ring fiber optic rotary joint
QYY- 2 core waterproof channel RF slip ring fiber optic rotary joint QYY- 2 core waterproof channel RF slip ring fiber optic rotary joint QYY- 2 core waterproof channel RF slip ring fiber optic rotary joint

QYY- 2 core waterproof channel RF slip ring fiber optic rotary joint

  • Product Name:Fiber Optic Rotary Joints
  • Optical Power Handling:23dBm
  • Housing Material:Stainless Steel
  • Estimated Cycle:200-400 Million Revolutions
  • Fiber Optic Rotary Joints Fiber optic slip ring Fiber optic rotary connector,RF coaxial co rotating joint FORJ
    Inquiry Send Email

    Description

    QYY- 2 core waterproof channel RF slip ring fiber optic rotary joint


    Specifications:

    Wavelength range 650-1650 nm Insertion loss ≤2 dB (typical: <0.5 dB)
    Insertion loss ripple <+/-0.25 dB Return loss (SM) ≥40 dB
    Maximum speed 2,000 rpm Pulling strength 10 N (900 um buffer)
    Start up torque <0.01 Nm Estimated life cycle 200-400 million revolutions
    Optical power handling 23 dBm Working temperature -40°C to 85 °C
    Storage temperature -50°C to 85 C°C Package style Pigtails on both ends
    Housing material Stainless steel Fiber types Single or multimode w/3 mm jacket (Kevlar/PVC)
    Connector types FC, SC, ST, SMA, or LC Dimensions 6.8 mm dia. x 28 mm length
    Weight 10 g IP rating IP 68 for all models/IP66
    Vibration MIL-STD-167-1A Mechanical shock MIL-STD-810G

    Features:

    . Using light signal transmission, no electromagnetic leakage.

    . Good sealing.
    . Resistance to electromagnetic interference
    . No contact transmission, no wear and tear.
    . Long life, can be up to 10 million RPM.
    . No friction, can be used in inflammable and explosive environment.
    . Can be used in extreme natural environment.
    . High magnetic current interference, also can work normally.



    Application:

    . ApplicatioBetween in undersea robot and control ship

    . Between in radar antenna and on-board signal processing system
    . ith the chariot rotating tower car body console
    . Between in welding robot and console
    . Remote mechanical input and output devices and control
    . The photoelectric theodolite
    . The connection between the platform and spacecraft tracking


    Aerospace/Defense
    . Armored vehicle turrets, IR and EO systems
    . Missile seeker gimbals and inertial systems
    . Helicopter de-ice systems, EO / IR trackers and target systems
    . Fixed-wing aircraft - EO/IR trackers, fire control systems, surveillance systems and targeting systems
    . Missile counter measures
    . Space - solar array mechanisms
    . Shipboard/submersible - navigation systems and fire control radar
    . Surveillance systems


    Industrial
    . Medical equipment and devices
    . Robotics
    . Index tables
    . Semiconductor handling
    . Pan tilt cameras
    . Packaging and processing equipment
    . Cable reels
    . Wind energy
    . CT scanners



    Marine
    . Remote operated vehicles (ROV)
    . Seismic surveying
    . Oceanographic winches
    . Subsea communications and control
    . Floating production, storage and offshore loading (FPSO)
    . Diving
    . Marine instrumentation
    . Down hole/wire logging and drilling
