Description

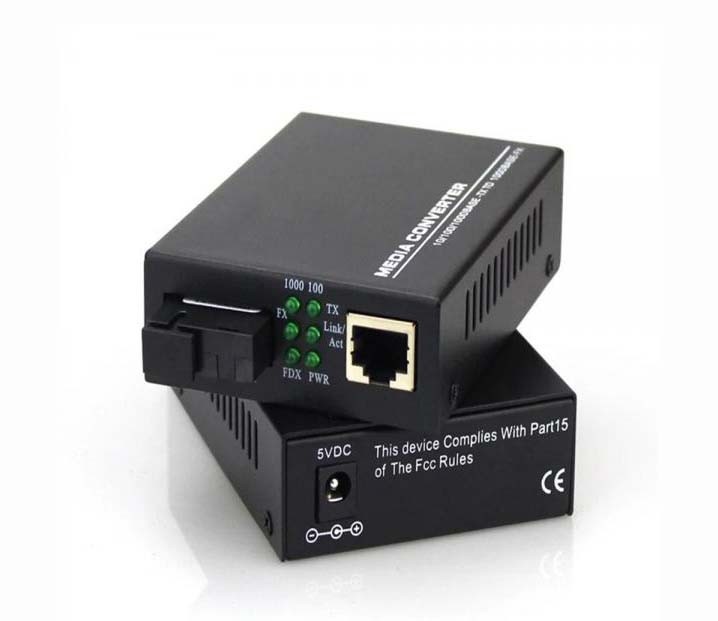

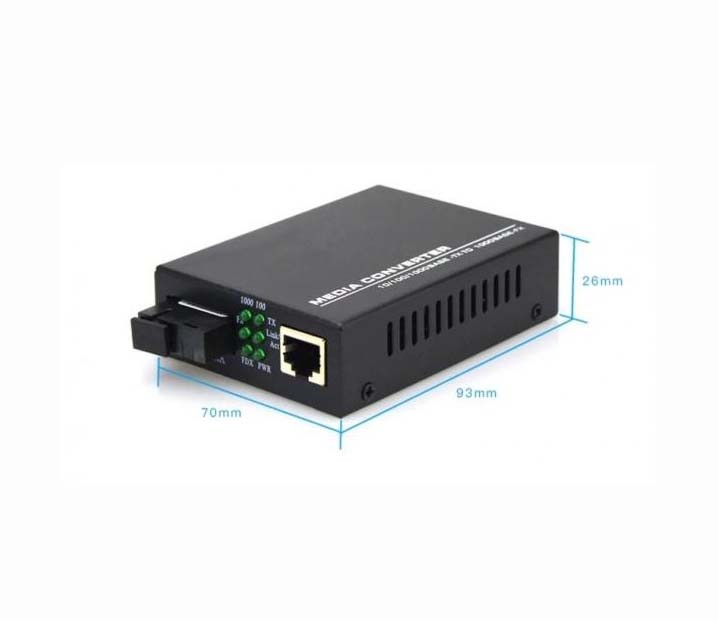

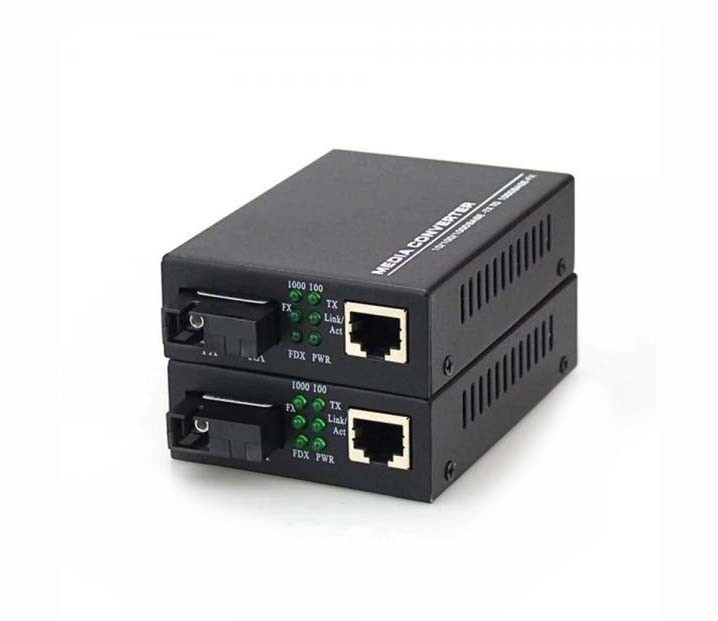

QYY-1000M Fast Ethernet Media Converter
Feature:
1.ŸComplies with IEEE 802.3, IEEE 802.3u, IEEE802.3z, IEEE802.3ab, IEEE 802.3xauto-negotiation
2.ŸWorks at 10Mbps or 100Mbps, full or half-duplex mode, or 1000Mbps full-duplex mode
3.ŸExtends distances ranging from 550m(multi-mode fiber) to 120km(single-mode fiber)
4.ŸSupports auto MDI/MDIX function
5.ŸStatus LED for easy monitoring of device status
6.ŸSupports jumbo frame size 9K bytes
7.ŸExternal power supply
8.ŸSupports independent LFP function
9.ŸFCC Class A & CE approved
Specification：
Number of Network Ports
1 channel
Number of Optical Ports
1 channel
NIC Transmission Rate
10/100 /1000Mbit/s
NIC Transmission Mode
10/100/1000M adaptive with support for automatic inversion of MDI/MDIX
Optical Port Transmission Rate
1000Mbit/s
Operating Voltage
AC 220V or DC +5V
Overall Power
<1W
Network Ports
RJ45 port
Optical Specifications
Optical Port: SC
Multi-Mode: 50/125, 62.5/125um Single-Mode: 8.3/125, 8.7/125um, 8/125,10/125um
Data Channel
IEEE802.3x and collision base backpressure supported
Working Mode: Full/half duplex supported Transmission Rate: 100Mbit/s
with error rate of zero
Some Product Modes and port Technical Parameters of Optical Port
