Description

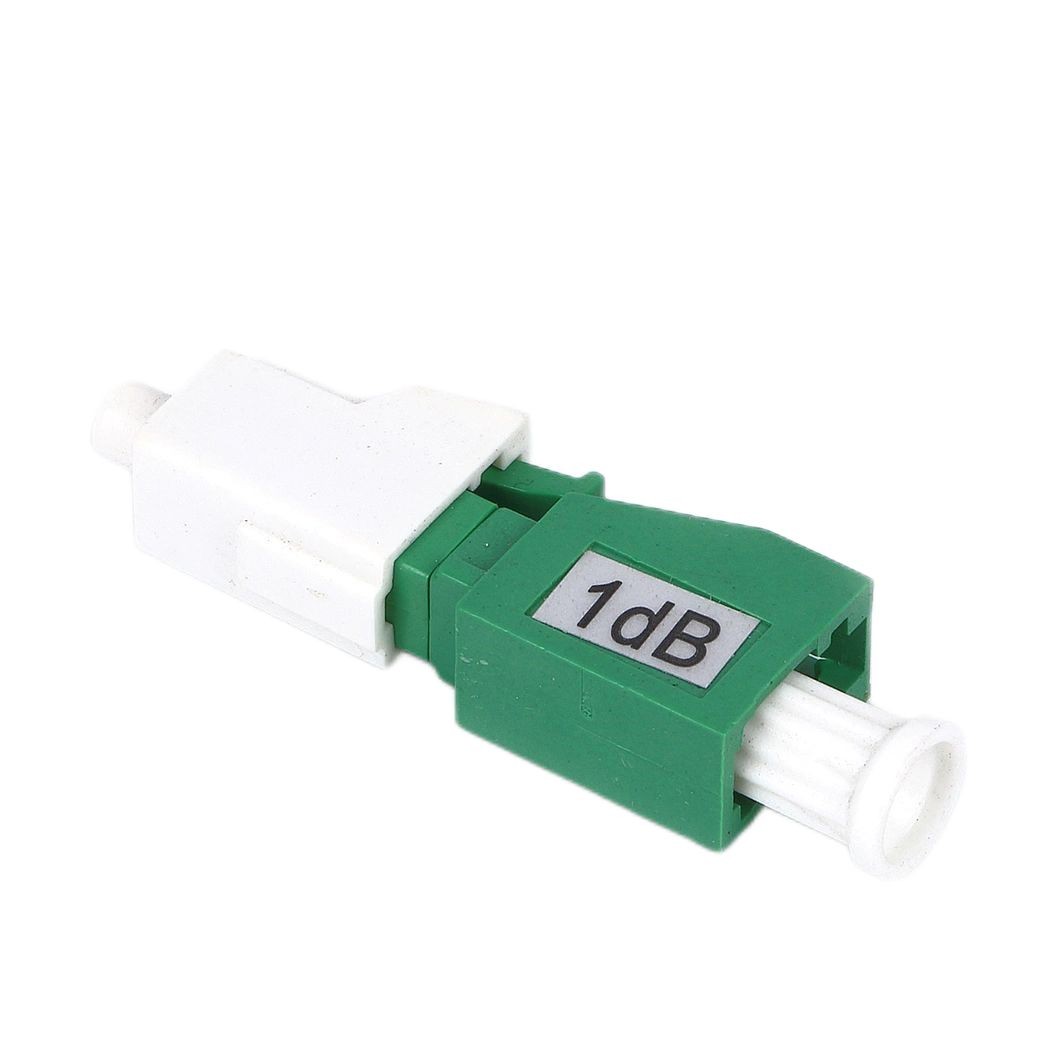

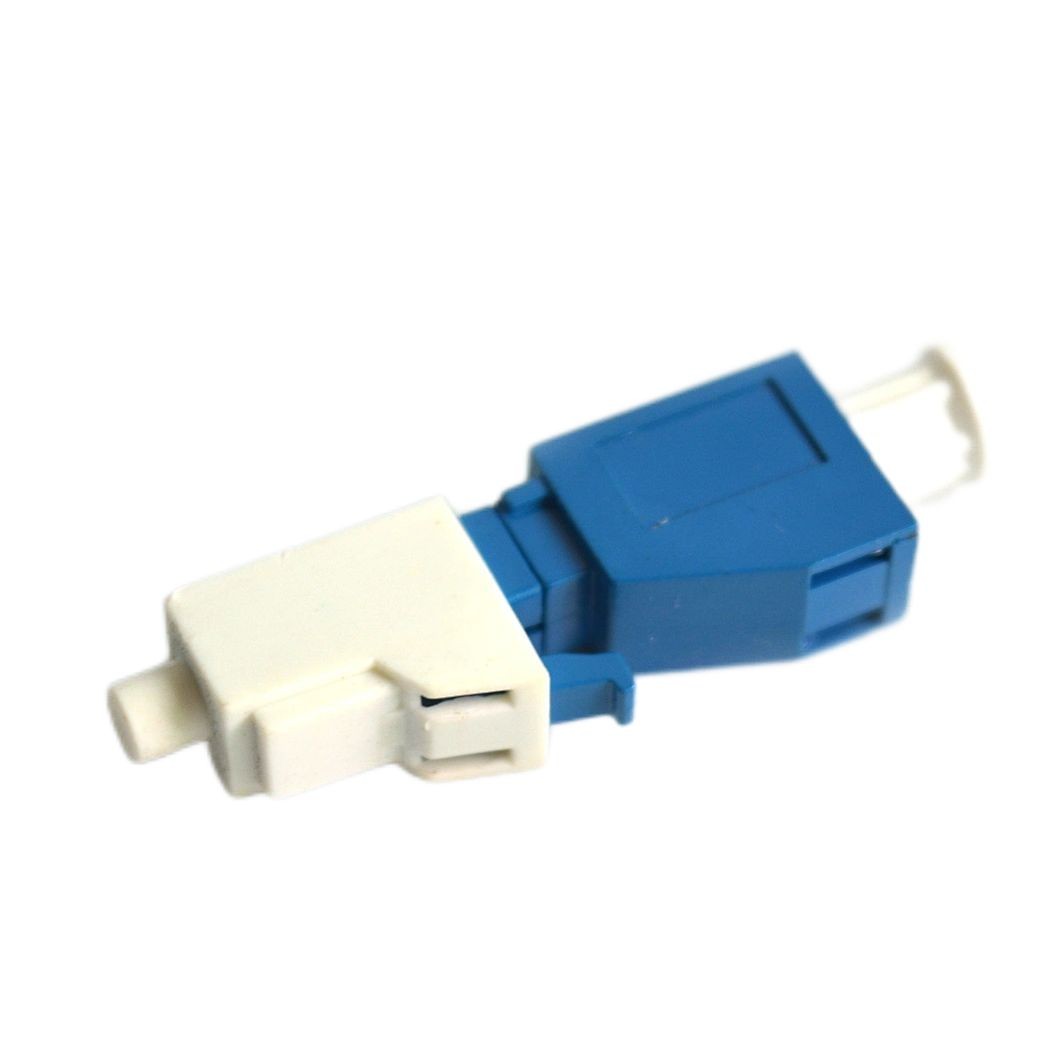

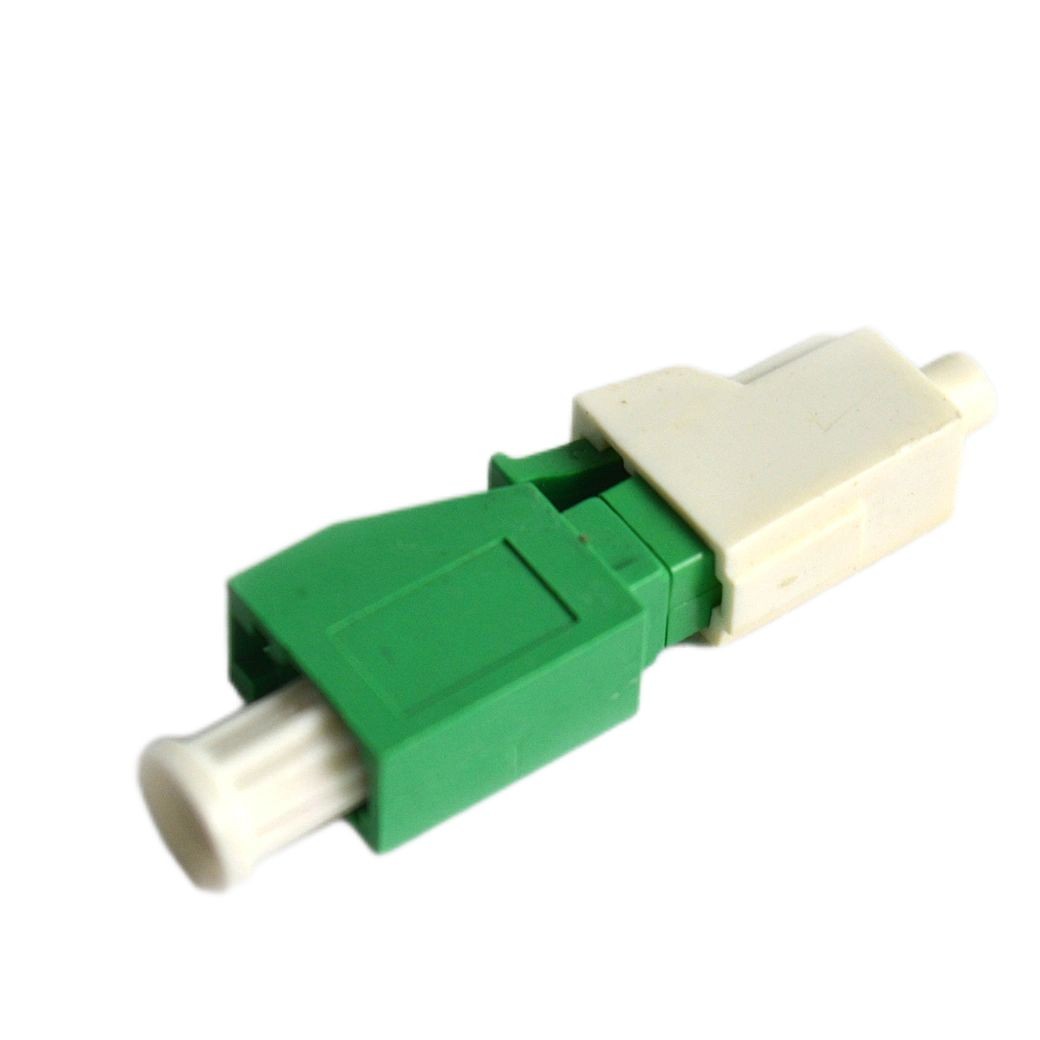

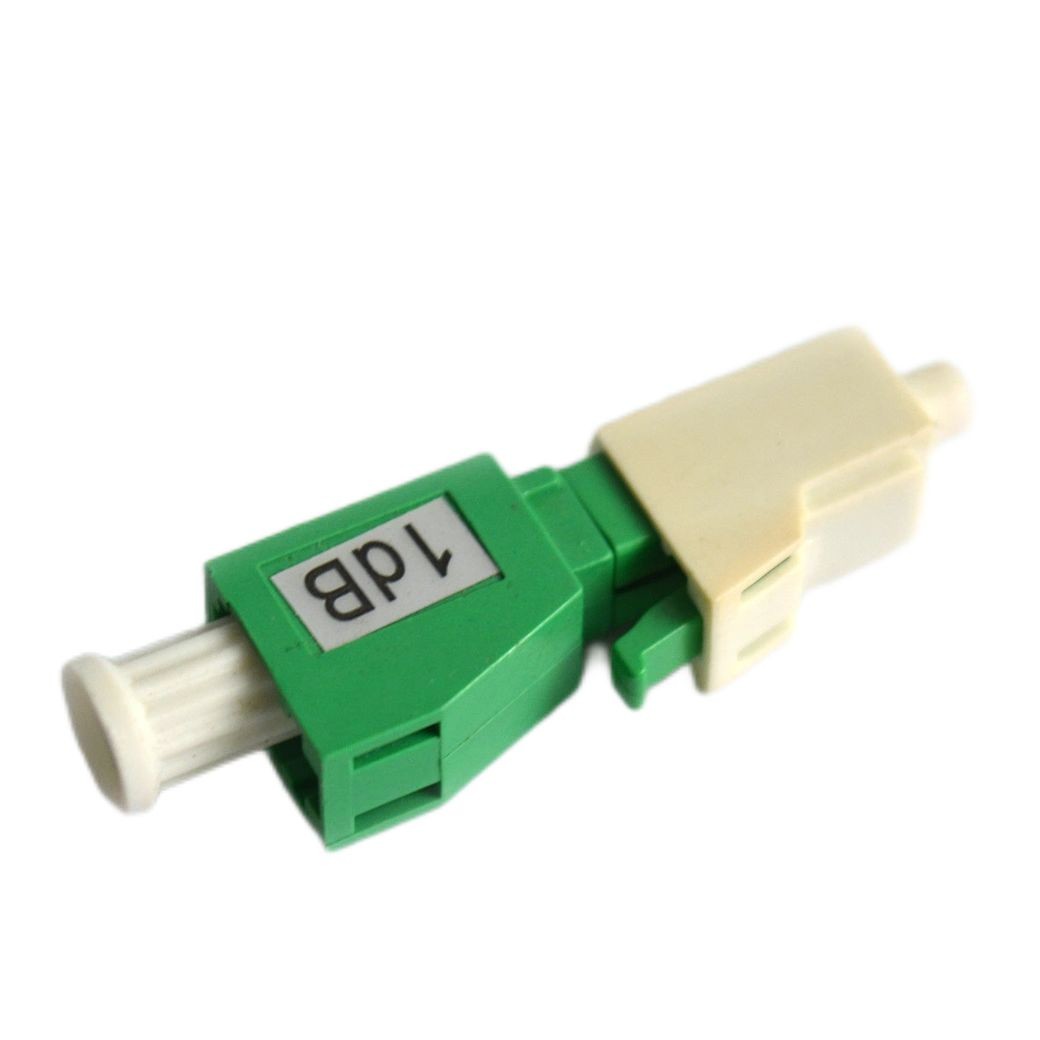

QYY- OM1 OM2 OM3 OM4 LC 20 DB 10db Fiber Optic Variable Attenuator
Features:
. Low insertion loss and back reflection
. Definable attenuation from 1dB to 30dB
. PC, UPC and APC polish types
. Available with FC, SC, ST and LC terminations
. Zirconia or Phosphor Bronze Sleeve
. Single mode, Multi-mode
. Various Types of Connectors FC,SC,ST,MU,LC,MTRJ,MPO
. Low Splicing Loss
Application：
. Fiber Optic Sensors
. Test & measurement
. DWDM applications
. Telecommunication Networks
. Local Area Network
. FTTH and FTTx
Specification:
|
Optical Performance |
M-F Plug Type |
F-F Adaptor Type |
|
Testing Wavelength(nm) |
SM: 1310nm/1550nm |
1310nm |
|
MM: 850nm/1300nm |
||
|
Attenuation Accuracy(dB) |
1-9dB; 0.5dB; 10-30dB; 10% of Attenuation Value |
|
|
Return Loss(dB) |
≥50dB (PC) |
≥50dB (PC) |
|
≥60dB (APC) |
≥60dB (APC) |
|
|
Input Power (Max.) (mW) |
300 |
|
|
Durability(dB) |
<0.2dB Typical, 1000 Matings |
|
|
Operating Temperature(°C) |
-40~+80 |
|
|
Storage Temperature(°C) |
-40~+85 |
|
Order Information:
|
Connector Type |
Application |
Wavelength |
Attenuation |
|
FC / SC/ ST/ LC/ MPO/ MU |
PC/ UPC/ APC |
1310nm/ 1550nm/ 1310/1550nm |
1, 2, 3, ….., 25db |
