Description

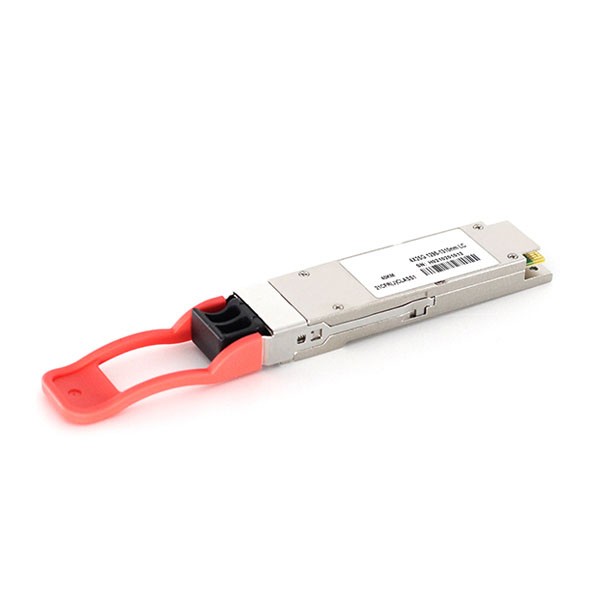

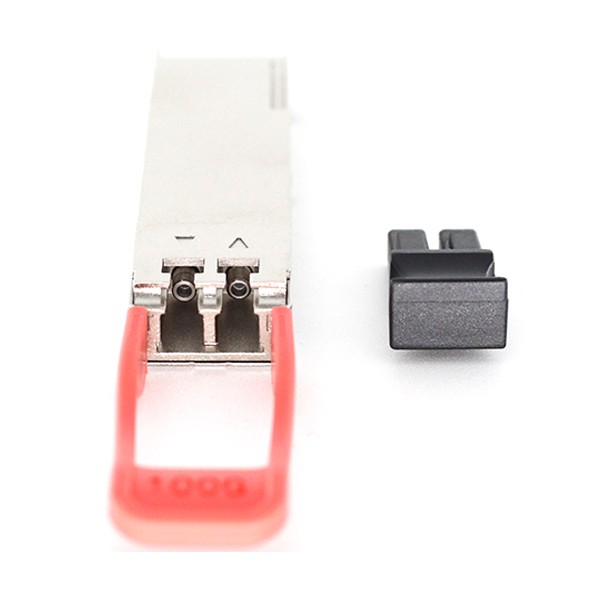

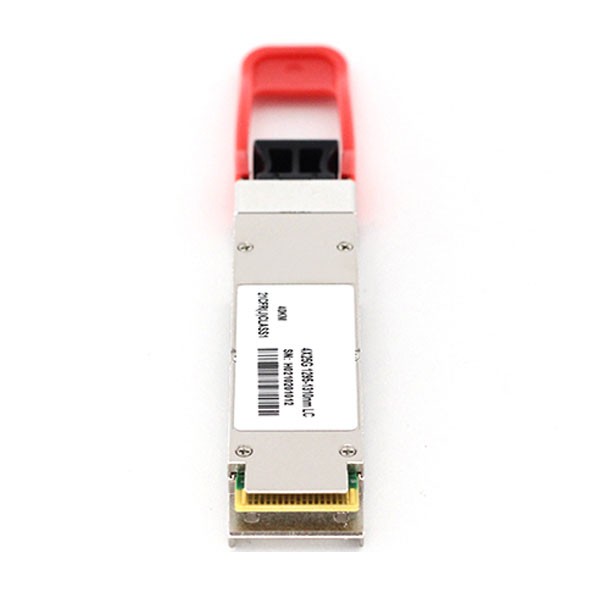

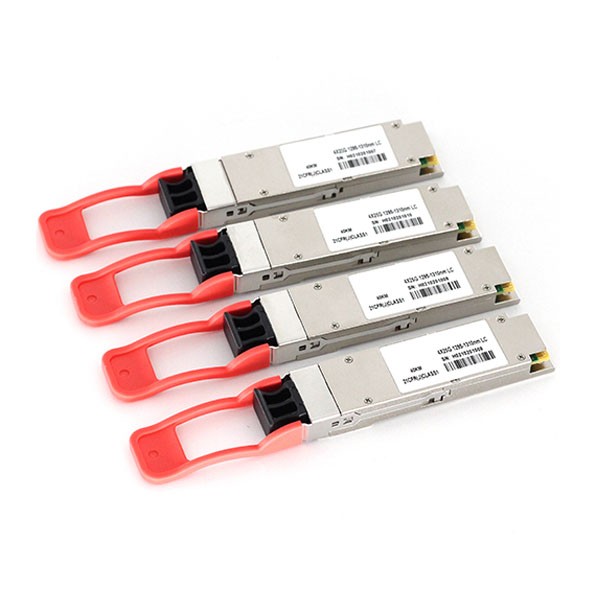

QYY- 100G QSFP28 ER4 Optical transceivers
Features:
. Compliant to Ethernet 100GBASE-ER4
. Supports 103.1Gb/s aggregate bit rate
. Transmitter: cooled 4x25Gb/s LAN WDM TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)
. Receiver: 4x25Gb/s APD ROSA
. Up to 40km reach for G.652 SMF
. Duplex LC optical receptacle
. 4x25G electrical interface (OIF CEI-28G-VSR)
. RoHS-10 compliant and lead-free
. Single +3.3V power supply
. Maximum power consumption 4.5W
. Case operating temperature
. Commercial: 0 ~ +70oC
. Extended: -10 ~ +80oC
. Industrial: -40 ~ +8
Specifications:
| QYY- 100GBASE-ER4 QSFP28 1310nm 40km DOM LC SMF Compatible with the following brand and more | |
| Cisco QSFP-100G-ER4L-S | Arista Networks QSFP-100G-ER4 |
| Juniper Networks 100GBASE-ER4 | Brocade 100 GBPS-ER4 |
| Dell QSFP28-100G-ER4 | Extreme Compatible 100GBASE-ER4 |
| HW 02311YXR | H3C QSFP-100G-ER4-SM1310 |
| Ciena XCVR-Q30V31 | Mellanox QSFP28-ER4-100G |
| Generic Compatible 100GBASE-ER4 | FS QSFP28-ER4-100G |
| Edge-Core ET7402-ER4 | Alcatel-Lucent QSFP28-100GE-ER4 |
| Avago QSFP28-ER4-100G | Allied Telesis QSFP28-ER4 |
| MRV QSFP28-100GE-ER4 | Chelsio SM100G-ER4 |
| D-Link DEM-Q28X40Q-ER4 | F5 Networks F5-UPG-QSFP28-ER4 |
| Fortinet FG-trAN-QSFP28-ER4 | Mikrotik Q28+31DLC40D |
| Palo Alto Networks PAN-100G-QSFP28-ER4 | |
| Check Point CPAC-tr-100ER-SSM160-QSFP28-C | |
| Support Customized 100GBASE-ER4 QSFP28 1310nm 40km DOM LC SMF Module | |
Applications:
. 100GBASE-ER4 Ethernet Links
. Infiniband QDR and DDR interconnects
. Client-side 100G Telecom connections
