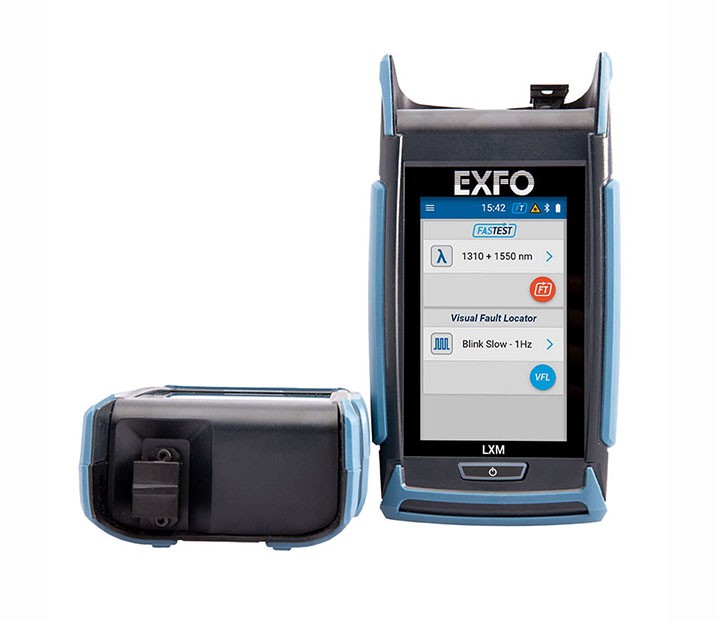

QYY- MPO Optical Loss Test Set (OLTS)-PXM/LXM

  • Model Number：PXM/LXM
  • Application: Optical Loss Tester for MPO . Fiber
    • Fiber Tester，Fiber Loss Tester，Fiber Test Tools
    Inquiry Send Email

    Description

    QYY- Conway C6 Welding ADC-02 Power Adapter


    The tester is available in 3 versions:

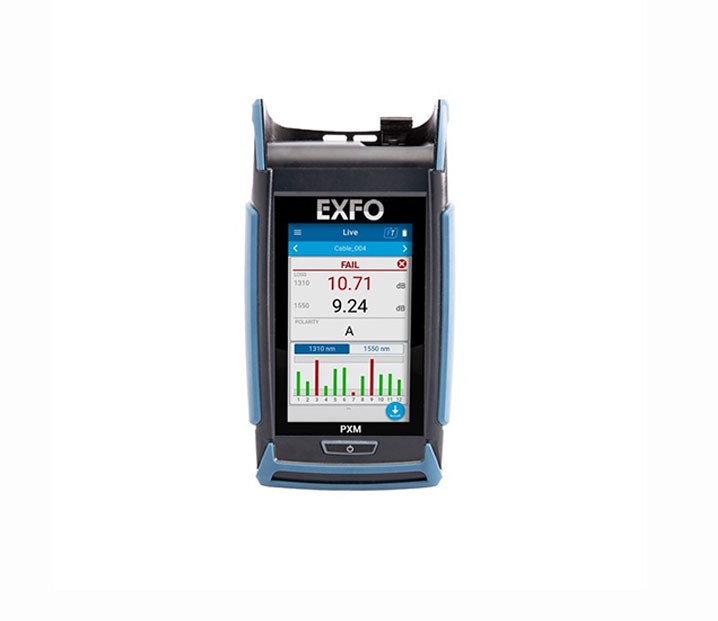

    1.PXM: Power Meter

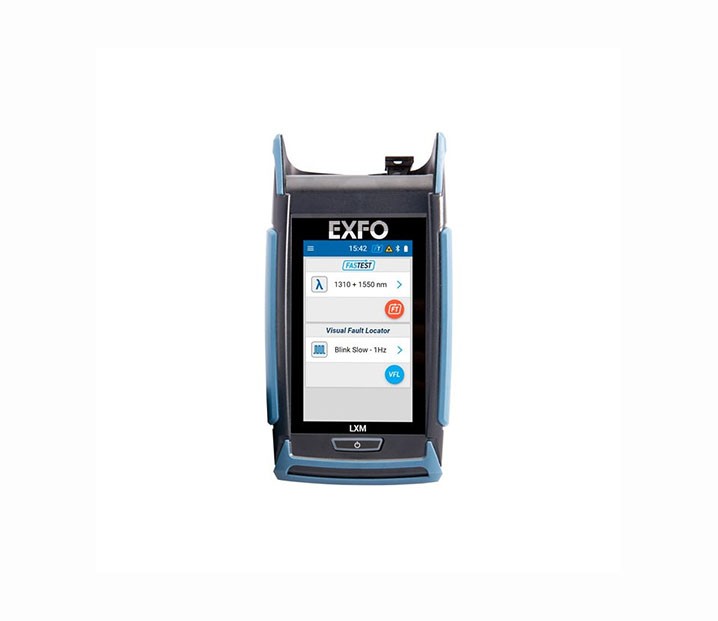

    		 2. LXM: Optical welding machine
    3.PXM/LXM: Combination power meter and optical welder for performing attenuation measurements


    Features:

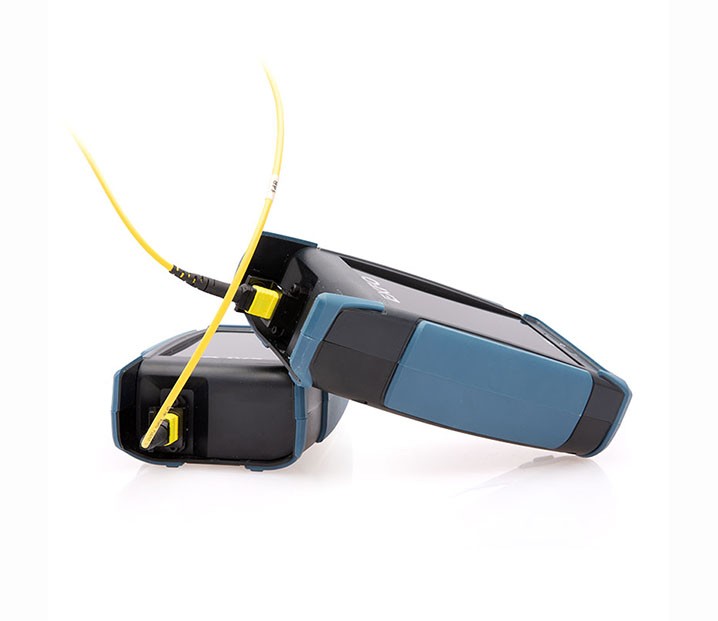

    1.4 inch color touch screen 2.Native MPO-12 connector on device
    3.State-of-the-art FasTesT™ performance: Test MPO-12 cables at 2 wavelengths in just 1 second 4.dual wavelength light source
    5.Insertion loss measurement 6.Polarity Type Verification
    7.Online Visual Fault Locator (VFL) for LXM Fiber Trace 8.Full results combined on one page

    Application
    1.data center 2.Central Office
    3.front end

    GENERAL SPECIFICATIONS
    Display 4-in touchscreen
    Display type Color display with capacitive touchscreen
    Dimensions 171 mm × 93 mm × 48 mm (6 3/4 in x 3 11/16 in x 1 7/8 in)
    Weight (with battery) 0.5 kg (1 lb)
    Data sharing Via USB interface to PC (reporting via FastReporter 3)
    Test speed Loss and polarity measurement for MPO-12 cable at 2 wavelengths in 1 second
    Temperature Operating –10 °C to 45 °C (14 °F to 113 °F)
    Storage –40 °C to 70 °C (–40 °F to158 °F)
